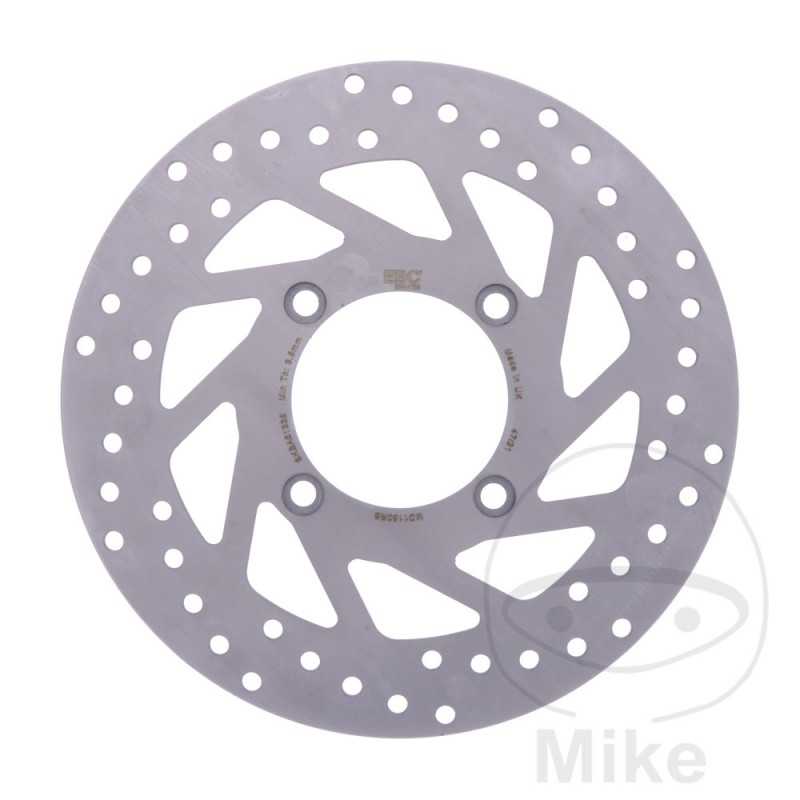

EBC right brake disc 760.96.54

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 88.2MM
CIRCLE SIZE: 110 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 1 BASTIDORES: VTM JC32A henceforth1E300001-VTM JC32A henceforth1E303901 2001
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 2 BASTIDORES: VTM JC32A henceforth2E300001-VTM JC32A henceforth2E399999 2002
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 3 BASTIDORES: VTM JC32A henceforth3E300001-VTM JC32A henceforth3E399999 2003
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 4 BASTIDORES: VTM JC32A henceforth4E030001-VTM JC32A henceforth4E099999 2004
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 5 BASTIDORES: VTM JC32A henceforth5E260001-VTM JC32A henceforth5E999999 2005
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 6 BASTIDORES: VTM JC32A henceforth6E270001-VTM JC32A henceforth6E999999 2006
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 7 BASTIDORES: VTM JC32A henceforth7E400002-VTM JC32A henceforth7E419999 2007
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 8 BASTIDORES: VTM JC32A 08E420001-- 2008
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A 9 BASTIDORES: VTM JC32A henceforth9E430001-VTM JC32A henceforth9E439999 2009
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC32A A BASTIDORES: VTM JC32A-AE440001-VTM JC32A-AE999999 2010
HONDA XL 125 V VARADERO 15 CV, 11 KW 2CIL. JC49A B BASTIDORES: ZDJC49A henceforthBF001001-- 2011-2013
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 2 BASTIDORES: VTM JC32A henceforth2E000001-VTM JC32A henceforth2E009999 2002
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 4 BASTIDORES: VTM JC32A henceforth4E030001-VTM JC32A henceforth4E099999 2004
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 5 BASTIDORES: VTM JC32A henceforth5E260001-VTM JC32A henceforth5E999999 2005
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 6 BASTIDORES: VTM JC32A henceforth6E270001-VTMJ C32A henceforth6E999999 2006
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 7 BASTIDORES: VTM JC32A henceforth7E400002-VTM JC32A henceforth7E419999 2007
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32A 8 BASTIDORES: VTM JC32A henceforth8E420001-- 2008
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32C 1 BASTIDORES: VTM JC32C henceforth1E000001-VTM JC32C 01E099999 2001
HONDA XL 125 V VARADERO 80 KM/H 15 CV, 11 KW 2CIL. JC32C 3 BASTIDORES: VTM JC32C henceforth3E000001-VTM JC32C henceforth3E099999 2003
