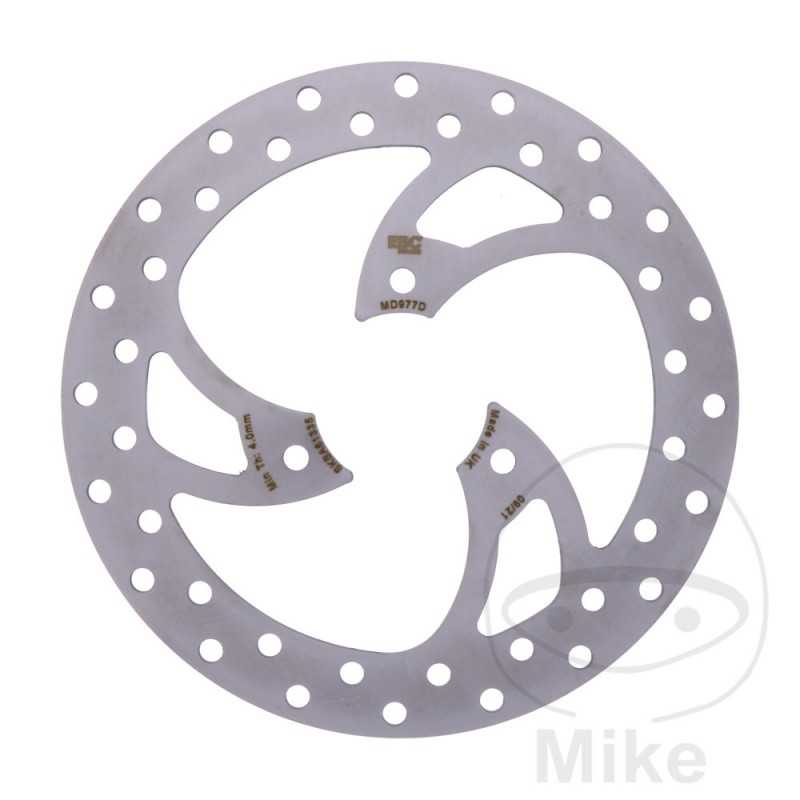

EBC brake disc for motorcycle SCOOTER 760.96.13

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads..

- Independent design.
OUTER DIAMETER: 226MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PEUGEOT ELYSEO 125 DT ADVANTAGE 12,2 CV, 9 KW 1CIL. - BASTIDORES: --- 2004
PEUGEOT ELYSEO 150 13,6 CV, 10 KW 1CIL. VGA G2AC G2A BASTIDORES: --- 2001-2003
PEUGEOT ELYSTAR 125 ADVANTAGE 12,2 CV, 9 KW 1CIL. VGA H2AB BASTIDORES: --- 2004-2005
PEUGEOT ELYSTAR 125 IE ABS 12,2 CV, 9 KW 1CIL. VGA H2AB H2 BASTIDORES: --- 2003-2005
PEUGEOT ELYSTAR 150 IE 14,3 CV, 10,5 KW 1CIL. VGA H2AC H2 BASTIDORES: --- 2004-2005
