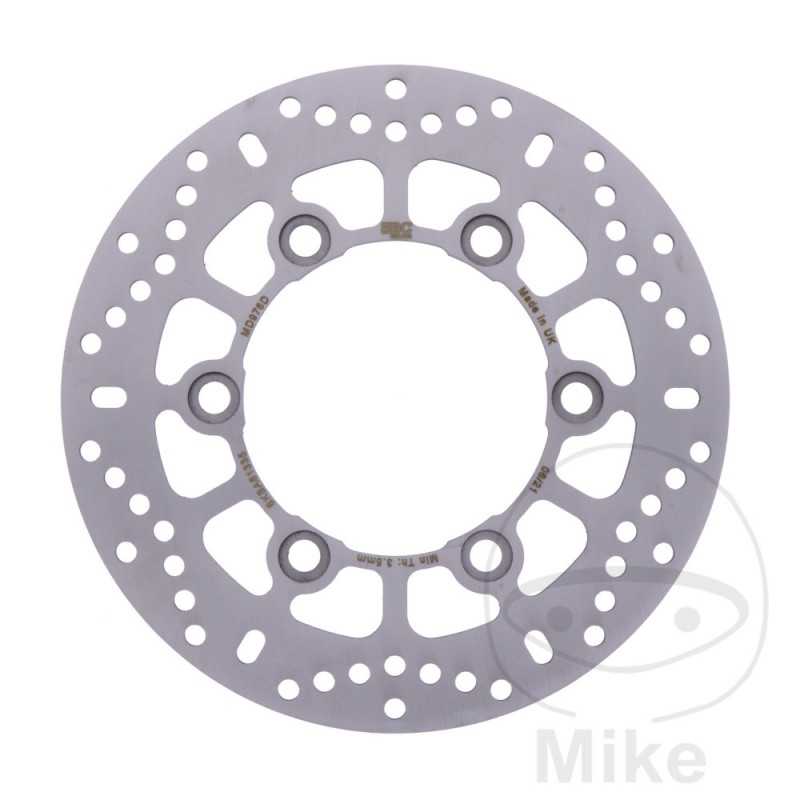

EBC brake disc for motorcycle SCOOTER 760.96.05

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 104.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K3 BASTIDORES: BP1111 henceforth0106870-BP1111 henceforth0111437 2003
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K4 BASTIDORES: BP1111 henceforth0111438-BP1111 henceforth0117546 2004
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K5 BASTIDORES: BP1111 henceforth0117547-BP1111 henceforth0130943 2005
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K6 BASTIDORES: BP1111 henceforth0130944-- 2006
SUZUKI UH 125 BURGMAN 15 CV, 11 KW 1CIL. BP1111 K2 BASTIDORES: BP1111 henceforth0100001-BP1111 henceforth0106869 2002
