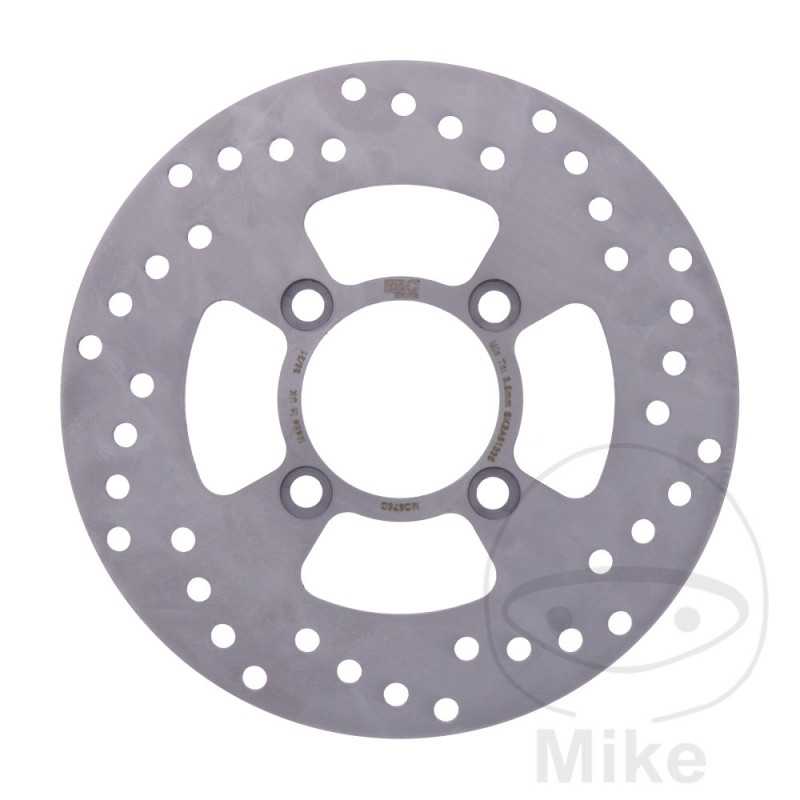

EBC brake disc for motorcycle SCOOTER 760.95.97

EBC brake discs. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Rigid brake disc.

- Made of HPSR laminated steel with low carbon content.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect it from corrosion.

- EBC recommends EBC Organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 64.3MM
CIRCLE SIZE: 86 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K3 BASTIDORES: BP1111 henceforth0106870-BP1111 henceforth0111437 2003
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K4 BASTIDORES: BP1111 henceforth0111438-BP1111 henceforth0117546 2004
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K5 BASTIDORES: BP1111 henceforth0117547-BP1111 henceforth0130943 2005
SUZUKI UH 125 BURGMAN 12,2 CV, 9 KW 1CIL. BP1111 K6 BASTIDORES: BP1111 henceforth0130944-- 2006
SUZUKI UH 125 BURGMAN 15 CV, 11 KW 1CIL. BP1111 K2 BASTIDORES: BP1111 henceforth0100001-BP1111 henceforth0106869 2002
