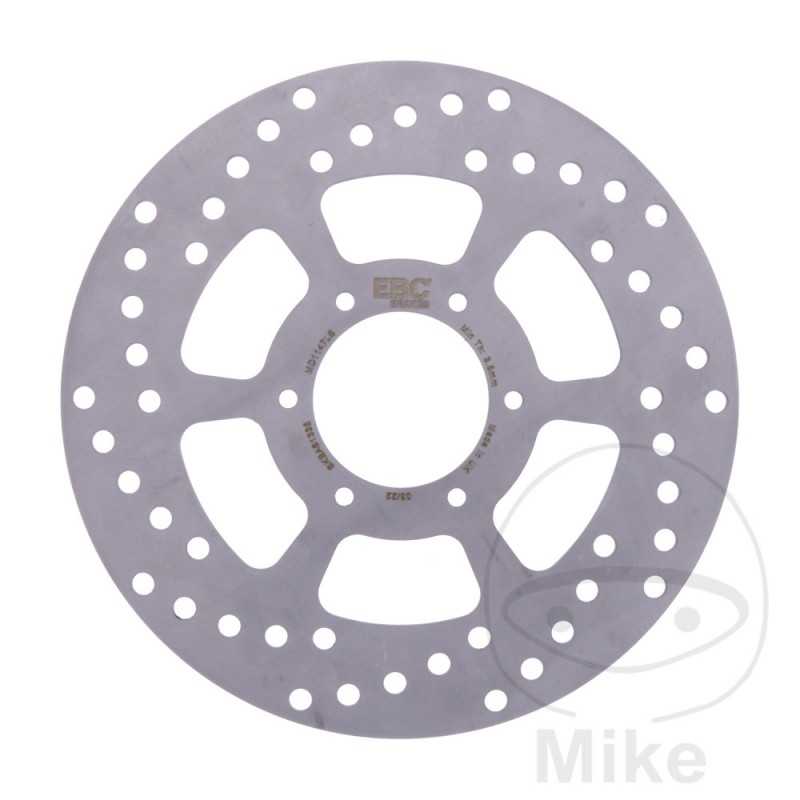

EBC Left brake disc 760.92.74

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CLR 125 Cityfly 11,4 CV, 8,4 kw 1cil. JD18A W Bastidores: VTM JD18A-WE100001-- 1998-2000
Honda CLR 125 Cityfly 80 Km/h 11,4 CV, 8,4 kw 1cil. JD18B W Bastidores: VTM JD18B-WE000001-- 1998-2000
Honda CRM 125 R 1cil. JC10A V Bastidores: ZDC JC10A-VF000001-- 1997-1998
Honda CRM 125 R 1cil. JC10A X Bastidores: ZDC JC10A-XF000001-- 1999
Honda CRM 125 R 1cil. JC10B V Bastidores: ZDC JC10B-VF000001-- 1997-1998
Honda CRM 125 R 1cil. JC10B X Bastidores: ZDC JC10B-XF000001-- 1999
Honda CRM 125 R 1cil. JC15A V Bastidores: ZDC JC15A-VF000001-- 1997-1998
Honda CRM 125 R 1cil. JC15A X Bastidores: ZDC JC15A-XF000001-- 1999
Honda CRM 125 R 1cil. JD10 L Bastidores: HI JD10 henceforth000001-- 1990
Honda CRM 125 R 1cil. JD10 M Bastidores: HI JD10 henceforth008302-- 1991
Honda CRM 125 R 1cil. JD10 N Bastidores: HI JD10 henceforth010238-- 1992
Honda CRM 125 R 1cil. JD10 P Bastidores: HI JD10 henceforth010238-- 1993
Honda CRM 125 R 1cil. JD10 R Bastidores: HI JD10 henceforth011567-- 1994-1996
Honda CRM 125 R 1cil. JD159 M Bastidores: HI JD159 henceforthF0000001-- 1991
Honda CRM 125 R 1cil. JD159 N Bastidores: ZDC JD159 henceforthF000412-- 1992
Honda CRM 125 R 1cil. JD159 P Bastidores: ZDC JD159 henceforthF000412-- 1993
Honda CRM 125 R 1cil. JD159 R Bastidores: ZDC JD159 henceforthF000522-- 1994-1996
Honda NX 125 Transcity 13 CV, 9,5 kw 1cil. JD12 K Bastidores: JD12 henceforth000001-JD12 henceforth999999 1989-1994
Honda NX 125 Transcity 13 CV, 9,5 kw 1cil. JD12 S Bastidores: --- 1995-1996
Honda NX 125 Transcity 13 CV, 9,5 kw 1cil. JD12 V Bastidores: JD12 henceforth13942-JD12-999999 1997-1998
