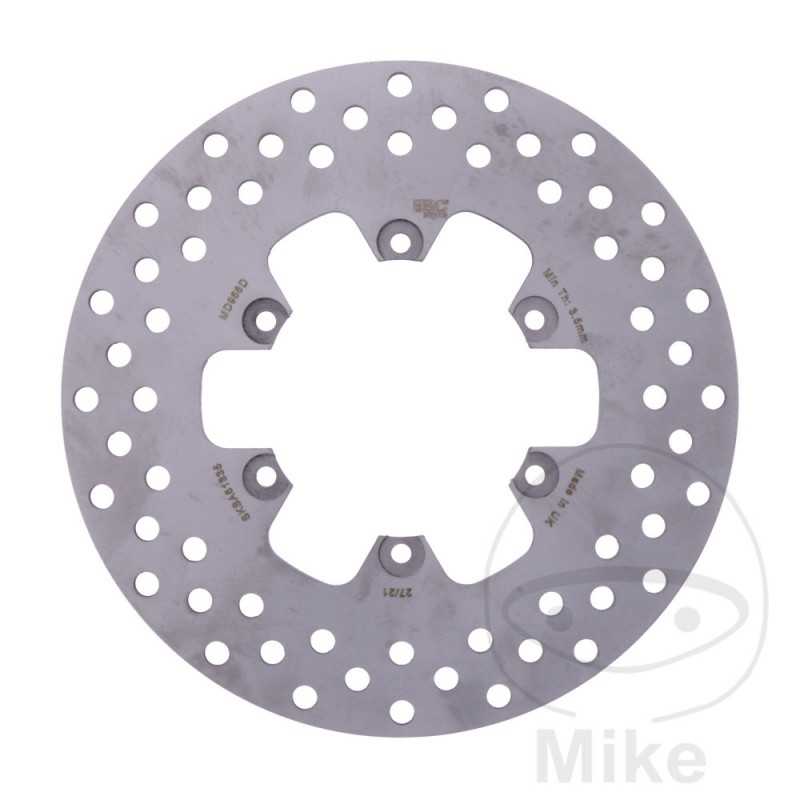

EBC brake disc for motorcycle SCOOTER 760.92.25

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 90.2MM
CIRCLE SIZE: 101 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Benelli Velvet 125 AC 10,9 CV, 8 kw 1cil. 00503CQ Bastidores: --- 2008-2011
Benelli Velvet 125 AC 10,9 CV, 8 kw 1cil. VJ125 Bastidores: --- 2012-2015
Benelli Velvet 125 LC 12 CV, 8,8 kw 1cil. M1000 Bastidores: --- 1999-2001
Benelli Velvet 125 LC Touring 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2002-2003
Benelli Velvet 150 AC 1cil. VJ325 Bastidores: --- 2008-2012
Benelli Velvet 250 LC 20 CV, 14,7 kw 1cil. M70000 Bastidores: --- 1999-2001
Benelli Velvet 250 LC Touring 20 CV, 14,7 kw 1cil. M70001P Bastidores: --- 2002-2003
Malaguti Madison 125 12,2 CV, 9 kw 1cil. 530000 Bastidores: --- 1999-2004
Malaguti Madison 125 R 12,2 CV, 9 kw 1cil. 690102 Bastidores: --- 2005-2006
Malaguti Madison 250 19 CV, 14 kw 1cil. 540000 Bastidores: --- 1999-2002
Malaguti Madison 250 RS 22,4 CV, 16,5 kw 1cil. 650000 Bastidores: --- 2007
Malaguti Phantom 125 Max 13,6 CV, 10 kw 1cil. 660000 Bastidores: --- 2007
Malaguti Phantom 250 Max 21,8 CV, 16 kw 1cil. 67004110 Bastidores: --- 2007
