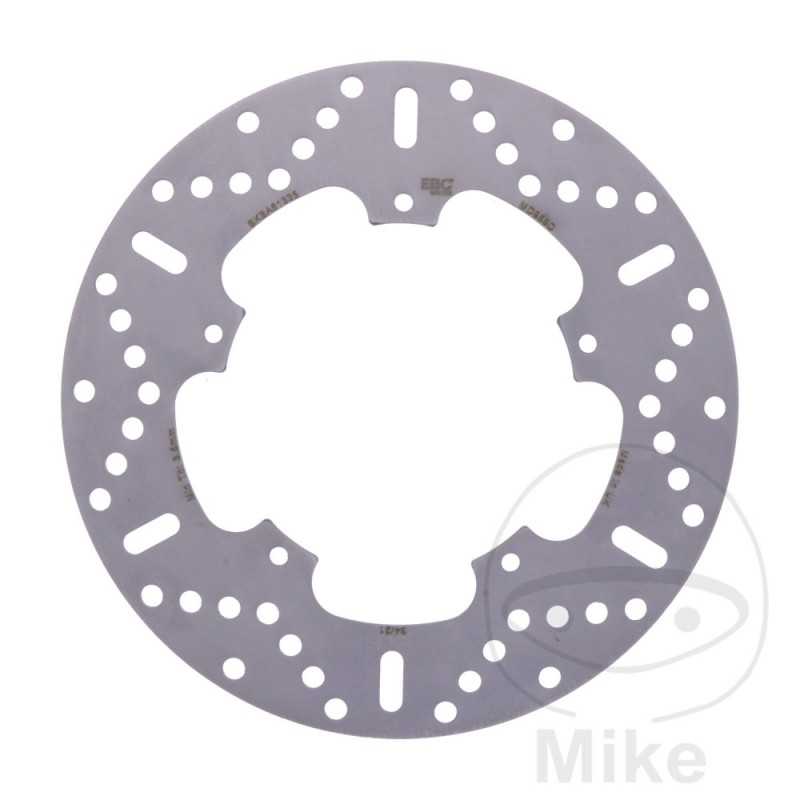

EBC brake disc for motorcycle SCOOTER 760.91.91
€73.18
€88.22
Save 17.05%Tax included
EBC brake discs. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of HPSR low carbon laminated steel.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.
- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Beverly 400 ie Tourer 33,3 CV, 24,5 kw 1cil. M34400 Bastidores: ZAPM34400 henceforth0001001-- 2012
Piaggio Drive 50 GT 4,6 CV, 3,4 kw 1cil. - Bastidores: --- 2016-2017
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C49100 Bastidores: ZAPC49100 henceforth0001001-- 2009-2016
Piaggio Liberty 50 4T 3,5 CV, 2,6 kw 1cil. C49200 Bastidores: ZAPC49200 henceforth0001001-- 2009-2015
Piaggio X9 125 15 CV, 11 kw 1cil. M2300001 Bastidores: ZAPM2300001 henceforth00001-- 2000-2003
Piaggio X9 125 Evolution 15 CV, 11 kw 1cil. M23000 Bastidores: ZAPM23000 henceforth0001001-- 2005-2007
Piaggio X9 125 Evolution 15 CV, 11 kw 1cil. M2300035 Bastidores: ZAPM23000 henceforth3500001-ZAPM23000 henceforth3999999 2004
Piaggio X9 250 18,4 CV, 13,5 kw 1cil. M23000 Bastidores: ZAPM23000 henceforth0001001-ZAPM23000 henceforth0999999 2000-2002
Piaggio XEvo 400 ie 33,3 CV, 24,5 kw 1cil. M52101 Bastidores: ZAPM52101 henceforth0001003-- 2007-2012
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Hard disk.
- Made of HPSR low carbon laminated steel.
- perforated brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.
- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Beverly 400 ie Tourer 33,3 CV, 24,5 kw 1cil. M34400 Bastidores: ZAPM34400 henceforth0001001-- 2012
Piaggio Drive 50 GT 4,6 CV, 3,4 kw 1cil. - Bastidores: --- 2016-2017
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C49100 Bastidores: ZAPC49100 henceforth0001001-- 2009-2016
Piaggio Liberty 50 4T 3,5 CV, 2,6 kw 1cil. C49200 Bastidores: ZAPC49200 henceforth0001001-- 2009-2015
Piaggio X9 125 15 CV, 11 kw 1cil. M2300001 Bastidores: ZAPM2300001 henceforth00001-- 2000-2003
Piaggio X9 125 Evolution 15 CV, 11 kw 1cil. M23000 Bastidores: ZAPM23000 henceforth0001001-- 2005-2007
Piaggio X9 125 Evolution 15 CV, 11 kw 1cil. M2300035 Bastidores: ZAPM23000 henceforth3500001-ZAPM23000 henceforth3999999 2004
Piaggio X9 250 18,4 CV, 13,5 kw 1cil. M23000 Bastidores: ZAPM23000 henceforth0001001-ZAPM23000 henceforth0999999 2000-2002
Piaggio XEvo 400 ie 33,3 CV, 24,5 kw 1cil. M52101 Bastidores: ZAPM52101 henceforth0001003-- 2007-2012
760.91.91
10 Items
Data sheet
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 240 MM
- CIRCLE MEASUREMENT
- 140 MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 140 MM
- VERSION
- RIGID
- THICKNESS
- 4 MM
