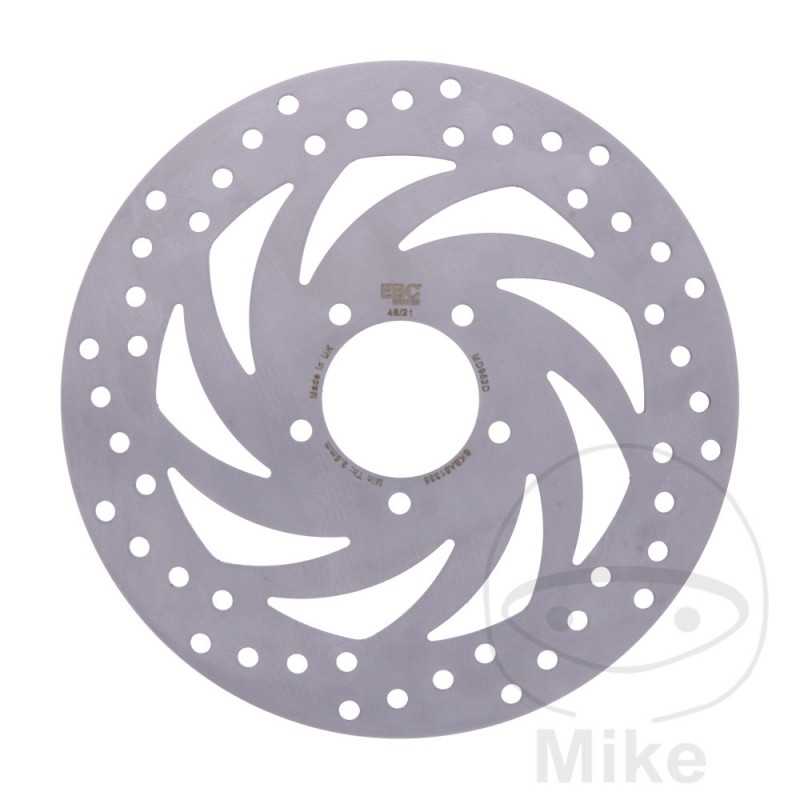

EBC brake disc for motorcycle SCOOTER 760.91.26

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 60.2MM
CIRCLE SIZE: 80.3 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Arrecife 500 Sprint 38 CV, 28 kw 1cil. - Bastidores: --- 2004-2006
Aprilia Atlantic 500 34 CV, 25 kw 1cil. PT001 Bastidores: --- 2002
Aprilia Atlantic 500 34 CV, 25 kw 1cil. PT003 Bastidores: --- 2003
Aprilia Atlantic 500 34 CV, 25 kw 1cil. VH000 Bastidores: --- 2004-2005
Aprilia Atlantic 500 38 CV, 28 kw 1cil. PT001 Bastidores: --- 2002
Aprilia Atlantic 500 38 CV, 28 kw 1cil. PT003 Bastidores: --- 2003
Aprilia Atlantic 500 38 CV, 28 kw 1cil. VH000 Bastidores: --- 2004-2005
Aprilia Atlantic 500 Sprint 34 CV, 25 kw 1cil. VL000 Bastidores: --- 2005
Aprilia Atlantic 500 Sprint 34 CV, 25 kw 1cil. VLA00 Bastidores: --- 2006-2010
Aprilia Atlantic 500 Sprint 38 CV, 28 kw 1cil. VL000 Bastidores: --- 2005
Aprilia Atlantic 500 Sprint 38 CV, 28 kw 1cil. VLA00 Bastidores: --- 2006-2010
Aprilia Scarabeo 125 12,2 CV, 9 kw 1cil. PCA00 Bastidores: --- 1999-2002
Aprilia Scarabeo 125 12,9 CV, 9,5 kw 1cil. TD000 Bastidores: --- 2003
Aprilia Scarabeo 125 12,9 CV, 9,5 kw 1cil. TD002 Bastidores: --- 2004
Aprilia Scarabeo 125 8 CV, 6 kw 1cil. PCA00 Bastidores: --- 1999-2002
Aprilia Scarabeo 125 ie Light 1cil. RBG00 Bastidores: --- 2009-2010
Aprilia Scarabeo 125 ie Light 1cil. RBL00 Bastidores: --- 2011-2012
Aprilia Scarabeo 125 Touring 12,2 CV, 9 kw 1cil. PCA00 Bastidores: --- 2000-2002
Aprilia Scarabeo 125 Touring 12,9 CV, 9,5 kw 1cil. TD000 Bastidores: --- 2003
Aprilia Scarabeo 125 Touring 12,9 CV, 9,5 kw 1cil. TD002 Bastidores: --- 2004
Aprilia Scarabeo 125 Touring 8 CV, 6 kw 1cil. PCA00 Bastidores: --- 2000-2002
Aprilia Scarabeo 150 1cil. PC000 Bastidores: --- 1999-2004
Aprilia Scarabeo 250 22 CV, 16 kw 1cil. TDB01 Bastidores: --- 2004-2006
Aprilia Scarabeo 250 ie 22,4 CV, 16,5 kw 1cil. VRB00/VRBB00 Bastidores: --- 2006-2010
Aprilia Scarabeo 400 ie 33,3 CV, 24,5 kw 1cil. VR000 Bastidores: --- 2006-2007
Aprilia Scarabeo 400 ie 33,3 CV, 24,5 kw 1cil. VR000/VRA00 Bastidores: --- 2008-2009
Aprilia Scarabeo 500 ie 34 CV, 25 kw 1cil. RT00 Bastidores: --- 2002-2005
Aprilia Scarabeo 500 ie 34 CV, 25 kw 1cil. VRE00 Bastidores: --- 2008-2012
Aprilia Scarabeo 500 ie 38 CV, 28 kw 1cil. RT00 Bastidores: --- 2002-2005
Aprilia Scarabeo 500 ie 39 CV, 29 kw 1cil. VRE00 Bastidores: --- 2008-2012
Aprilia Scarabeo 500 ie ABS 34 CV, 25 kw 1cil. RT00 Bastidores: --- 2002-2005
Aprilia Scarabeo 500 ie ABS 38 CV, 28 kw 1cil. RT00 Bastidores: --- 2002-2005
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB000 Bastidores: --- 2004-2006
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB002 Bastidores: --- 2007-2008
Aprilia Sport City 125 Cube 12,2 CV, 9 kw 1cil. VBE00 Bastidores: --- 2009-2011
Aprilia Sport City 125 Cube 15 CV, 11 kw 1cil. VBM00 Bastidores: --- 2012
Aprilia Sport City 200 18 CV, 13 kw 1cil. VBA00 Bastidores: --- 2006-2007
Aprilia Sport City 200 18 CV, 13 kw 1cil. VBA01 Bastidores: --- 2008
Aprilia Sport City 250 ie 22,4 CV, 16,5 kw 1cil. VBB00 Bastidores: --- 2007-2008
Aprilia Sport City 300 ie Cube 22 CV, 16,1 kw 1cil. VBL00 Bastidores: --- 2012-2013
Aprilia Sport City 300 ie Cube 23 CV, 17 kw 1cil. VBL00 Bastidores: --- 2009-2011
Derbi Rambla 125 15 CV, 11 kw 1cil. RA1A1A Bastidores: VTHRA1A1A8S001003-- 2008-2014
Derbi Rambla 250 ie 22,5 CV, 16,5 kw 1cil. RA1B1A Bastidores: VTHRA1B1A8S001004-- 2008-2010
Derbi Rambla 300 ie 22,5 CV, 16,5 kw 1cil. VTHRA1C Bastidores: --- 2010-2014
