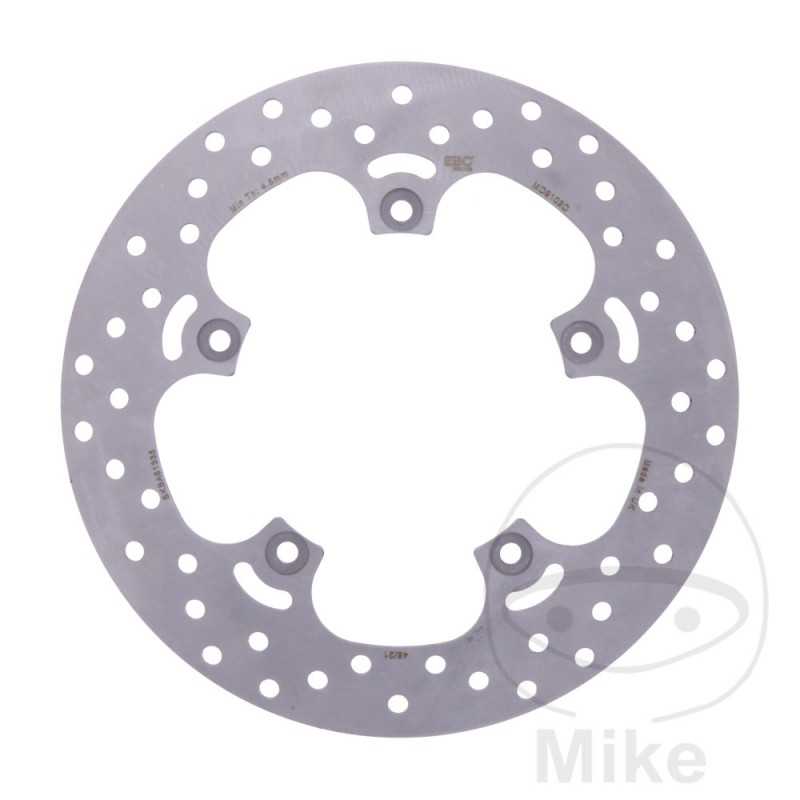

EBC brake disc for motorcycle SCOOTER 760.88.39

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MBK YP 125 R SKYCRUISER 14,1 CV, 10,4 KW 1CIL. - 1B92 BASTIDORES: --- 2006
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE321 1B91 BASTIDORES: SE321 henceforth00250-SE321 henceforth13650 2006
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE321 1B93 BASTIDORES: SE321 henceforth15786-- 2007
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE321 1B95 BASTIDORES: SE321 henceforth37945-- 2008
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE321 1B97 BASTIDORES: SE321 henceforth59054-- 2009
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE321 1B99 BASTIDORES: SE321 henceforth59262-- 2009
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE541 39D1 BASTIDORES: SE541 henceforth00001-- 2010
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE541 39D5 BASTIDORES: SE541 henceforth12191-- 2011
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE541 39DB BASTIDORES: SE541 henceforth23021-- 2012
YAMAHA YP 125 R X-MAX 14,1 CV, 10,4 KW 1CIL. SE641 2ABA BASTIDORES: SE641 henceforth02001-- 2013
YAMAHA YP 125 R X-MAX 14,3 CV, 10,55 KW 1CIL. SE681 2DM1 BASTIDORES: SE681 henceforth00090-- 2014
YAMAHA YP 125 R X-MAX 14,3 CV, 10,55 KW 1CIL. SE681 2DM7 BASTIDORES: SE681 henceforth05101-- 2014
YAMAHA YP 125 R X-MAX 14,3 CV, 10,55 KW 1CIL. SE681 2DM9 BASTIDORES: SE681 henceforth13101-- 2015
YAMAHA YP 125 R X-MAX 14,3 CV, 10,55 KW 1CIL. SE681 2DME BASTIDORES: SE681 henceforth19101-- 2016
YAMAHA YP 125 R X-MAX 14,3 CV, 10,55 KW 1CIL. SE686 2DM5 BASTIDORES: SE686 henceforth00101-- 2015
YAMAHA YP 125 R X-MAX SPORT 14 CV, 10,4 KW 1CIL. SE546 39DD BASTIDORES: SE546 henceforth01951-- 2012-2013
YAMAHA YP 125 R X-MAX SPORT 14,1 CV, 10,4 KW 1CIL. SE546 39D7 BASTIDORES: SE546 henceforth00001-- 2011
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE467 2ABE BASTIDORES: SE467 henceforth00101-- 2013
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE544 39D2 BASTIDORES: SE544 henceforth00301-- 2011-2012
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE644 2ABC BASTIDORES: SE644 henceforth02001-- 2013
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DM2 BASTIDORES: SE684 henceforth00097-- 2014
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DMA BASTIDORES: SE684 henceforth05101-- 2015
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DMG BASTIDORES: SE684 henceforth10201-- 2016
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE687 2DM6 BASTIDORES: SE687 henceforth00101-- 2015
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SEC31 2DMD BASTIDORES: SEC31 henceforth00101-- 2017
YAMAHA YP 125 RA X-MAX BUSINESS ABS 14,1 CV, 10,4 KW 1CIL. SE547 39D8 BASTIDORES: SE547 henceforth00001-- 2011
YAMAHA YP 125 RA X-MAX BUSINESS ABS 14,1 CV, 10,4 KW 1CIL. SE547 39DE BASTIDORES: SE547 henceforth02601-- 2012-2013
YAMAHA YP 250 R X-MAX 20 CV, 14,8 KW 1CIL. SG161 1C01 BASTIDORES: SG161 henceforth00020-- 2005
YAMAHA YP 250 R X-MAX 20 CV, 14,8 KW 1CIL. SG161 1C03 BASTIDORES: SG161 henceforth09989-- 2006
YAMAHA YP 250 R X-MAX 20 CV, 14,8 KW 1CIL. SG162 1C04 BASTIDORES: SG162 henceforth04420-- 2007
YAMAHA YP 250 R X-MAX 20 CV, 14,8 KW 1CIL. SG162 1C05 BASTIDORES: SG162 henceforth22011-SG162 henceforth31832 2008
YAMAHA YP 250 R X-MAX 20 CV, 14,8 KW 1CIL. SG162 1C06 BASTIDORES: SG162 henceforth47553-- 2009
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG221 37P3 BASTIDORES: SG221 henceforth16361-- 2011
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG221 37P6 BASTIDORES: SG221 henceforth26611-- 2012
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG257 1YS6 BASTIDORES: SG257 henceforth00101-- 2013
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG261 2DL1 BASTIDORES: SG261 henceforth00086-- 2014
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG261 2DL5 BASTIDORES: SG261 henceforth05101-- 2015
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG261 2DL8 BASTIDORES: SG261 henceforth10101-- 2016
YAMAHA YP 250 R X-MAX 20,4 CV, 15 KW 1CIL. SG265 2DL4 BASTIDORES: SG265 henceforth00101-- 2015
YAMAHA YP 250 R X-MAX 21,2 CV, 15,6 KW 1CIL. SG221 37P1 BASTIDORES: SG221 henceforth00001-- 2010
YAMAHA YP 250 R X-MAX BLACK MAX 21,2 CV, 15,6 KW 1CIL. SG162 1C07 BASTIDORES: SG162 henceforth47598-- 2009
YAMAHA YP 250 R X-MAX MOMODESIGN 20,4 CV, 15 KW 1CIL. SG257 1YS9 BASTIDORES: SG257 henceforth00106-- 2013-2015
YAMAHA YP 250 R X-MAX SPORT 20,4 CV, 15 KW 1CIL. SG224 37P5 BASTIDORES: SG224 henceforth00001-- 2011
YAMAHA YP 250 R X-MAX SPORT 20,4 CV, 15 KW 1CIL. SG224 37P8 BASTIDORES: SG224 henceforth03001-- 2012-2014
YAMAHA YP 250 RA IRON MAX ABS 20,4 CV, 15 KW 1CIL. SG266 2DLB BASTIDORES: SG266 henceforth00101-- 2016
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG222 37P4 BASTIDORES: SG222 henceforth00005-- 2011
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG222 37P7 BASTIDORES: SG222 henceforth04806-- 2012
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG252 1YS7 BASTIDORES: SG252 henceforth02001-- 2013
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL2 BASTIDORES: SG262 henceforth00091-- 2014
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL6 BASTIDORES: SG262 henceforth03101-- 2015
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL9 BASTIDORES: SG262 henceforth11101-- 2016
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH021 5RU1 BASTIDORES: SH021 henceforth00301-- 2004
