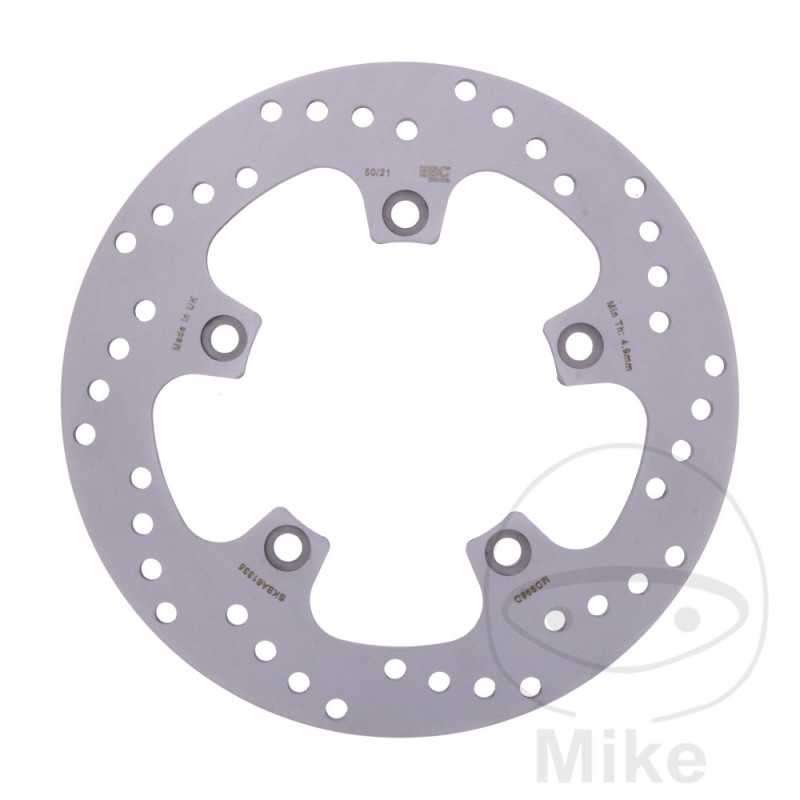

EBC brake disc for motorcycle SCOOTER 760.87.97

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 117.2MM
CIRCLE SIZE: 138 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K4 BASTIDORES: BU1321 henceforth0100001-BU1321 henceforth0105118 2004
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K5 BASTIDORES: BU1321 henceforth0105119-BU1321 henceforth0110445 2005
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K6 BASTIDORES: BU1321 henceforth0110454-BU1321 henceforth0117024 2006
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K7 BASTIDORES: BU1321 henceforth0117025-BU1321 henceforth0122999 2007
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K8 BASTIDORES: BU1321 henceforth0123000-BU1321 henceforth0129694 2008
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 K9 BASTIDORES: BU1321 henceforth0129695-BU1321 henceforth0133404 2009
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 L0 BASTIDORES: BU1321 henceforth0133405-BU1321 henceforth0136754 2010
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 L1 BASTIDORES: BU1321 henceforth0136755-BU1321 henceforth0139747 2011
SUZUKI AN 650 A BURGMAN EXECUTIVE ABS 56 CV, 41 KW 2CIL. WVBU1321 L2 BASTIDORES: BU1321 henceforth0139748-- 2012
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K4 BASTIDORES: BU1111 henceforth0110496-BU1111 henceforth0113618 2004
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K5 BASTIDORES: BU1111 henceforth0113619-BU1111 henceforth0113704 2005
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K6 BASTIDORES: BU1111 henceforth0113705-BU1111 henceforth0114139 2006
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K7 BASTIDORES: BU1111 henceforth0114140-BU1111 henceforth0114831 2007
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K8 BASTIDORES: BU1111 henceforth0114832-BU1111 henceforth0115219 2008
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 K9 BASTIDORES: BU1111 henceforth0115220-BU1111 henceforth0115723 2009
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 L0 BASTIDORES: BU1111 henceforth0115724-BU1111 henceforth0115803 2010
SUZUKI AN 650 BURGMAN 56 CV, 41 KW 2CIL. WVBU1111 L1 BASTIDORES: BU1111 henceforth0115804-BU1111 henceforth0115828 2011
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L3 BASTIDORES: BU1111 henceforth0115829-BU1111 henceforth0116931 2013
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L4 BASTIDORES: --- 2014
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L5 BASTIDORES: BU1111 henceforth0116932-- 2015
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L6 BASTIDORES: BU1111-G0100001-- 2016
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 54 CV, 40 KW 2CIL. WVBU1427 L8 BASTIDORES: BU1427-J0100001-BU1427-J0199999 2018-2021
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L3 BASTIDORES: BU1121 henceforth0100031-BU1121 henceforth0106168 2013
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L4 BASTIDORES: --- 2014
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L5 BASTIDORES: BU1121 henceforth0106169-- 2015
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L6 BASTIDORES: BU1121-G0100001-- 2016-2017
