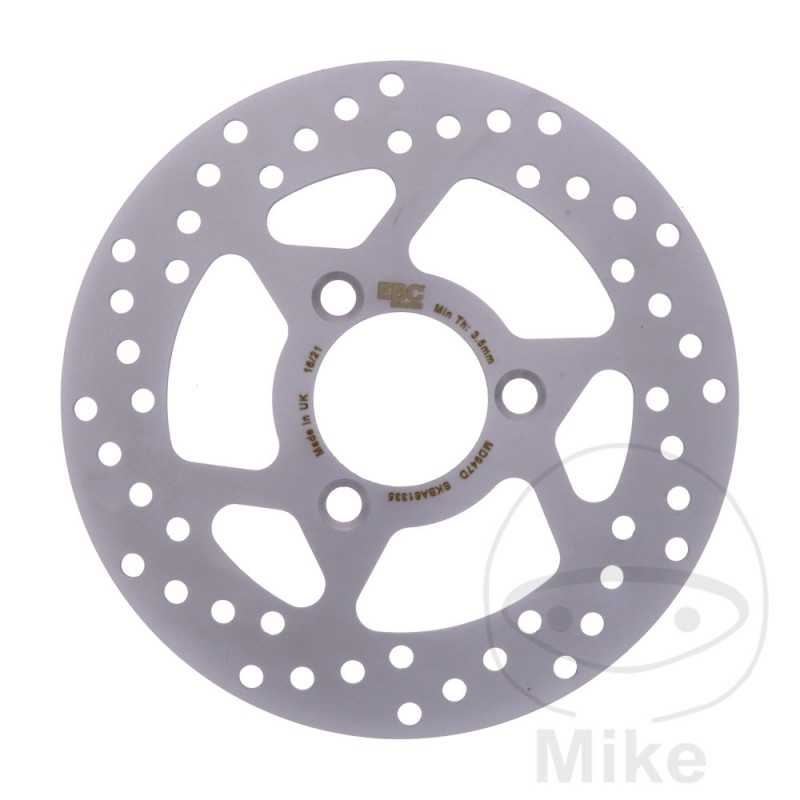

EBC brake disc for motorcycle SCOOTER 760.74.43

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 226MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PEUGEOT ELYSEO 100 8,7 CV, 6,4 KW 1CIL. VGA G2AAK G2A BASTIDORES: --- 2000-2001
PEUGEOT ELYSEO 100 9,1 CV, 6,7 KW 1CIL. VGA G2AA G2A BASTIDORES: --- 1998-1999
PEUGEOT ELYSEO 125 DD 12,2 CV, 9 KW 1CIL. VGA G2AB G2A BASTIDORES: --- 2001-2003
PEUGEOT ELYSEO 125 DT 12,2 CV, 9 KW 1CIL. VGA G2AB G2A BASTIDORES: --- 1998-2000
PEUGEOT ELYSTAR 50 ADVANTAGE 3,5 CV 2,6 KW 1CIL. VGA G1AAP BASTIDORES: --- 2006-2007
PEUGEOT ELYSTAR 50 TSDI SBC 4,6 CV, 3,4 KW 1CIL. VGA G1AAJ BASTIDORES: --- 2003-2007
