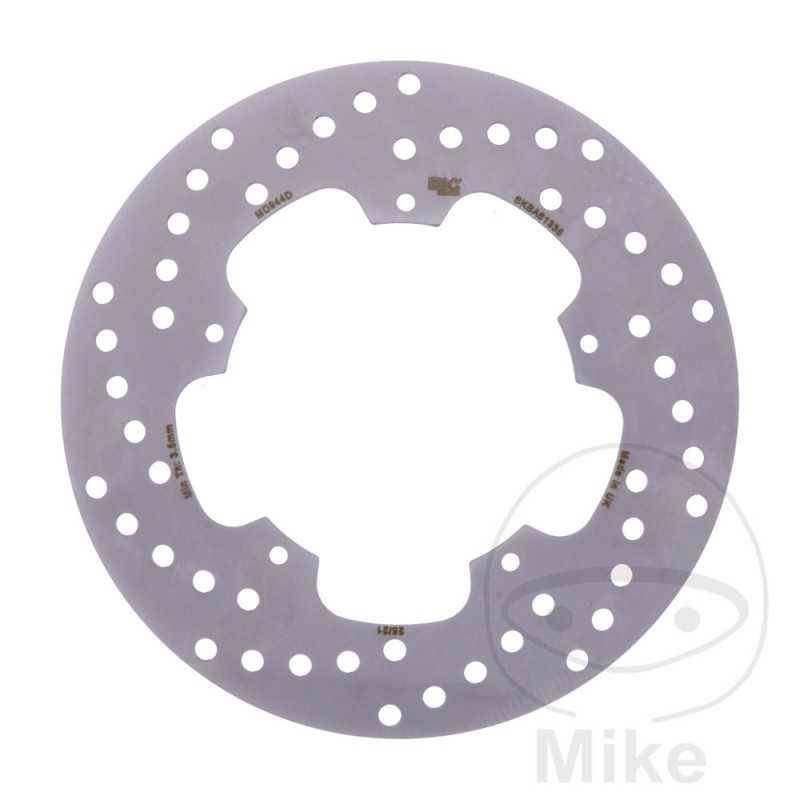

EBC brake disc for motorcycle SCOOTER 760.74.19

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DERBI GP1 125 15 CV, 11 KW 1CIL. PS1A1A BASTIDORES: VTHPS1A1A6G234508-- 2007-2008
DERBI GP1 250 22 CV, 15,6 KW 1CIL. PT1A1A BASTIDORES: VTHPT1A1A6G238118-- 2007-2008
GILERA DNA 125 15 CV, 11 KW 1CIL. M26000 BASTIDORES: ZAPM26000 henceforth0001001-ZAPM26000 henceforth0999999 2001-2003
GILERA DNA 180 18,6 CV, 13,7 KW 1CIL. M2600 BASTIDORES: ZAPM2600 henceforth01000001-- 2001-2003
GILERA DNA 50 4,8 CV, 3,5 KW 1CIL. C27000 BASTIDORES: ZAPC27000 henceforth0001001-ZAPC27000 henceforth0999999 2000-2002
GILERA DNA 50 GP EXPERIENCE 4,1 CV, 3 KW 1CIL. C270000 BASTIDORES: ZAPC270000-3000001-- 2006-2008
GILERA DNA 50 GP EXPERIENCE 4,8 CV, 3,5 KW 1CIL. C270000 BASTIDORES: ZAPC270000-1000001-ZAPC270000-1999999 2003
GILERA DNA 50 GP EXPERIENCE 4,8 CV, 3,5 KW 1CIL. C270000 BASTIDORES: ZAPC270000-2000001-ZAPC270000-2999999 2004
GILERA DNA 50 GP EXPERIENCE 4,8 CV, 3,5 KW 1CIL. C270000 BASTIDORES: ZAPC270000-3000001-- 2005
GILERA RUNNER 125 FX DD 2T 14,1 CV, 10,3 KW 1CIL. M07000 BASTIDORES: ZAPM07000 henceforth0001001-- 2000-2002
GILERA RUNNER 125 FX DD SP 2T 14,1 CV, 10,3 KW 1CIL. M07000 BASTIDORES: ZAPM07000 henceforth0001001-- 2000-2003
GILERA RUNNER 180 FXR DD 2T 19,2 CV, 14,1 KW 1CIL. M08000 BASTIDORES: ZAPM08000 henceforth0001001-- 2000-2002
GILERA RUNNER 180 FXR DD SP 2T 19,2 CV, 14,1 KW 1CIL. M08000 BASTIDORES: ZAPM08000 henceforth0001001-- 1999-2003
