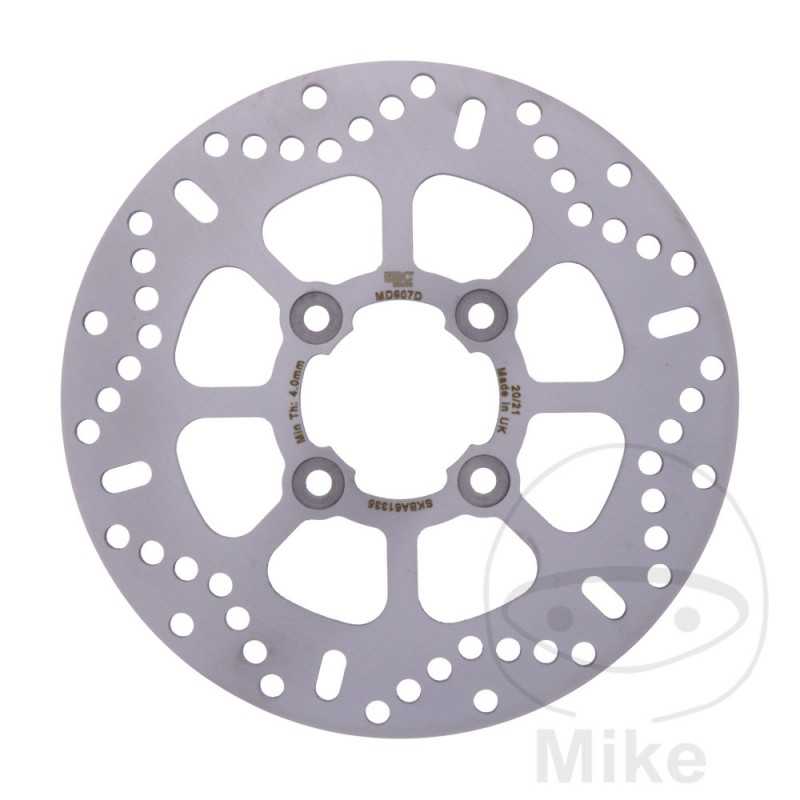

EBC brake disc for motorcycle SCOOTER 760.73.36

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of HPSR low carbon laminated steel.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic or EBC Double-H Sinterbremsklötze brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 54.2MM
CIRCLE SIZE: 76 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MBK XN 125 Doodo 11,8 CV, 8,7 kw 1cil. - 5MF6 Bastidores: --- 2002-2005
MBK XN 125 Doodo 11,8 CV, 8,7 kw 1cil. SE042 5MF2 Bastidores: SE042000 henceforth00133-- 2001
MBK YP 125 R (D) Skyliner 11,4 CV, 8,4 kw 1cil. SE062 5NR2 Bastidores: SE062000 henceforth00009-- 2001
MBK YP 125 R (D) Skyliner 11,4 CV, 8,4 kw 1cil. SE062 5NR9 Bastidores: SE062000 henceforth07633-- 2002
MBK YP 125 R (E) Skyliner 11,4 CV, 8,4 kw 1cil. - 5XL4 Bastidores: --- 2004
MBK YP 125 R (E) Skyliner 11,4 CV, 8,4 kw 1cil. SE067 5XL2 Bastidores: SE067000 henceforth00454-- 2003
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5D82 Bastidores: --- 2007
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5XL6 Bastidores: --- 2005
MBK YP 125 R (E) Skyliner 11,6 CV, 8,5 kw 1cil. - 5XL9 Bastidores: --- 2006
MBK YP 125 R Skyliner 11,4 CV, 8,4 kw 1cil. SE022 5DS7 Bastidores: SE022001 henceforth53102-- 1998-1999
MBK YP 125 R Skyliner 11,4 CV, 8,4 kw 1cil. SE022 5DSJ Bastidores: SE022004-352530-- 2000
Yamaha XN 125 Teos 11,8 CV, 8,7 kw 1cil. SE041 5MF1 Bastidores: SE041 henceforth00102-SE04 henceforth05872 2000-2001
Yamaha XN 125 Teos 11,8 CV, 8,7 kw 1cil. SE041 5MF5 Bastidores: SE041--- 2002-2003
Yamaha XN 150 Teos 1cil. SG071 5PR1 Bastidores: SG071 henceforth00101-- 2001-2002
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-300004-SE021-303903 1998
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-303955-- 1999
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DSH Bastidores: SE021-4305104-- 2000
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR1 Bastidores: SE061 henceforth01240-SE061 henceforth11939 2001
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR8 Bastidores: SE061 henceforth12137-SE061 henceforth15088 2002
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL5 Bastidores: SE066 henceforth17068-- 2005
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL9 Bastidores: SE066 henceforth31536-SE066 henceforth41966 2006
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D81 Bastidores: SE068 henceforth00231-- 2007
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D83 Bastidores: SE068 henceforth08242-- 2008
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE068 5D85 Bastidores: SE068 henceforth14156-- 2009
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL1 Bastidores: SE066 henceforth00113-SE066 henceforth06877 2003
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL3 Bastidores: SE066 henceforth06878-- 2004
Yamaha YP 125 R(E) Majesty Limited Edition 11,6 CV, 8,5 kw 1cil. SE066 5XL7 Bastidores: SE066 henceforth20007-- 2005
Yamaha YP 150 Majesty 1cil. SG051 5NP1 Bastidores: SG051 henceforth00006-- 2000
Yamaha YP 150 Majesty 1cil. SG081 5NS1 Bastidores: SG081 henceforth00006-- 2001
Yamaha YP 150 Majesty 1cil. SG081 5NS6 Bastidores: SG081 henceforth07057-- 2002
Yamaha YP 180 Majesty 1cil. SG121 5XM1 Bastidores: SG121 henceforth00002-- 2003
Yamaha YP 180 Majesty 1cil. SG121 5XM3 Bastidores: SG121 henceforth02560-- 2004
Yamaha YP 180 Majesty 1cil. SG121 5XM5 Bastidores: SG121 henceforth08185-- 2005
Yamaha YP 180 Majesty Limited Edition 1cil. SG121 5XM7 Bastidores: SG121 henceforth08870-- 2005
Yamaha YP 180 Majesty Limited Edition 1cil. SG121 5XM8 Bastidores: SG121 henceforth10565-- 2006
