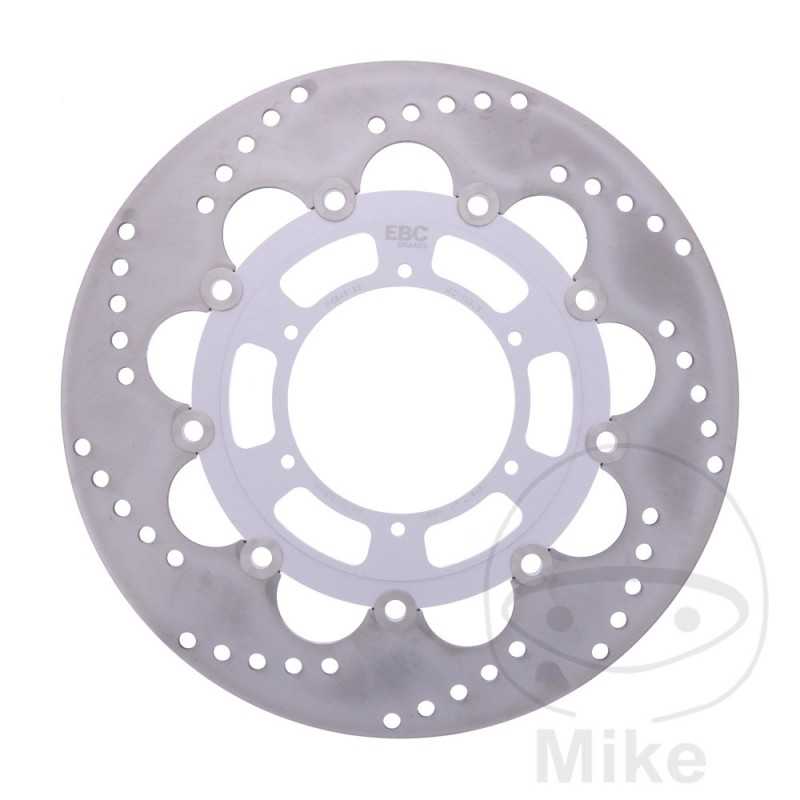

EBC Left brake disc 760.71.79

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTSIDE DIAMETER: 316MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
THICKNESS: 4.7MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA NSR 125 R 15 CV, 11 KW 1CIL. JC22A 1 BASTIDORES: ZDC JC22A henceforth1F240001-- 2001-2003
HONDA NSR 125 R 15 CV, 11 KW 1CIL. JC22A W BASTIDORES: ZDC JC22A henceforthWF200001-ZDC JC22A henceforthWF299999 1998
HONDA NSR 125 R 15 CV, 11 KW 1CIL. JC22A X BASTIDORES: ZDC JC22A henceforthXF220001-- 1999
HONDA NSR 125 R 15 CV, 11 KW 1CIL. JC22A Y BASTIDORES: ZDC JC22A henceforthYF230001-- 2000
HONDA NSR 125 R 80 KM/H 15 CV, 11 KW 1CIL. JC228 V BASTIDORES: ZDC JC228 henceforth0F008152-ZDC JC228 henceforth0F199999 1997
HONDA NSR 125 R 80 KM/H 15 CV, 11 KW 1CIL. JC22B 1 BASTIDORES: ZDC JC22B 01F240001-- 2001-2003
HONDA NSR 125 R 80 KM/H 15 CV, 11 KW 1CIL. JC22B W BASTIDORES: ZDC JC22B henceforthWF200001-ZDC JC22B henceforthWF299999 1998
HONDA NSR 125 R 80 KM/H 15 CV, 11 KW 1CIL. JC22B X BASTIDORES: ZDC JC22B henceforthXF220001-- 1999
HONDA NSR 125 R 80 KM/H 15 CV, 11 KW 1CIL. JC22B Y BASTIDORES: ZDC JC22B henceforthYF230001-- 2000
