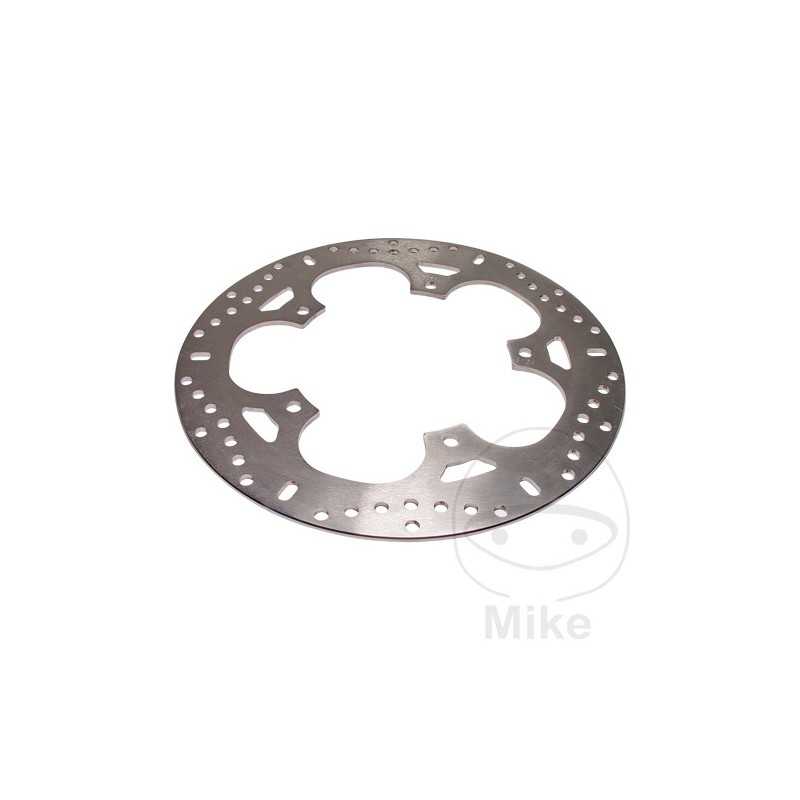

EBC Stainless steel brake disc for motorcycle SCOOTER 760.55.20

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 267MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA YP 400 A MAJESTY ABS 34 CV, 25 KW 1CIL. SH054 34B1 BASTIDORES: SH054 henceforth01737-- 2008
YAMAHA YP 400 A MAJESTY ABS 34 CV, 25 KW 1CIL. SH054 5RUJ BASTIDORES: SH054 henceforth00301-- 2007
YAMAHA YP 400 A MAJESTY ABS 34 CV, 25 KW 1CIL. SH056 34B3 BASTIDORES: SH056 henceforth00301-- 2009
YAMAHA YP 400 A MAJESTY ABS 34 CV, 25 KW 1CIL. SH056 34BB BASTIDORES: SH056 henceforth01281-- 2010
YAMAHA YP 400 A MAJESTY ABS 34 CV, 25 KW 1CIL. SH059 34BE BASTIDORES: SH059 henceforth00301-- 2011-2013
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH025 5RU6 BASTIDORES: SH025 henceforth00301-- 2005
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH025 5RUK BASTIDORES: SH025 henceforth13683-- 2006
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH051 5RUG BASTIDORES: SH051 henceforth00301-- 2007
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH051 5RUX BASTIDORES: SH051 henceforth09200-- 2008
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH055 34B2 BASTIDORES: SH055 henceforth00301-- 2009
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH055 34BA BASTIDORES: SH055 henceforth02981-- 2010
YAMAHA YP 400 MAJESTY 34 CV, 25 KW 1CIL. SH058 34BD BASTIDORES: SH058 henceforth00301-- 2011-2013
