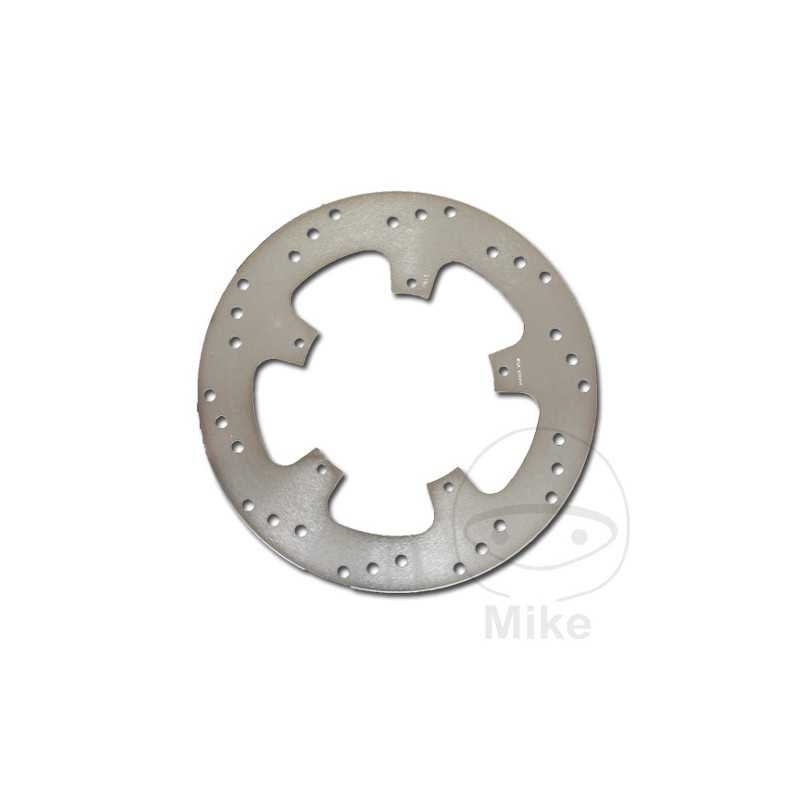

EBC Stainless steel brake disc for motorcycle SCOOTER 760.54.54
€51.58
€61.09
Save 15.57%Tax included
EBC HPSR brake disc, rigid version. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Brake ring machined in low carbon HPSR forged steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- perforated brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Gilera Nexus 250 ie 22,4 CV, 16,5 kw 1cil. M35400 Bastidores: ZAPM35400 henceforth0001001-- 2007-2008
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 GT RST 15 CV, 11 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth1001001-- 2005-2008
Piaggio Beverly 125 ie 15 CV, 11 kw 1cil. M69100 Bastidores: ZAPM69100 henceforth0001001-- 2010-2016
Piaggio Beverly 125 RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 Tourer 15 CV, 11 kw 1cil. M28901 Bastidores: ZAPM28901 henceforth0001001-- 2009-2010
Piaggio Beverly 200 19,3 CV, 14,2 kw 1cil. M2820 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2002-2004
Piaggio Beverly 200 GT 19,3 CV, 14,2 kw 1cil. M2820 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2002-2003
Piaggio Beverly 250 GT 21,2 CV, 15,6 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth0001001-ZAPM28500 henceforth0999999 2004-2005
Piaggio Beverly 250 GT 22 CV, 16 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth1000001-- 2006-2008
Piaggio Beverly 250 ie Cruiser 22 CV, 16 kw 1cil. M28802 Bastidores: ZAPM28802 henceforth0001001-- 2007-2008
Piaggio Beverly 250 ie Tourer 22,5 CV, 16,5 kw 1cil. M28801 Bastidores: ZAPM28801 henceforth0001001-- 2008-2009
Piaggio Beverly 400 ie 33,3 CV, 24,5 kw 1cil. M34300 Bastidores: ZAPM34300 henceforth0001001-- 2006-2007
Piaggio Beverly 400 ie Tourer 33,3 CV, 24,5 kw 1cil. M34400 Bastidores: ZAPM34400 henceforth0001001-- 2012
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth0001001-ZAPM34100 henceforth0999999 2003-2004
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth1000001-- 2005-2006
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34200 Bastidores: ZAPM34200 henceforth0001001-- 2007-2008
Piaggio Beverly 500 ie Cruiser 39,4 CV, 29 kw 1cil. M34500 Bastidores: ZAPM34500 henceforth0001001-- 2007-2012
Piaggio Carnaby 125 15 CV, 11 kw 1cil. M60200 Bastidores: ZAPM60200 henceforth0001001-- 2007-2011
Piaggio Carnaby 200 21 CV, 15 kw 1cil. M60100 Bastidores: ZAPM60100 henceforth0001001-- 2007
Piaggio Carnaby 250 ie 21,7 CV, 16 kw 1cil. M60300 Bastidores: ZAPM60300 henceforth0001001-- 2009-2010
Piaggio Carnaby 300 ie Cruiser 21,9 CV, 16,1 kw 1cil. M60400 Bastidores: ZAPM60400 henceforth0001001-- 2010-2011
Piaggio Carnaby 300 ie Cruiser 22,5 CV, 16,5 kw 1cil. M60400 Bastidores: ZAPM60400 henceforth0001001-- 2012-2013
Piaggio X8 125 Premium 15 CV, 11 kw 1cil. M36600 Bastidores: ZAPM36600 henceforth0001001-ZAPM36600 henceforth0003696 2007
Piaggio X8 150 Street 11,7 CV, 8,6 kw 1cil. M49200 Bastidores: ZAPM49200 henceforth0001001-- 2007
Piaggio X8 250 ie 21,2 CV, 15,6 kw 1cil. M36400 Bastidores: ZAPM36400 henceforth0001001-- 2007-2008
Piaggio X8 400 ie 33,3 CV, 24,5 kw 1cil. M52100 Bastidores: ZAPM52100 henceforth0001001-- 2007-2008
Piaggio X9 500 ie 39 CV, 28,5 kw 1cil. M27000 Bastidores: ZAPM2700001 henceforth00001-ZAPM2700003-999999 2001-2003
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.
The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.
- Brake ring machined in low carbon HPSR forged steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- perforated brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 125.2MM
CIRCLE SIZE: 140 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Gilera Nexus 250 ie 22,4 CV, 16,5 kw 1cil. M35400 Bastidores: ZAPM35400 henceforth0001001-- 2007-2008
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28100 Bastidores: ZAPM28100 henceforth0001001-ZAPM28100 henceforth0012187 2002
Piaggio Beverly 125 GT 14,8 CV, 10,9 kw 1cil. M28200 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2003
Piaggio Beverly 125 GT RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 GT RST 15 CV, 11 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth1001001-- 2005-2008
Piaggio Beverly 125 ie 15 CV, 11 kw 1cil. M69100 Bastidores: ZAPM69100 henceforth0001001-- 2010-2016
Piaggio Beverly 125 RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 Tourer 15 CV, 11 kw 1cil. M28901 Bastidores: ZAPM28901 henceforth0001001-- 2009-2010
Piaggio Beverly 200 19,3 CV, 14,2 kw 1cil. M2820 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2002-2004
Piaggio Beverly 200 GT 19,3 CV, 14,2 kw 1cil. M2820 Bastidores: ZAPM28200 henceforth0001001-ZAPM28200 henceforth0048263 2002-2003
Piaggio Beverly 250 GT 21,2 CV, 15,6 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth0001001-ZAPM28500 henceforth0999999 2004-2005
Piaggio Beverly 250 GT 22 CV, 16 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth1000001-- 2006-2008
Piaggio Beverly 250 ie Cruiser 22 CV, 16 kw 1cil. M28802 Bastidores: ZAPM28802 henceforth0001001-- 2007-2008
Piaggio Beverly 250 ie Tourer 22,5 CV, 16,5 kw 1cil. M28801 Bastidores: ZAPM28801 henceforth0001001-- 2008-2009
Piaggio Beverly 400 ie 33,3 CV, 24,5 kw 1cil. M34300 Bastidores: ZAPM34300 henceforth0001001-- 2006-2007
Piaggio Beverly 400 ie Tourer 33,3 CV, 24,5 kw 1cil. M34400 Bastidores: ZAPM34400 henceforth0001001-- 2012
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth0001001-ZAPM34100 henceforth0999999 2003-2004
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34100 Bastidores: ZAPM34100 henceforth1000001-- 2005-2006
Piaggio Beverly 500 ie 39,4 CV, 29 kw 1cil. M34200 Bastidores: ZAPM34200 henceforth0001001-- 2007-2008
Piaggio Beverly 500 ie Cruiser 39,4 CV, 29 kw 1cil. M34500 Bastidores: ZAPM34500 henceforth0001001-- 2007-2012
Piaggio Carnaby 125 15 CV, 11 kw 1cil. M60200 Bastidores: ZAPM60200 henceforth0001001-- 2007-2011
Piaggio Carnaby 200 21 CV, 15 kw 1cil. M60100 Bastidores: ZAPM60100 henceforth0001001-- 2007
Piaggio Carnaby 250 ie 21,7 CV, 16 kw 1cil. M60300 Bastidores: ZAPM60300 henceforth0001001-- 2009-2010
Piaggio Carnaby 300 ie Cruiser 21,9 CV, 16,1 kw 1cil. M60400 Bastidores: ZAPM60400 henceforth0001001-- 2010-2011
Piaggio Carnaby 300 ie Cruiser 22,5 CV, 16,5 kw 1cil. M60400 Bastidores: ZAPM60400 henceforth0001001-- 2012-2013
Piaggio X8 125 Premium 15 CV, 11 kw 1cil. M36600 Bastidores: ZAPM36600 henceforth0001001-ZAPM36600 henceforth0003696 2007
Piaggio X8 150 Street 11,7 CV, 8,6 kw 1cil. M49200 Bastidores: ZAPM49200 henceforth0001001-- 2007
Piaggio X8 250 ie 21,2 CV, 15,6 kw 1cil. M36400 Bastidores: ZAPM36400 henceforth0001001-- 2007-2008
Piaggio X8 400 ie 33,3 CV, 24,5 kw 1cil. M52100 Bastidores: ZAPM52100 henceforth0001001-- 2007-2008
Piaggio X9 500 ie 39 CV, 28,5 kw 1cil. M27000 Bastidores: ZAPM2700001 henceforth00001-ZAPM2700003-999999 2001-2003
760.54.54
10 Items
Data sheet
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 260 MM
- CIRCLE MEASUREMENT
- 140 MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 140 MM
- VERSION
- RIGID
- THICKNESS
- 4 MM
