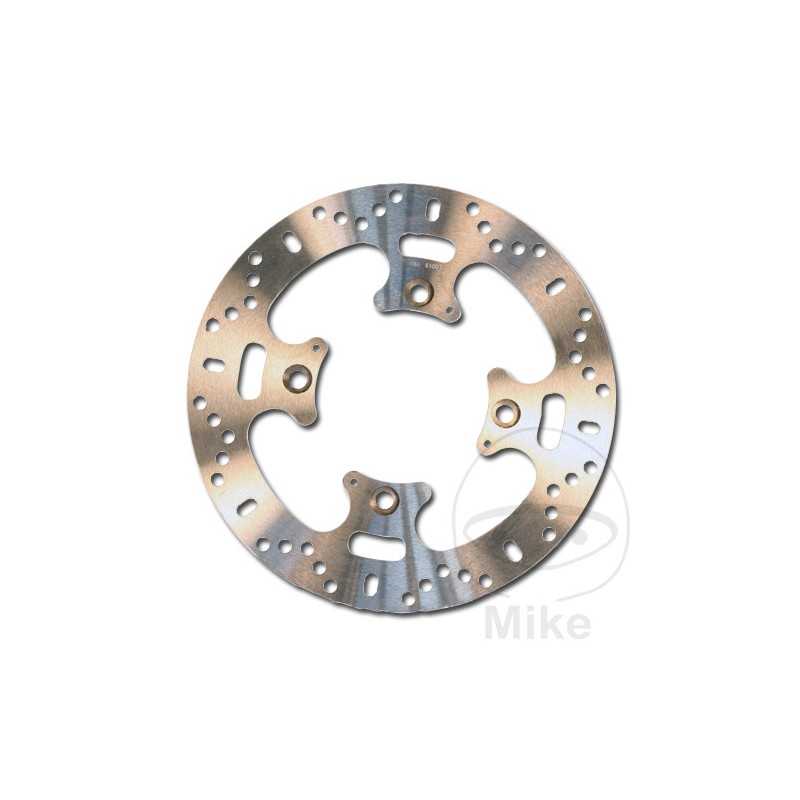

EBC Brake disc stainless steel 760.52.80

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.



The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.



- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 255MM
INSIDE DIAMETER: 103.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Speed Triple 1050 94 ABS 135 CV, 99 kw 3cil. 515NV Bastidores: SMTTPN115G --SMTTPN115G - 2015-2016
Triumph Speed Triple 1050 ABS 135 CV, 99 kw 3cil. 515NV Bastidores: SMTTPN115G --SMTTPN115G - 2014-2016
Triumph Speed Triple 1050 ABS 135/98 CV, 99/72 kw 3cil. 515NV Bastidores: SMTTPN115G - 461332-SMTTPN115G - 2011
Triumph Speed Triple 1050 ABS 135/98 CV, 99/72 kw 3cil. 515NV Bastidores: SMTTPN115G --SMTTPN115G - 2012-2013
Triumph Speed Triple 1050 R 94 ABS 135 CV, 99 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 735336 2015-2016
Triumph Speed Triple 1050 R ABS 135 CV, 99 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 2014
Triumph Speed Triple 1050 R ABS 135 CV, 99 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 735336 2015-2016
Triumph Speed Triple 1050 R ABS 135/98 CV, 99/72 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 2012-2013
Triumph Speed Triple 1050 R ABS 140 CV, 103 kw 3cil. NN01 Bastidores: 01 - 735337 henceforth1 - 2016
Triumph Sprint 1050 GT ABS 130 CV, 96 kw 3cil. 215ND Bastidores: SMTTF6885J --SMTTF6885J - 2010-2014
Triumph Sprint 1050 GT SE ABS 130 CV, 96 kw 3cil. - Bastidores: --- 2017
Triumph Sprint 1050 ST ABS 126 CV, 93 kw 3cil. 215NA Bastidores: SMTTF6915J - 440389-SMTTF6915J - 2010
Triumph Sprint 1050 ST ABS 126 CV, 93 kw 3cil. 215NA Bastidores: SMTTF6915J --SMTTF6915J - 2006-2008
Triumph Sprint 1050 ST ABS 126 CV, 93 kw 3cil. 215NA Bastidores: SMTTF6915J --SMTTF6915J - 440388 2009
Triumph Sprint 1050 ST ABS 98 CV, 72 kw 3cil. 215NA Bastidores: SMTTF6915J - 440389-SMTTF6915J - 2010
Triumph Sprint 1050 ST ABS 98 CV, 72 kw 3cil. 215NA Bastidores: SMTTF6915J --SMTTF6915J - 2006-2008
Triumph Sprint 1050 ST ABS 98 CV, 72 kw 3cil. 215NA Bastidores: SMTTF6915J --SMTTF6915J - 440388 2009
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 2013-2015
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 750469 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 - 750470-1 - 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 --1 - 2017-2018
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01A Bastidores: 1 --1 - 2018-2021
Triumph Tiger 800 ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2011-2014
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 - 674842-SMTTRE16B8 - 2015
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2011-2013
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2016-2017
Triumph Tiger 800 XC ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 674841 2014
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCA ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE18B8 --SMTTRE18B8 - 855531 2015-2016
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCA ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XCA ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCX ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 2015
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCX ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XCX ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XCX Low ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2019
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE16B8 --SMTTRE16B8 - 855531 2016
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XCX Low ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2019
Triumph Tiger 800 XCX Low ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 2015
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 855531 2016
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XR ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 2015
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE49B8 --SMTTRE49B8 - 855531 2016
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XR ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XR ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE17B8 --SMTTRE17B8 - 855531 2015-2016
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRT ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE17B8 --SMTTRE17B8 - 855531 2015-2016
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRT ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRT ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2015
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRX ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2015
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRX ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRX ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. C302 Bastidores: --- 2018
Triumph Tiger 800 XRX Low ABS 48 CV, 35 kw 3cil. C302A Bastidores: --- 2018-2020
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. A082 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 855531 2016
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. C301 Bastidores: 1 --1 - 2018
Triumph Tiger 800 XRX Low ABS 95 CV, 70 kw 3cil. C301A Bastidores: 1 --1 - 2018-2020
Triumph Tiger 800 XRX Low ABS 95/48 CV, 70/35 kw 3cil. C201 Bastidores: 1 - 855532-1 - 2017
Triumph Tiger 900 ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
Triumph Tiger 900 ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020
Triumph Tiger 900 GT ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
Triumph Tiger 900 GT ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020
Triumph Tiger 900 GT Low ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
Triumph Tiger 900 GT Low ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020
Triumph Tiger 900 GT Pro ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
Triumph Tiger 900 GT Pro ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020
Triumph Tiger 900 Rally ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020-2022
Triumph Tiger 900 Rally ABS 95 CV, 70 kw 3cil. C701 Bastidores: --- 2022
Triumph Tiger 900 Rally ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020-2021
Triumph Tiger 900 Rally Pro ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020-2022
Triumph Tiger 900 Rally Pro ABS 95 CV, 70 kw 3cil. C701 Bastidores: --- 2022
Triumph Tiger 900 Rally Pro ABS 95 CV, 70 kw 3cil. C701 Bastidores: 1 --1 - 2020-2021
