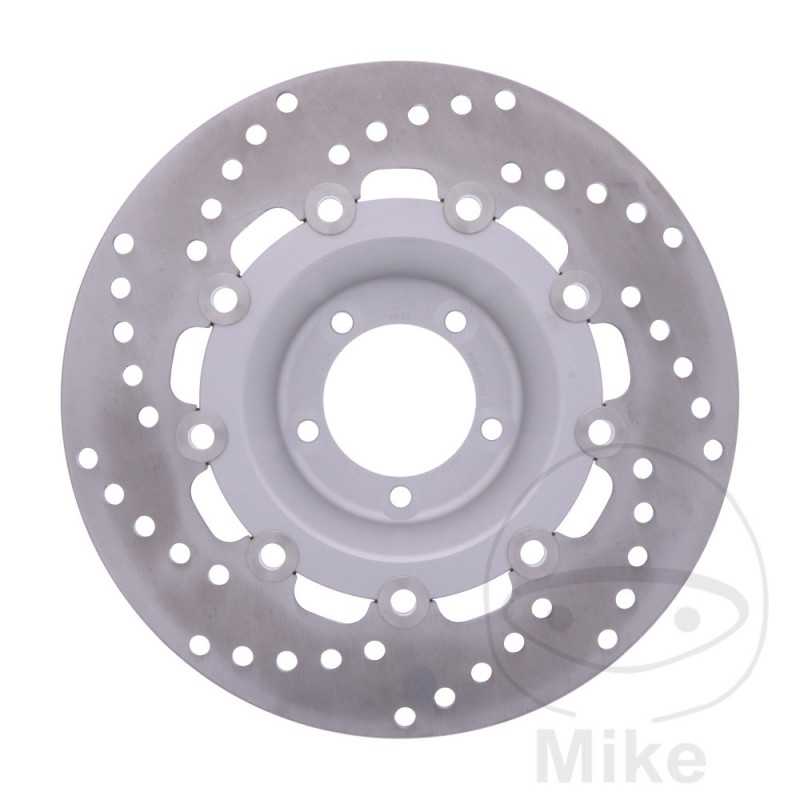

EBC Left brake disc 760.47.96

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 79 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.7MM
PADDING: 47.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 100 CS 70 CV, 51 KW 2CIL. 247 0426 BASTIDORES: 6 135 001-6 140 000 1980-1984
BMW R 100 LLANTA DE RADIOS 67 CV, 49 KW 2CIL. 247 0425 BASTIDORES: 6 035 001-6 040 000 1981-1984
BMW R 100 LLANTA DE RADIOS 67 CV, 49 KW 2CIL. 247 0425 BASTIDORES: 6 400 001-6 405 000 1981-1984
BMW R 45 N 27 CV, 20 KW 2CIL. 248 0352 BASTIDORES: 6 320 001-6 322 488 1978
BMW R 45 N 27 CV, 20 KW 2CIL. 248 0352 BASTIDORES: 6 322 489-6 326 598 1979
BMW R 45 N 27 CV, 20 KW 2CIL. 248 0352 BASTIDORES: 6 326 599-6 329 475 1980
BMW R 45 N 27 CV, 20 KW 2CIL. 248 0355 BASTIDORES: 6 260 001-6 266 303 1981-1985
BMW R 45 S 35 CV, 26 KW 2CIL. 248 0351 BASTIDORES: 6 300 001-6 302 764 1978
BMW R 45 S 35 CV, 26 KW 2CIL. 248 0351 BASTIDORES: 6 302 765-6 305 582 1979
BMW R 45 S 35 CV, 26 KW 2CIL. 248 0351 BASTIDORES: 6 305 583-6 306 430 1980
BMW R 45 S 35 CV, 26 KW 2CIL. 248 0354 BASTIDORES: 6 270 001-6 275 540 1981-1985
BMW R 65 1SERIE 45 CV, 33 KW 2CIL. 248 0353 BASTIDORES: 6 340 001-6 342 274 1978
BMW R 65 1SERIE 45 CV, 33 KW 2CIL. 248 0353 BASTIDORES: 6 342 275-6 346 334 1979
BMW R 65 1SERIE 45 CV, 33 KW 2CIL. 248 0353 BASTIDORES: 6 346 335-6 349 336 1980
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 310 001-6 311 755 1980
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 311 756-6 316 902 1981
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 316 903-6 410 483 1982
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 410 484-6 412 338 1983
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 412 339-6 413 039 1984
BMW R 65 2SERIE 50 CV, 37 KW 2CIL. 248 0358 BASTIDORES: 6 413 040-6 413 588 1985
BMW R 65 LS 50 CV, 37 KW 2CIL. 248 0359 BASTIDORES: 6 350 001-6 351 657 1981
BMW R 65 LS 50 CV, 37 KW 2CIL. 248 0359 BASTIDORES: 6 351 658-6 353 985 1982
BMW R 65 LS 50 CV, 37 KW 2CIL. 248 0359 BASTIDORES: 6 353 986-6 354 307 1983
BMW R 65 LS 50 CV, 37 KW 2CIL. 248 0359 BASTIDORES: 6 354 308-6 354 565 1984
BMW R 65 LS 50 CV, 37 KW 2CIL. 248 0359 BASTIDORES: 6 354 566-6 354 679 1985
BMW R 80 ST 50 CV, 37 KW 2CIL. 247 0347 BASTIDORES: 6 054 001-6 055 857 1982
BMW R 80 ST 50 CV, 37 KW 2CIL. 247 0347 BASTIDORES: 6 055 858-6 058 365 1983
BMW R 80 ST 50 CV, 37 KW 2CIL. 247 0347 BASTIDORES: 6 058 366-6 058 984 1984-1985
