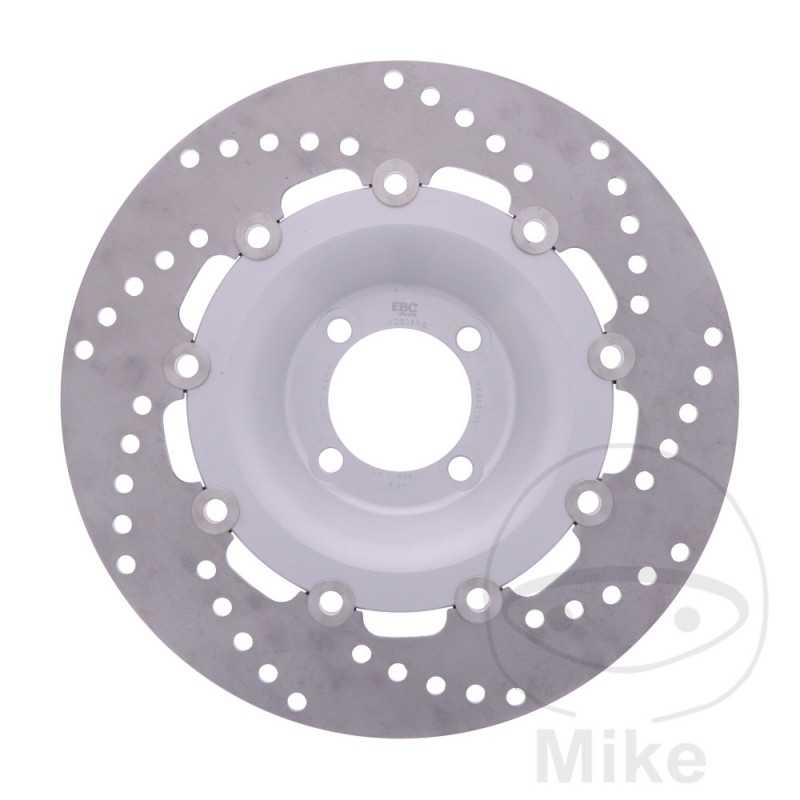

EBC right brake disc 760.47.88

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a Full Floater brake disc.

The complete float, which is very complex and expensive to manufacture, offers decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can expand without hindrance and without deformation even during repeated hard braking, for example, when going down mountain passes. The low carbon content of the HPSR steel used also proves its worth in this case as it ensures very little structural change in the steel under the continuous thermal stress of heating and cooling the brake disc in harsh road use. An EBC Full Floater brake disc is always a significant safety gain.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 285MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.7MM
PADDING: 23.3MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 100 GS 60 CV, 44 kw 2cil. 247E 0473 Bastidores: 6 276 001-6 276 006 1986
BMW R 100 GS 60 CV, 44 kw 2cil. 247E 0473 Bastidores: 6 276 007-6 276 746 1987
BMW R 100 GS 60 CV, 44 kw 2cil. 247E 0473 Bastidores: 6 276 747-6 332 769 1988
BMW R 100 GS 60 CV, 44 kw 2cil. 247E 0473 Bastidores: 6 332 770-6 335 034 1989
BMW R 100 GS 60 CV, 44 kw 2cil. 247E 0473 Bastidores: 6 335 035-6 336 503 1990
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0474 Bastidores: 6 415 001-6 416 835 1989
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0474 Bastidores: 6 416 836-6 417 557 1990
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0484 Bastidores: 0 065 001 henceforth 065 469 1990
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0484 Bastidores: 0 065 470 henceforth 067 348 1991
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0484 Bastidores: 0 067 349 henceforth 068 769 1992
BMW R 100 GS Paris Dakar 60 CV, 44 kw 2cil. 247E 0484 Bastidores: 0 068 770 henceforth 340 232 1993
BMW R 100 GS Paris Dakar CL Edition 60 CV, 44 kw 2cil. 247E 0484 Bastidores: --- 1994-1996
BMW R 100 GS/2 60 CV, 44 kw 2cil. 247E 0483 Bastidores: --- 1994
BMW R 100 GS/2 60 CV, 44 kw 2cil. 247E 0483 Bastidores: 6 461 501-6 462 920 1990
BMW R 100 GS/2 60 CV, 44 kw 2cil. 247E 0483 Bastidores: 6 462 921-6 466 100 1991
BMW R 100 GS/2 60 CV, 44 kw 2cil. 247E 0483 Bastidores: 6 466 101-6 467 363 1992
BMW R 100 GS/2 60 CV, 44 kw 2cil. 247E 0483 Bastidores: 6 467 364-6 468 208 1993
BMW R 100 R 60 CV, 44 kw 2cil. 247E 0486 Bastidores: --- 1993-1994
BMW R 100 R Mystic 60 CV, 44 kw 2cil. 247E 0493 Bastidores: --- 1994-1996
BMW R 100 R Roadster 60 CV, 44 kw 2cil. 247E 0486 Bastidores: 0 165 501 henceforth 165 947 1993
BMW R 100 R Roadster 60 CV, 44 kw 2cil. 247E 0486 Bastidores: 0 240 001 henceforth 241 523 1991
BMW R 100 R Roadster 60 CV, 44 kw 2cil. 247E 0486 Bastidores: 0 241 524 henceforth 248 952 1992
BMW R 100 R Roadster 60 CV, 44 kw 2cil. 247E 0486 Bastidores: 0 248 953 henceforth 250 000 1993
BMW R 100 R Roadster Classic 60 CV, 44 kw 2cil. 247E 0486 Bastidores: --- 1994-1996
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 160 001 henceforth 160 578 1986
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 160 579 henceforth 162 048 1987
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 162 049 henceforth 163 002 1988
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 163 003 henceforth 163 801 1989
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 163 802 henceforth 164 147 1990
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 164 148 henceforth 164 541 1991
BMW R 100 RS/2 monolever 60 CV, 44 kw 2cil. 247 0455 Bastidores: 0 164 542 henceforth 165 331 1992
BMW R 100 RT/2 Classic monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: --- 1994-1996
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 016 001-6 016 726 1987
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 016 727-6 017 289 1988
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 017 290-6 167 453 1989
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 167 454-6 337 360 1990
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 337 361-6 338 086 1991
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 338 087-6 338 787 1992
BMW R 100 RT/2 monolever 60 CV, 44 kw 2cil. 247 0459 Bastidores: 6 338 788-6 339 278 1993
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 431 603-6 431 795 1988
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 431 796-6 432 138 1989
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 432 139-6 432 531 1990
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 432 532-6 433 107 1991
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 433 108-6 433 408 1992
BMW R 65 3Serie monolever 27 CV, 20 kw 2cil. 247 0451 Bastidores: 6 433 409-6 433 529 1993
BMW R 65 3Serie monolever 48 CV, 35 kw 2cil. 247 0452 Bastidores: 6 118 992-6 131 123 1988
BMW R 80 GS paralever 50 CV, 37 kw 2cil. 247E 0471 Bastidores: 6 245 001-6 245 625 1987
BMW R 80 GS paralever 50 CV, 37 kw 2cil. 247E 0471 Bastidores: 6 245 626-6 248 549 1988
BMW R 80 GS paralever 50 CV, 37 kw 2cil. 247E 0471 Bastidores: 6 248 550-6 249 881 1989
BMW R 80 GS paralever 50 CV, 37 kw 2cil. 247E 0471 Bastidores: 6 249 882-6 250 000 1990
BMW R 80 GS PD Paris Dakar paralever 50 CV, 37 kw 2cil. 247E 0472 Bastidores: 0 071 001 henceforth 071 020 1990
BMW R 80 GS PD Paris Dakar paralever 50 CV, 37 kw 2cil. 247E 0485 Bastidores: 0 118 001 henceforth 118 021 1990
BMW R 80 GS PD Paris Dakar paralever 50/27 CV, 37/20 kw 2cil. 247E 0485 Bastidores: 0 118 022 henceforth 118 124 1991
BMW R 80 GS PD Paris Dakar paralever 50/27 CV, 37/20 kw 2cil. 247E 0485 Bastidores: 0 118 125 henceforth 118 252 1992
BMW R 80 GS PD Paris Dakar paralever 50/27 CV, 37/20 kw 2cil. 247E 0485 Bastidores: 0 118 253 henceforth 118 355 1993
BMW R 80 GS/2 Last Edition paralever 34 CV, 25 kw 2cil. 247E 0475 Bastidores: --- 1996-1998
BMW R 80 GS/2 Last Edition paralever 50 CV, 37 kw 2cil. 247E 0475 Bastidores: --- 1996-1998
BMW R 80 GS/2 paralever 34 CV, 25 kw 2cil. 247E 0481 Bastidores: --- 1994-1995
BMW R 80 GS/2 paralever 50 CV, 37 kw 2cil. 247E 0481 Bastidores: --- 1994-1995
BMW R 80 GS/2 paralever 50 CV, 37 kw 2cil. 247E 0481 Bastidores: 0 046 001 henceforth 047 018 1990
BMW R 80 GS/2 paralever 50/27 CV, 37/20 kw 2cil. 247E 0481 Bastidores: 0 033 501 henceforth 034 351 1990
BMW R 80 GS/2 paralever 50/27 CV, 37/20 kw 2cil. 247E 0481 Bastidores: 0 034 352 henceforth 036 814 1991
BMW R 80 GS/2 paralever 50/27 CV, 37/20 kw 2cil. 247E 0481 Bastidores: 0 036 815 henceforth 038 432 1992
BMW R 80 GS/2 paralever 50/27 CV, 37/20 kw 2cil. 247E 0481 Bastidores: 0 038 433 henceforth 039 513 1993
BMW R 80 monolever 34 CV, 25 kw 2cil. 247 0453 Bastidores: 0 123 384 henceforth 123 527 1993
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 0 121 001 henceforth 121 771 1990
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 0 121 772 henceforth 122 923 1991
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 0 122 924 henceforth 123 383 1992
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 0 123 384 henceforth 123 527 1993
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 440 001-6 440 534 1984
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 440 535-6 444 201 1985
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 444 202-6 446 319 1986
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 446 320-6 447 500 1987
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 447 501-6 448 248 1988
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 448 249-6 449 088 1989
BMW R 80 monolever 50 CV, 37 kw 2cil. 247 0453 Bastidores: 6 449 089-6 450 000 1990
BMW R 80 R 50/27 CV, 37/20 kw 2cil. 247 0467 Bastidores: 0 260 001 henceforth 260 047 1991
BMW R 80 R 50/27 CV, 37/20 kw 2cil. 247 0467 Bastidores: 0 260 048 henceforth 261 620 1992
BMW R 80 R 50/27 CV, 37/20 kw 2cil. 247 0467 Bastidores: 0 261 621 henceforth 262 345 1993
BMW R 80 R 50/34 CV, 37/25 kw 2cil. 247E 0467 Bastidores: --- 1994
BMW R 80 R Mystic 50/34 CV, 37/25 kw 2cil. 247E 0491 Bastidores: --- 1994-1995
BMW R 80 RT/2 monolever 27 CV, 20 kw 2cil. 247 0457 Bastidores: 0 271 165 henceforth 271 960 1992
BMW R 80 RT/2 monolever 27 CV, 20 kw 2cil. 247 0457 Bastidores: 0 271 961 henceforth 272 599 1993
BMW R 80 RT/2 monolever 27 CV, 20 kw 2cil. 247 0457 Bastidores: 6 489 113-6 490 000 1991
BMW R 80 RT/2 monolever 34 CV, 25 kw 2cil. 247 0457 Bastidores: --- 1994-1995
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: --- 1994-1995
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 0 270 001 henceforth 271 164 1991
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 0 271 165 henceforth 271 960 1992
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 0 271 961 henceforth 272 599 1993
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 470 001-6 470 513 1984
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 470 514-6 474 182 1985
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 474 183-6 476 481 1986
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 476 482-6 479 761 1987
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 479 762-6 484 704 1988
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 484 705-6 486 770 1989
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 486 771-6 489 112 1990
BMW R 80 RT/2 monolever 50 CV, 37 kw 2cil. 247 0457 Bastidores: 6 489 113-6 490 000 1991
