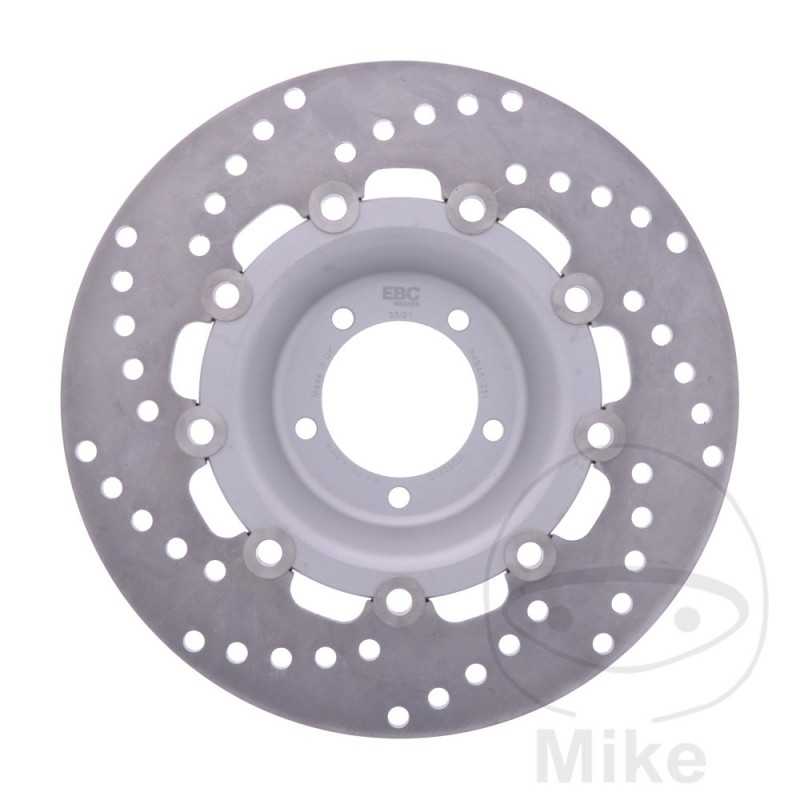

EBC Left brake disc 760.42.42

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 62.2MM
CIRCLE SIZE: 79 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 35.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 100 /7 60 CV, 44 KW 2CIL. 247 0323 BASTIDORES: 6 045 001-6 050 000 1977-1978
BMW R 100 /7 60 CV, 44 KW 2CIL. R100 0304 BASTIDORES: 6 040 001-6 045 000 1976
BMW R 100 CS 70 CV, 51 KW 2CIL. 247 0426 BASTIDORES: 6 135 001-6 140 000 1980-1984
BMW R 100 LLANTA DE FUNDICIÓN 67 CV, 49 KW 2CIL. 247 0425 BASTIDORES: 6 035 001-6 040 000 1981-1984
BMW R 100 LLANTA DE FUNDICIÓN 67 CV, 49 KW 2CIL. 247 0425 BASTIDORES: 6 400 001-6 405 000 1981-1984
BMW R 100 RS 70 CV, 51 KW 2CIL. 247 0325 BASTIDORES: 6 086 001-6 095 000 1978
BMW R 100 RS 70 CV, 51 KW 2CIL. 247 0377 BASTIDORES: 6 095 001-6 100 000 1979-1980
BMW R 100 RS 70 CV, 51 KW 2CIL. 247 0377 BASTIDORES: 6 223 001-6 224 000 1979-1980
BMW R 100 RS 70 CV, 51 KW 2CIL. 247 0427 BASTIDORES: 6 075 001-6 080 000 1981-1984
BMW R 100 RS 70 CV, 51 KW 2CIL. 247 0427 BASTIDORES: 6 390 001-6 397 000 1981-1984
BMW R 100 RS 70 CV, 51 KW 2CIL. R100 0306 BASTIDORES: 6 080 001-6 082 000 1976-1977
BMW R 100 RS 70 CV, 51 KW 2CIL. R100 0306 BASTIDORES: 6 082 501-6 086 000 1976-1977
BMW R 100 RT 70 CV, 51 KW 2CIL. 247 0446 BASTIDORES: 6 230 001-6 240 000 1981-1984
BMW R 100 S 65 CV, 48 KW 2CIL. 247 0324 BASTIDORES: 6 065 001-6 070 000 1977-1978
BMW R 100 S 65 CV, 48 KW 2CIL. R100 0305 BASTIDORES: 6 060 001-6 065 000 1976
BMW R 100 S 70 CV, 51 KW 2CIL. 247 0376 BASTIDORES: 6 070 001-6 073 000 1979-1980
BMW R 100 T TOUREN 65 CV, 48 KW 2CIL. 247 0375 BASTIDORES: 6 050 001-6 054 000 1978
BMW R 60 /7 40 CV, 29 KW 2CIL. 247 0321 BASTIDORES: 6 007 001-6 012 000 1978
BMW R 60 /7 40 CV, 29 KW 2CIL. 247 0371 BASTIDORES: 6 015 001-6 016 000 1979-1980
BMW R 60 /7 40 CV, 29 KW 2CIL. R60/7 0301 BASTIDORES: 6 000 001-6 007 000 1976-1977
BMW R 75 /6 50 CV, 37 KW 2CIL. R75/6 0261 BASTIDORES: 4 010 001-4 020 000 1973-1974
BMW R 75 /6 50 CV, 37 KW 2CIL. R75/6 0265 BASTIDORES: 4 020 001-4 030 000 1975
BMW R 75 /6 50 CV, 37 KW 2CIL. R75/6 0282 BASTIDORES: 4 030 001-4 040 000 1976
BMW R 75 /7 50 CV, 37 KW 2CIL. 247 0326 BASTIDORES: 6 220 001-6 222 000 1977-1978
BMW R 75 /7 50 CV, 37 KW 2CIL. 247 0372 BASTIDORES: 6 222 001-6 223 000 1979
BMW R 75 /7 50 CV, 37 KW 2CIL. R75/7 0302 BASTIDORES: 6 020 001-6 025 000 1976
BMW R 80 /7N 50 CV, 37 KW 2CIL. 247 0327 BASTIDORES: 6 200 001-6 205 000 1977-1978
BMW R 80 /7N 50 CV, 37 KW 2CIL. 247 0373 BASTIDORES: 6 205 001-6 207 000 1979-1980
BMW R 80 /7S 55 CV, 40 KW 2CIL. 247 0322 BASTIDORES: 6 025 001-6 030 000 1977-1978
BMW R 80 /7S 55 CV, 40 KW 2CIL. 247 0374 BASTIDORES: 6 030 001-6 034 000 1979-1980
BMW R 80 RT 50 CV, 37 KW 2CIL. 247 0444 BASTIDORES: 6 420 001-6 425 000 1982-1984
BMW R 90 /6 60 CV, 44 KW 2CIL. R90/6 0271 BASTIDORES: 4 040 001-4 050 000 1973-1974
BMW R 90 /6 60 CV, 44 KW 2CIL. R90/6 0275 BASTIDORES: 4 050 001-4 060 000 1975
BMW R 90 /6 60 CV, 44 KW 2CIL. R90/6 0283 BASTIDORES: 4 060 001-4 070 000 1976
BMW R 90 S 67 CV, 49 KW 2CIL. R90/S 0272 BASTIDORES: 4 070 001-4 080 000 1973-1974
BMW R 90 S 67 CV, 49 KW 2CIL. R90/S 0276 BASTIDORES: 4 080 001-4 090 000 1975
BMW R 90 S 67 CV, 49 KW 2CIL. R90/S 0284 BASTIDORES: 4 090 001-4 100 000 1976
