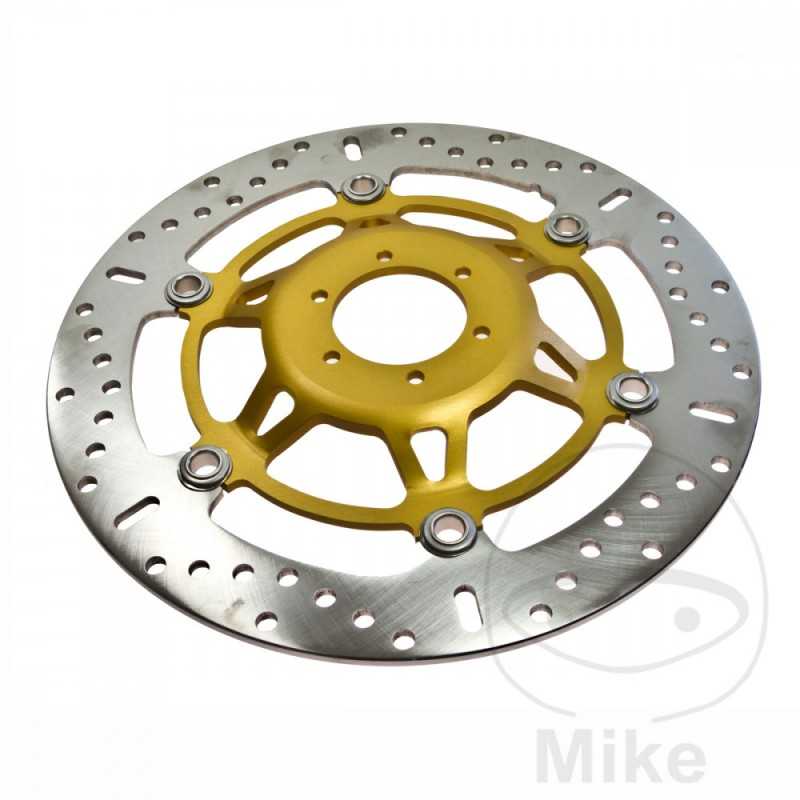

EBC Brake disc stainless steel 760.39.41
€200.34
€218.85
Save €18.51Tax included
EBC X / XC series - Fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 74 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
PADDING: 21.8MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1100 XX SUPER BLACKBIRD 160 CV, 118 KW 4CIL. SC35A W BASTIDORES: JH2 SC35A-WM100001-JH2 SC35A-WM199999 1998
HONDA CBR 1100 XX SUPER BLACKBIRD 160 CV, 118 KW 4CIL. SC35C V BASTIDORES: JH2 SC35C-VM000001-JH2 SC35C-VM002226 1997
HONDA CBR 1100 XX SUPER BLACKBIRD 98 CV, 72 KW 4CIL. SC35D V BASTIDORES: JH2 SC35D-VM000001-JH2 SC35D-VM001144 1997
HONDA CBR 1100 XX SUPER BLACKBIRD 98 CV, 72 KW 4CIL. SC35D W BASTIDORES: JH2 SC35D-WM100001-JH2 SC35D-WM199999 1998
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors feature EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc heats up under heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 74 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 5mm
PADDING: 21.8MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 1100 XX SUPER BLACKBIRD 160 CV, 118 KW 4CIL. SC35A W BASTIDORES: JH2 SC35A-WM100001-JH2 SC35A-WM199999 1998
HONDA CBR 1100 XX SUPER BLACKBIRD 160 CV, 118 KW 4CIL. SC35C V BASTIDORES: JH2 SC35C-VM000001-JH2 SC35C-VM002226 1997
HONDA CBR 1100 XX SUPER BLACKBIRD 98 CV, 72 KW 4CIL. SC35D V BASTIDORES: JH2 SC35D-VM000001-JH2 SC35D-VM001144 1997
HONDA CBR 1100 XX SUPER BLACKBIRD 98 CV, 72 KW 4CIL. SC35D W BASTIDORES: JH2 SC35D-WM100001-JH2 SC35D-WM199999 1998
760.39.41
10 Items
Data sheet
- INSIDE DIAMETER
- 74MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 6
- STUFFED
- 21.8MM
- EXTERNAL DIAMETER
- 310MM
- CIRCLE MEASUREMENT
- 74MM
- HOLE DIAMETER
- 6.3MM
- THICKNESS
- 5 MM
