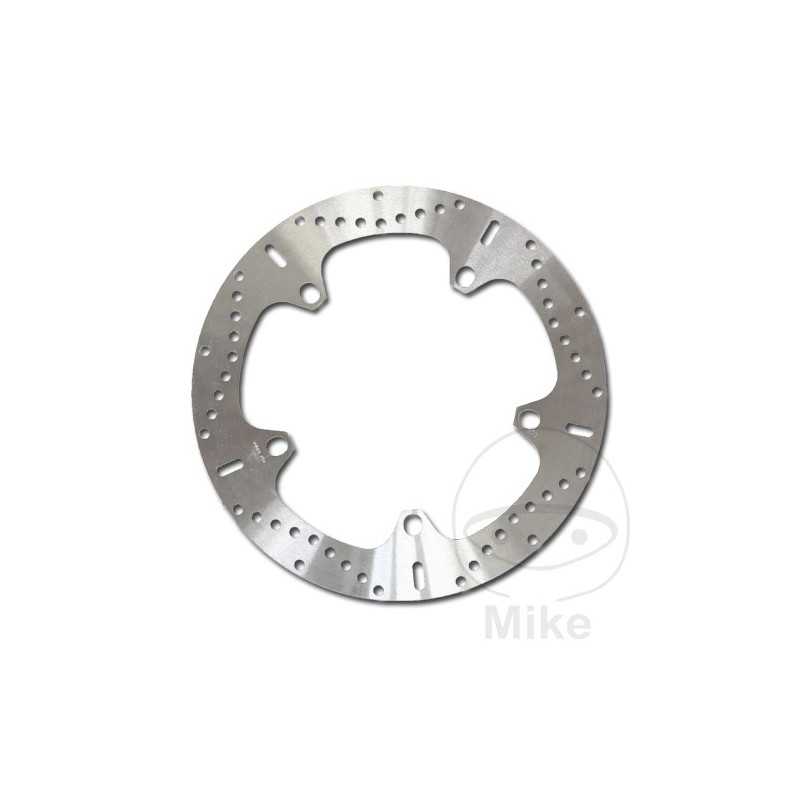

EBC Brake disc stainless steel 760.39.13

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Brake ring machined in low carbon HPSR forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- perforated brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for best braking performance.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 108.5MM
CIRCLE SIZE: 203.4 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 16.7X14 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 800 800 S 34 CV, 25 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2006-2008
BMW F 800 800 S 85 CV, 62,5 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2006-2008
BMW F 800 800 S ABS 34 CV, 25 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2007-2008
BMW F 800 800 S ABS 85 CV, 62,5 KW 2CIL. E8ST/K71 0216 BASTIDORES: --- 2007-2008
BMW F 800 800 ST 34 CV, 25 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2006-2008
BMW F 800 800 ST 85 CV, 62,5 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2006-2008
BMW F 800 800 ST ABS 34 CV, 25 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2007-2008
BMW F 800 800 ST ABS 85 CV, 62,5 KW 2CIL. E8ST/K71 0234 BASTIDORES: --- 2007-2008
BMW R 1100 S 5,0 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R11S/259 0422 BASTIDORES: --- 2004-2005
BMW R 1100 S 5,0 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 2001-2003
BMW R 1100 S 5,5 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R11S/259 0422 BASTIDORES: --- 2004-2005
BMW R 1100 S 5,5 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 2001-2003
BMW R 1100 S BOXER CUP REPLICA 5,5 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R11S/259 0422 BASTIDORES: --- 2004
BMW R 1100 S BOXER CUP REPLICA 5,5 PULGADAS LLANTA 98 CV, 72 KW 2CIL. R2S/259 0422 BASTIDORES: --- 2003
BMW R 1200 RT ABS 110 CV, 81 KW 2CIL. R12T/K26 0368 BASTIDORES: --- 2005-2007
BMW R 1200 S 5,5 PULGADAS LLANTA 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 5,5 PULGADAS LLANTA ABS 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 6,0 PULGADAS LLANTA 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 S 6,0 PULGADAS LLANTA ABS 122 CV, 90 KW 2CIL. R12S/K29 0366 BASTIDORES: --- 2006-2008
BMW R 1200 ST 110 CV, 81 KW 2CIL. R1ST/K28 0328 BASTIDORES: --- 2005-2008
BMW R 1200 ST ABS 110 CV, 81 KW 2CIL. R1ST/K28 0328 BASTIDORES: --- 2005-2008
