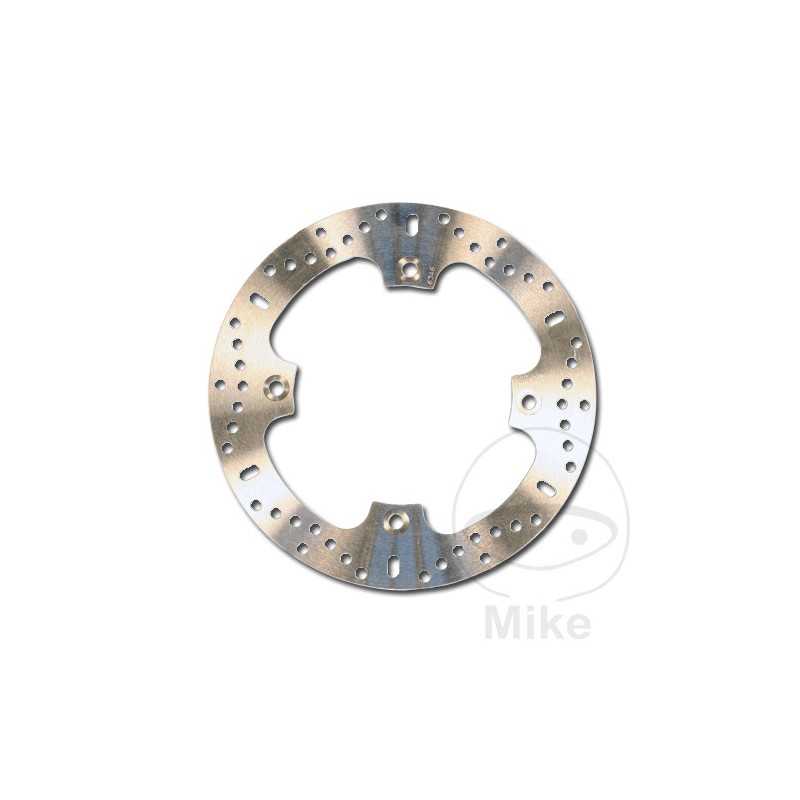

EBC Stainless steel brake disc for motorcycle MX ENDURO ATV 760.33.68

EBC brake disc for offroad motorcycles. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the brake discs of off-road motorcycles that are primarily ridden off-road. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life.

The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear.

- Hard disk.

- Made of carbon steel with heat treatment.

- perforated brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 256MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD10B 1 BASTIDORES: ZDC RD10B henceforth1F030001-- 2001
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD10B Y BASTIDORES: ZDC RD10B henceforthYF200001-- 2000
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 2 BASTIDORES: VTM RD11B henceforth2E100001-VTM RD11B henceforth2E199999 2002
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 3 BASTIDORES: VTMRD11B henceforth3E110001-VTM RD11B henceforth3E199999 2003
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 4 BASTIDORES: VTM RD11B henceforth4E120001-VTM RD11B henceforth4E199999 2004
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 5 BASTIDORES: VTM RD11B henceforth5E130001-VTM RD11B henceforth5E199999 2005
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 5 BASTIDORES: VTM RD11B henceforth5E600001-VTM RD11B henceforth5E699999 2005
HONDA XL 650 V TRANSALP 34 CV, 25 KW 2CIL. RD11B 6 BASTIDORES: VTM RD11B henceforth6E510001-- 2006-2007
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD10A 1 BASTIDORES: ZDC RD10A 01F030001-- 2001
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD10A Y BASTIDORES: ZDC RD10A henceforthYF000001-- 2000
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 2 BASTIDORES: VTM RD11A henceforth2E100001-VTM RD11A henceforth2E199999 2002
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 3 BASTIDORES: VTMRD11A henceforth3E110001-VTM RD11A henceforth3E199999 2003
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 4 BASTIDORES: VTM RD11A henceforth4E120001-VTM RD11A henceforth4E199999 2004
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 5 BASTIDORES: VTM RD11A henceforth5E130001-VTM RD11A henceforth5E199999 2005
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 5 BASTIDORES: VTM RD11A henceforth5E500001-VTM RD11A henceforth5E599999 2005
HONDA XL 650 V TRANSALP 53 CV, 39 KW 2CIL. RD11A 6 BASTIDORES: VTM RD11A henceforth6E510001-- 2006-2007
HONDA XL 700 V TRANSALP 60 CV, 44 KW 2CIL. RD13A 8 BASTIDORES: VTM RD13A henceforth8E000001-VTM RD13A henceforth8E009999 2008
HONDA XL 700 V TRANSALP 60 CV, 44 KW 2CIL. RD13A 9 BASTIDORES: VTM RD13A-9E010001-VTM RD13A-9E0199999 2009
HONDA XL 700 V TRANSALP 60 CV, 44 KW 2CIL. RD13A A BASTIDORES: VTM RD13A-AE020001-- 2010
HONDA XL 700 V TRANSALP 60 CV, 44 KW 2CIL. RD13A B BASTIDORES: ZDC RD15A henceforthBF010001-- 2011
HONDA XL 700 VA TRANSALP ABS 60 CV, 44 KW 2CIL. RD13B 8 BASTIDORES: VTM RD13B henceforth8E000001-VTM RD13B henceforth8E009999 2008
HONDA XL 700 VA TRANSALP ABS 60 CV, 44 KW 2CIL. RD13B 9 BASTIDORES: VTM RD13B-9E010001-VTM RD13B-9E0199999 2009
HONDA XL 700 VA TRANSALP ABS 60 CV, 44 KW 2CIL. RD13B A BASTIDORES: VTM RD13B-AE020001-- 2010
HONDA XL 700 VA TRANSALP ABS 60 CV, 44 KW 2CIL. RD15B B BASTIDORES: ZDC RD15B0-BF010001-- 2011-2013
