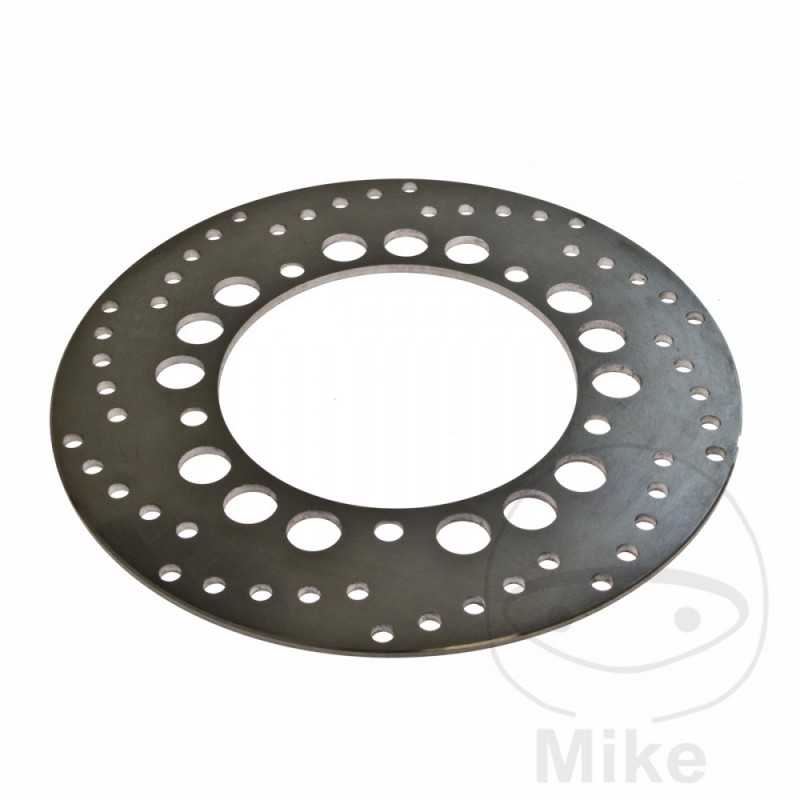

EBC right brake disc 760.30.47

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 144.2MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBF 250 22 CV, 16 KW 1CIL. MC35A 4 BASTIDORES: 9C2 MC35A henceforth4R600001-- 2004-2005
HONDA CBF 250 22 CV, 16 KW 1CIL. MC35A 6 BASTIDORES: --- 2006
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50A D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RS REPSOL 13,6 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RW 13,3 CV, 10 KW 1CIL. JC50A B BASTIDORES: MLH JC50A-B5000001-MLH JC50A-B5099999 2011
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B B BASTIDORES: MLH JC50B-B5000001-MLH JC50B-B5099999 2011
