EBC Left brake disc 760.29.80
€263.13
Tax included

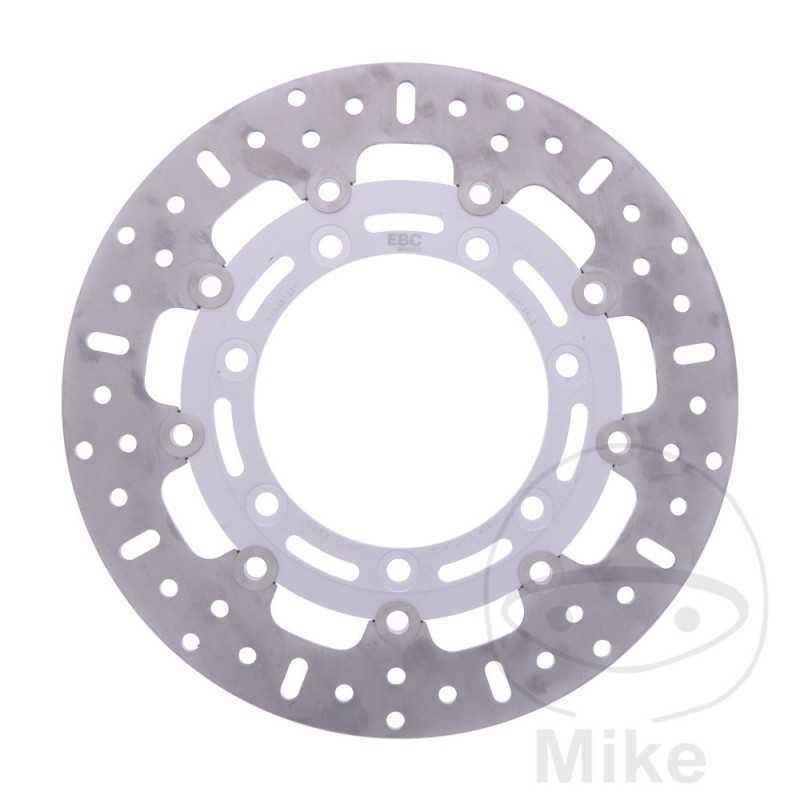

EBC Prolite floating brake disc, full float. MADE IN THE UK.
The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no vitrification of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- Anodized aluminum cube.
- The smallest manufacturing tolerances.
- Independent design.
OUTER DIAMETER: 298MM
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.2MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI EN 500 B 50/34 CV, 37/25 KW 2CIL. EN500B 1 BASTIDORES: EN500A henceforth00001-EN500A henceforth01800 1994
KAWASAKI EN 500 B 50/34 CV, 37/25 KW 2CIL. EN500B 2 BASTIDORES: EN500A henceforth01801-EN500A-999999 1995
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 4 BASTIDORES: EN500ACA-156001-EN500ACA-164000 1999
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 5 BASTIDORES: EN500ACA-164001-EN500ACA-168000 2000
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 6 BASTIDORES: EN500ACA-168001-EN500ACA-173000 2001
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 7 BASTIDORES: EN500ACA-173001-EN500ACA-180000 2002
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 8 BASTIDORES: EN500ACA-180001-EN500ACA-999999 2003
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 4 BASTIDORES: EN500ACA-156001-EN500ACA-164000 1999
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 5 BASTIDORES: EN500ACA-164001-EN500ACA-168000 2000
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 6 BASTIDORES: EN500ACA-168001-EN500ACA-173000 2001
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 7 BASTIDORES: EN500ACA-173001-EN500ACA-180000 2002
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 8 BASTIDORES: EN500ACA-180001-EN500ACA-999999 2003
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 1 BASTIDORES: EN500C henceforth00001-EN500C henceforth05000 1996
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 2 BASTIDORES: EN500C henceforth05001-EN500C henceforth07000 1997
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 3 BASTIDORES: EN500C henceforth07001-EN500C-999999 1998
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 1 BASTIDORES: VN800A henceforth00001-VN800A henceforth30000 1995
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 2 BASTIDORES: VN800A henceforth30001-VN800A henceforth50000 1996
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 3 BASTIDORES: VN800A henceforth50001-VN800A henceforth63000 1997
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 4 BASTIDORES: VN800A henceforth63001-VN800A-999999 1998
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800AAA 5 BASTIDORES: VN800AAA henceforth75001-VN800AAA-999999 1999
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 2 BASTIDORES: VNT50A henceforth01001-VNT50A henceforth03000 1988
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 3 BASTIDORES: VNT50A henceforth03001-VNT50A henceforth04000 1989
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 4 BASTIDORES: VNT50A henceforth04001-VNT50A henceforth06000 1990
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 2 BASTIDORES: VNT50A henceforth01001-VNT50A henceforth03000 1988
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 3 BASTIDORES: VNT50A henceforth03001-VNT50A henceforth04000 1989
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 4 BASTIDORES: VNT50A henceforth04001-VNT50A henceforth06000 1990
KAWASAKI VN-15 1500 C 61/50/34 CV, 45/37/25 KW 2CIL. VNT50C 1 BASTIDORES: VNT50C henceforth00001-VNT50C henceforth04000 1994
KAWASAKI VN-15 1500 C 61/50/34 CV, 45/37/25 KW 2CIL. VNT50C 2 BASTIDORES: VNT50C henceforth04001-VNT50C-999999 1995
The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no vitrification of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- Anodized aluminum cube.
- The smallest manufacturing tolerances.
- Independent design.
OUTER DIAMETER: 298MM
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.2MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI EN 500 B 50/34 CV, 37/25 KW 2CIL. EN500B 1 BASTIDORES: EN500A henceforth00001-EN500A henceforth01800 1994
KAWASAKI EN 500 B 50/34 CV, 37/25 KW 2CIL. EN500B 2 BASTIDORES: EN500A henceforth01801-EN500A-999999 1995
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 4 BASTIDORES: EN500ACA-156001-EN500ACA-164000 1999
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 5 BASTIDORES: EN500ACA-164001-EN500ACA-168000 2000
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 6 BASTIDORES: EN500ACA-168001-EN500ACA-173000 2001
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 7 BASTIDORES: EN500ACA-173001-EN500ACA-180000 2002
KAWASAKI EN 500 C 34 CV, 25 KW 2CIL. EN500ACA 8 BASTIDORES: EN500ACA-180001-EN500ACA-999999 2003
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 4 BASTIDORES: EN500ACA-156001-EN500ACA-164000 1999
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 5 BASTIDORES: EN500ACA-164001-EN500ACA-168000 2000
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 6 BASTIDORES: EN500ACA-168001-EN500ACA-173000 2001
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 7 BASTIDORES: EN500ACA-173001-EN500ACA-180000 2002
KAWASAKI EN 500 C 46 CV, 34 KW 2CIL. EN500ACA 8 BASTIDORES: EN500ACA-180001-EN500ACA-999999 2003
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 1 BASTIDORES: EN500C henceforth00001-EN500C henceforth05000 1996
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 2 BASTIDORES: EN500C henceforth05001-EN500C henceforth07000 1997
KAWASAKI EN 500 C 46/34 CV, 34/25 KW 2CIL. EN500C 3 BASTIDORES: EN500C henceforth07001-EN500C-999999 1998
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 1 BASTIDORES: VN800A henceforth00001-VN800A henceforth30000 1995
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 2 BASTIDORES: VN800A henceforth30001-VN800A henceforth50000 1996
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 3 BASTIDORES: VN800A henceforth50001-VN800A henceforth63000 1997
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800A 4 BASTIDORES: VN800A henceforth63001-VN800A-999999 1998
KAWASAKI VN 800 A 55/50/34 CV, 40,5/37/25 KW 2CIL. VN800AAA 5 BASTIDORES: VN800AAA henceforth75001-VN800AAA-999999 1999
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 2 BASTIDORES: VNT50A henceforth01001-VNT50A henceforth03000 1988
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 3 BASTIDORES: VNT50A henceforth03001-VNT50A henceforth04000 1989
KAWASAKI VN-15 1500 A 50 CV, 37 KW 2CIL. VNT50A 4 BASTIDORES: VNT50A henceforth04001-VNT50A henceforth06000 1990
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 2 BASTIDORES: VNT50A henceforth01001-VNT50A henceforth03000 1988
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 3 BASTIDORES: VNT50A henceforth03001-VNT50A henceforth04000 1989
KAWASAKI VN-15 1500 A 69 CV, 51 KW 2CIL. VNT50A 4 BASTIDORES: VNT50A henceforth04001-VNT50A henceforth06000 1990
KAWASAKI VN-15 1500 C 61/50/34 CV, 45/37/25 KW 2CIL. VNT50C 1 BASTIDORES: VNT50C henceforth00001-VNT50C henceforth04000 1994
KAWASAKI VN-15 1500 C 61/50/34 CV, 45/37/25 KW 2CIL. VNT50C 2 BASTIDORES: VNT50C henceforth04001-VNT50C-999999 1995
760.29.80
10 Items
Data sheet
- CIRCLE MEASUREMENT
- 150 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 150 MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 7
- EXTERNAL DIAMETER
- 298 MM
- THICKNESS
- 5.2MM
