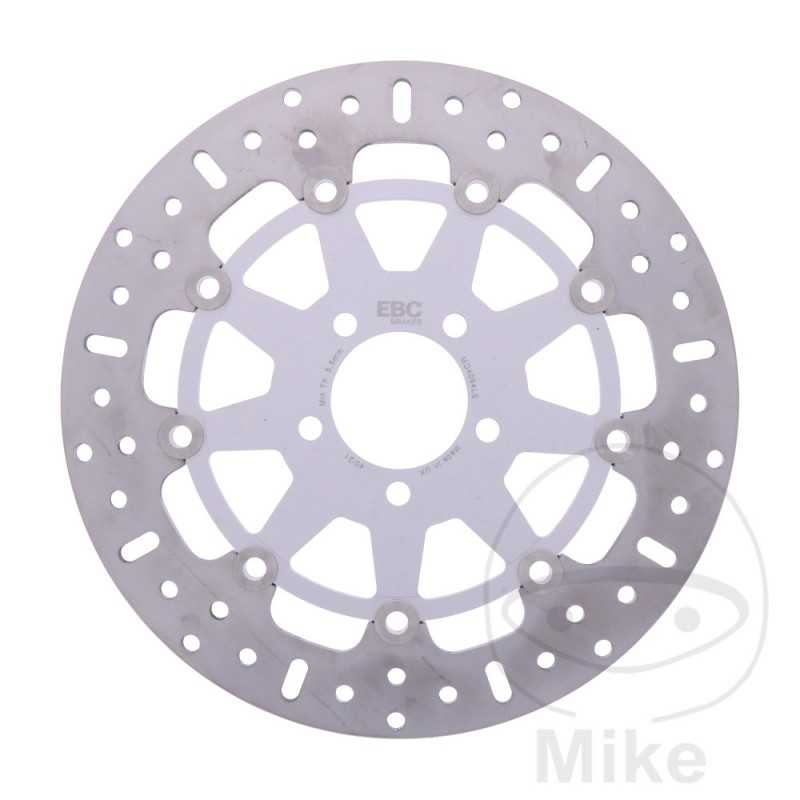

EBC Left brake disc 760.28.32

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 60.2MM
CIRCLE SIZE: 82 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI VN-15 1500 SE B 50 CV, 37 KW 2CIL. VNT50B 2 BASTIDORES: VNT50B henceforth00301-VNT50B henceforth02000 1988
KAWASAKI VN-15 1500 SE B 50 CV, 37 KW 2CIL. VNT50B 3 BASTIDORES: VNT50B henceforth02001-VNT50B henceforth03000 1989
KAWASAKI VN-15 1500 SE B 64/50/27 CV, 47/37/20 KW 2CIL. VNT50B 4 BASTIDORES: VNT50B henceforth03001-VNT50B henceforth05000 1990
KAWASAKI VN-15 1500 SE B 64/50/27 CV, 47/37/20 KW 2CIL. VNT50B 5 BASTIDORES: VNT50B henceforth05001-VNT50B henceforth07000 1991
KAWASAKI VN-15 1500 SE B 64/50/34/27 CV, 47/37/25/20 KW 2CIL. VNT50B 6 BASTIDORES: VNT50B henceforth07001-VNT50B-999999 1992-1994
KAWASAKI VN-15 1500 SE B 69 CV, 51 KW 2CIL. VNT50B 2 BASTIDORES: VNT50B henceforth00301-VNT50B henceforth02000 1988
KAWASAKI VN-15 1500 SE B 69 CV, 51 KW 2CIL. VNT50B 3 BASTIDORES: VNT50B henceforth02001-VNT50B henceforth03000 1989
