Free shipping to every country in the world! (Conditions applied)

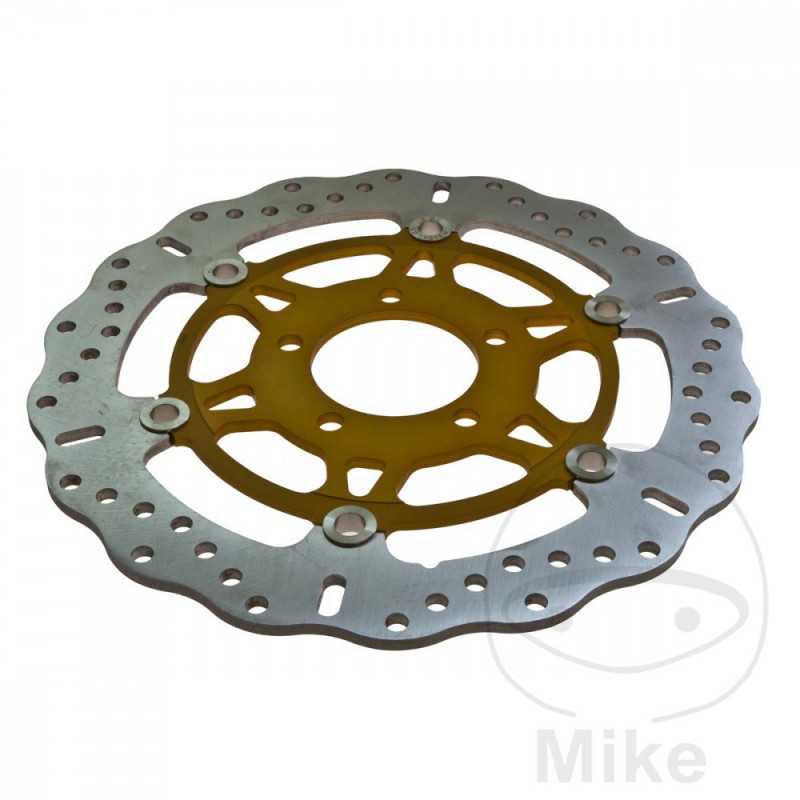

EBC Stainless steel brake disc for motorcycle CONTOUR X 760.27.03
€209.60
Tax included
EBC X / XC series: fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 69.2MM
CIRCLE SIZE: 91 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1000 164 CV, 121 KW 4CIL. WVBZ1111 K4 BASTIDORES: BZ1111 henceforth0107538-- 2004
SUZUKI GSX-R 600 120 CV, 88 KW 4CIL. WVB21111 K4 BASTIDORES: B21111 henceforth0100001-B21111 henceforth0107930 2004
SUZUKI GSX-R 600 120 CV, 88 KW 4CIL. WVB21111 K5 BASTIDORES: B21111 henceforth0107931-- 2005
SUZUKI GSX-R 600 U2 106 CV 78 KW 4CIL. WVB22111 K4 BASTIDORES: B22111 henceforth0100001-B22111 henceforth0101023 2004
SUZUKI GSX-R 600 U2 106 CV 78 KW 4CIL. WVB22111 K5 BASTIDORES: B22111 henceforth0101424-- 2005
SUZUKI GSX-R 600 U3 34 CV, 25 KW 4CIL. WVB23111 K4 BASTIDORES: B23111 henceforth0100001-B23111 henceforth0100041 2004
SUZUKI GSX-R 600 U3 34 CV, 25 KW 4CIL. WVB23111 K5 BASTIDORES: B23111 henceforth0100042-- 2005
SUZUKI GSX-R 600 X ANNIVERSARY 120 CV, 88 KW 4CIL. WVB21114 K5 BASTIDORES: B21114 henceforth0100001-- 2005
SUZUKI GSX-R 600 XU2 ANNIVERSARY 106 CV 78 KW 4CIL. WVB22114 K5 BASTIDORES: B22114 henceforth0100001-- 2005
SUZUKI GSX-R 600 XU3 ANNIVERSARY 34 CV, 25 KW 4CIL. WVB23114 K5 BASTIDORES: B23114 henceforth0100001-- 2005
SUZUKI GSX-R 750 148 CV, 109 KW 4CIL. WVB31111 K4 BASTIDORES: B31111 henceforth0100001-B31111 henceforth0104084 2004
SUZUKI GSX-R 750 148 CV, 109 KW 4CIL. WVB31111 K5 BASTIDORES: B31111 henceforth0104085-- 2005
SUZUKI GSX-R 750 U2 106 CV, 78 KW 4CIL. WVB32111 K4 BASTIDORES: B32111 henceforth0100001-B32111 henceforth0101238 2004
SUZUKI GSX-R 750 U2 106 CV, 78 KW 4CIL. WVB32111 K5 BASTIDORES: B32111 henceforth0101239-- 2005
SUZUKI GSX-R 750 X 148 CV, 109 KW 4CIL. WVB31114 K5 BASTIDORES: B31114 henceforth0100001-- 2005
SUZUKI GSX-R 750 XU2 106 CV, 78 KW 4CIL. WVB31216 K5 BASTIDORES: B31216 henceforth0100001-- 2005
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.
The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.
The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.
Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 69.2MM
CIRCLE SIZE: 91 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 5.5MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1000 164 CV, 121 KW 4CIL. WVBZ1111 K4 BASTIDORES: BZ1111 henceforth0107538-- 2004
SUZUKI GSX-R 600 120 CV, 88 KW 4CIL. WVB21111 K4 BASTIDORES: B21111 henceforth0100001-B21111 henceforth0107930 2004
SUZUKI GSX-R 600 120 CV, 88 KW 4CIL. WVB21111 K5 BASTIDORES: B21111 henceforth0107931-- 2005
SUZUKI GSX-R 600 U2 106 CV 78 KW 4CIL. WVB22111 K4 BASTIDORES: B22111 henceforth0100001-B22111 henceforth0101023 2004
SUZUKI GSX-R 600 U2 106 CV 78 KW 4CIL. WVB22111 K5 BASTIDORES: B22111 henceforth0101424-- 2005
SUZUKI GSX-R 600 U3 34 CV, 25 KW 4CIL. WVB23111 K4 BASTIDORES: B23111 henceforth0100001-B23111 henceforth0100041 2004
SUZUKI GSX-R 600 U3 34 CV, 25 KW 4CIL. WVB23111 K5 BASTIDORES: B23111 henceforth0100042-- 2005
SUZUKI GSX-R 600 X ANNIVERSARY 120 CV, 88 KW 4CIL. WVB21114 K5 BASTIDORES: B21114 henceforth0100001-- 2005
SUZUKI GSX-R 600 XU2 ANNIVERSARY 106 CV 78 KW 4CIL. WVB22114 K5 BASTIDORES: B22114 henceforth0100001-- 2005
SUZUKI GSX-R 600 XU3 ANNIVERSARY 34 CV, 25 KW 4CIL. WVB23114 K5 BASTIDORES: B23114 henceforth0100001-- 2005
SUZUKI GSX-R 750 148 CV, 109 KW 4CIL. WVB31111 K4 BASTIDORES: B31111 henceforth0100001-B31111 henceforth0104084 2004
SUZUKI GSX-R 750 148 CV, 109 KW 4CIL. WVB31111 K5 BASTIDORES: B31111 henceforth0104085-- 2005
SUZUKI GSX-R 750 U2 106 CV, 78 KW 4CIL. WVB32111 K4 BASTIDORES: B32111 henceforth0100001-B32111 henceforth0101238 2004
SUZUKI GSX-R 750 U2 106 CV, 78 KW 4CIL. WVB32111 K5 BASTIDORES: B32111 henceforth0101239-- 2005
SUZUKI GSX-R 750 X 148 CV, 109 KW 4CIL. WVB31114 K5 BASTIDORES: B31114 henceforth0100001-- 2005
SUZUKI GSX-R 750 XU2 106 CV, 78 KW 4CIL. WVB31216 K5 BASTIDORES: B31216 henceforth0100001-- 2005
760.27.03
10 Items
Data sheet
- INSIDE DIAMETER
- 91MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 300 MM
- CIRCLE MEASUREMENT
- 91MM
- HOLE DIAMETER
- 10.5MM
- THICKNESS
- 5.5 MM
