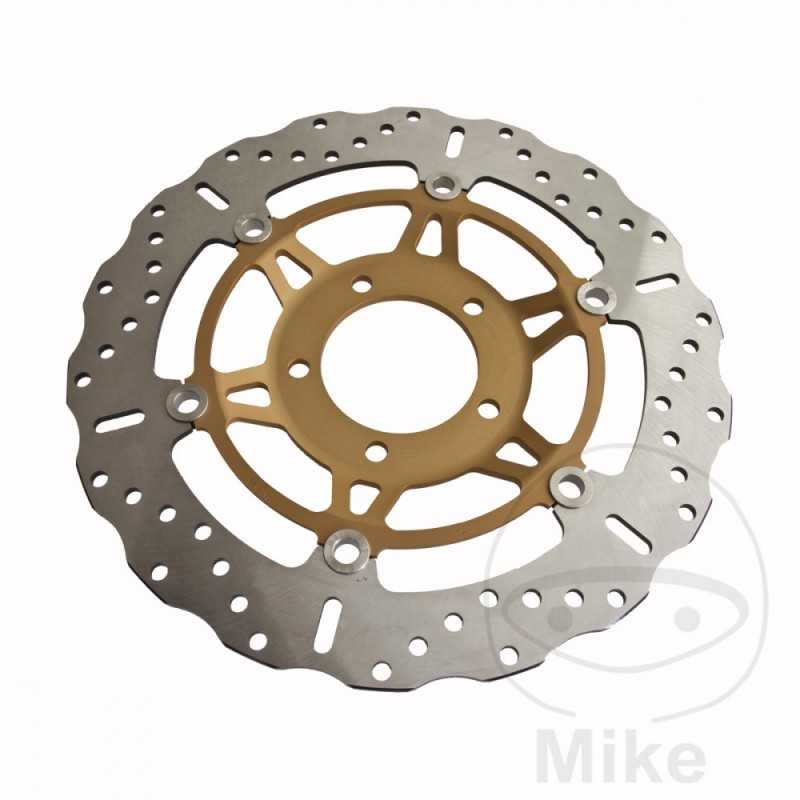

EBC Stainless steel brake disc for motorcycle CONTOUR X 760.27.00

EBC X / XC series: fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. .

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 78.2MM
CIRCLE SIZE: 100 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
PADDING: 17.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Speed Triple 1050 130/98 CV, 96/72 kw 3cil. 515NJ Bastidores: 1 - 210445-1 - 2005
Triumph Speed Triple 1050 130/98 CV, 96/72 kw 3cil. 515NJ Bastidores: 1 --1 - 2006
Triumph Speed Triple 1050 132 CV, 97 kw 3cil. 515NJ Bastidores: 1 --1 - 333178 2007
Triumph Speed Triple 1050 98 CV, 72 kw 3cil. 515NJ Bastidores: 1 --1 - 333178 2007
Triumph Speed Triple 1050 R ABS 135/98 CV, 99/72 kw 3cil. 515NV Bastidores: SMTTPN135G --SMTTPN135G - 2012-2013
Triumph Tiger 1050 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2007-2010
Triumph Tiger 1050 ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2007-2011
Triumph Tiger 1050 SE 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7455S --SMTTG7455S - 2010-2012
Triumph Tiger 1050 SE ABS 115/98 CV, 85/72 kw 3cil. 115NG Bastidores: SMTTG7465S --SMTTG7465S - 2011-2013
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 2013-2015
Triumph Tiger 1050 Sport ABS 125 CV, 92 kw 3cil. 115NG Bastidores: SMTTG7475F --SMTTG7475F - 750469 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 - 750470-1 - 2016
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01 Bastidores: 1 --1 - 2017-2018
Triumph Tiger 1050 Sport ABS 126 CV, 93 kw 3cil. NH01A Bastidores: 1 --1 - 2018-2021
