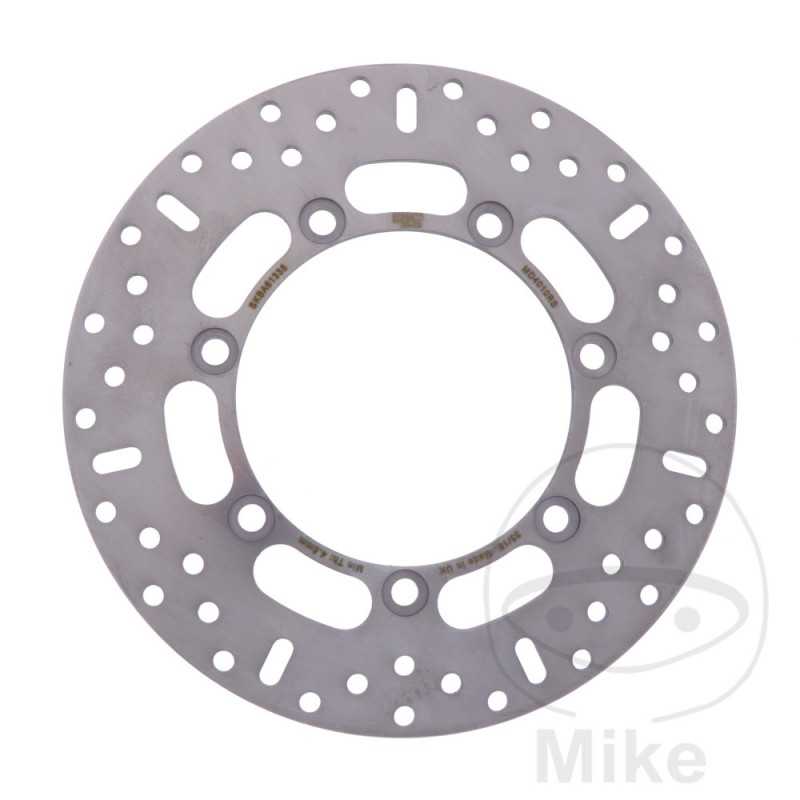

EBC right brake disc 760.22.20
€114.07
Tax included
EBC HPSR brake disc, rigid version. MADE IN THE UK.
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 1 BASTIDORES: KZ750P henceforth00001-KZ750P henceforth03200 1982
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 2 BASTIDORES: KZ750P henceforth03201-KZ750P henceforth05300 1983
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 3 BASTIDORES: KZ750P henceforth05301-KZ750P henceforth06400 1984
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 4 BASTIDORES: KZ750P henceforth06401-- 1985
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 2 BASTIDORES: VN750A henceforth02501-VN750A henceforth05500 1986
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 3 BASTIDORES: VN750A henceforth05501-VN750A henceforth06700 1987
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 4 BASTIDORES: VN750A henceforth06701-VN750A henceforth07900 1988
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 5 BASTIDORES: VN750A henceforth07901-VN750A-999999 1989-1992
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 9 BASTIDORES: VN750A-600001-VN750A-602000 1993
KAWASAKI VN 750 A 60/50/34 CV, 44/37/25 KW 2CIL. VN750A 10 BASTIDORES: VN750A-602001-VN750A-999999 1994-1995
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 2 BASTIDORES: KZ400J henceforth03101-KZ400J henceforth08500 1981
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 3 BASTIDORES: KZ400J henceforth08501-KZ400J henceforth08508 1982-1983
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 3 BASTIDORES: KZ400J henceforth08701-- 1982
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 1 BASTIDORES: KZ550C henceforth00001-KZ550C henceforth08100 1980
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 2 BASTIDORES: KZ550C henceforth08101-KZ550C henceforth21700 1981
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 3 BASTIDORES: KZ550C henceforth21701-- 1982
KAWASAKI Z 550 D GP 58/50 CV, 42,6/37 KW 4CIL. KZ550D 1 BASTIDORES: KZ550D henceforth00001-- 1981
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 2 BASTIDORES: KZ650F henceforth07201-KZ650F henceforth12000 1981
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 3 BASTIDORES: KZ650F henceforth12001-KZ650F henceforth12013 1982
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 3 BASTIDORES: KZ650F henceforth12401-- 1982
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 4 BASTIDORES: KZ650F henceforth14301-- 1983
KAWASAKI Z 750 E 74 CV, 54 KW 4CIL. KZ750E 1 BASTIDORES: KZ750E henceforth00001-- 1980
KAWASAKI Z 750 GP 80 CV, 59 KW 4CIL. KZ750R R1 BASTIDORES: KZ750R henceforth00001-- 1982
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 1 BASTIDORES: KZ750H henceforth00001-KZ750H henceforth13500 1980
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 2 BASTIDORES: KZ750H henceforth13501-KZ750H henceforth31600 1981
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 3 BASTIDORES: KZ750H henceforth31601-- 1982
KAWASAKI Z 750 L 78 CV, 57 KW 4CIL. KZ750E 1 BASTIDORES: KZ750E henceforth12001-KZ750E henceforth32400 1981
KAWASAKI Z 750 L 78 CV, 57 KW 4CIL. KZ750E 2 BASTIDORES: KZ750E henceforth32401-- 1982
KAWASAKI Z 750 L 80 CV, 59 KW 4CIL. KZ750R 3 BASTIDORES: KZ750R henceforth14501-KZ750R henceforth17200 1983
KAWASAKI Z 750 L 80 CV, 59 KW 4CIL. KZ750R 4 BASTIDORES: KZ750R henceforth17201-- 1984
KAWASAKI Z 750 N SPECTRE 78 CV, 57 KW 4CIL. KZDN1CA 1 BASTIDORES: KZDN1CA henceforth00001-- 1982
KAWASAKI Z 750 N SPECTRE 78 CV, 57 KW 4CIL. KZDN1DA 2 BASTIDORES: KZDN1DA henceforth07401-- 1983
KAWASAKI ZR 550 A 50 CV, 37 KW 4CIL. KZ550A 1 BASTIDORES: KZ550A henceforth00001-- 1983
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 7
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 1 BASTIDORES: KZ750P henceforth00001-KZ750P henceforth03200 1982
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 2 BASTIDORES: KZ750P henceforth03201-KZ750P henceforth05300 1983
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 3 BASTIDORES: KZ750P henceforth05301-KZ750P henceforth06400 1984
KAWASAKI GT 750 P 78 CV, 57 KW 4CIL. KZ750P 4 BASTIDORES: KZ750P henceforth06401-- 1985
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 2 BASTIDORES: VN750A henceforth02501-VN750A henceforth05500 1986
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 3 BASTIDORES: VN750A henceforth05501-VN750A henceforth06700 1987
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 4 BASTIDORES: VN750A henceforth06701-VN750A henceforth07900 1988
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 5 BASTIDORES: VN750A henceforth07901-VN750A-999999 1989-1992
KAWASAKI VN 750 A 50 CV, 37 KW 2CIL. VN750A 9 BASTIDORES: VN750A-600001-VN750A-602000 1993
KAWASAKI VN 750 A 60/50/34 CV, 44/37/25 KW 2CIL. VN750A 10 BASTIDORES: VN750A-602001-VN750A-999999 1994-1995
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 2 BASTIDORES: KZ400J henceforth03101-KZ400J henceforth08500 1981
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 3 BASTIDORES: KZ400J henceforth08501-KZ400J henceforth08508 1982-1983
KAWASAKI Z 400 J 43/27 CV, 31,6/20 KW 4CIL. KZ400J 3 BASTIDORES: KZ400J henceforth08701-- 1982
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 1 BASTIDORES: KZ550C henceforth00001-KZ550C henceforth08100 1980
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 2 BASTIDORES: KZ550C henceforth08101-KZ550C henceforth21700 1981
KAWASAKI Z 550 C LTD 50 CV, 37 KW 4CIL. KZ550C 3 BASTIDORES: KZ550C henceforth21701-- 1982
KAWASAKI Z 550 D GP 58/50 CV, 42,6/37 KW 4CIL. KZ550D 1 BASTIDORES: KZ550D henceforth00001-- 1981
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 2 BASTIDORES: KZ650F henceforth07201-KZ650F henceforth12000 1981
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 3 BASTIDORES: KZ650F henceforth12001-KZ650F henceforth12013 1982
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 3 BASTIDORES: KZ650F henceforth12401-- 1982
KAWASAKI Z 650 F 67/50 CV, 49/37 KW 4CIL. KZ650F 4 BASTIDORES: KZ650F henceforth14301-- 1983
KAWASAKI Z 750 E 74 CV, 54 KW 4CIL. KZ750E 1 BASTIDORES: KZ750E henceforth00001-- 1980
KAWASAKI Z 750 GP 80 CV, 59 KW 4CIL. KZ750R R1 BASTIDORES: KZ750R henceforth00001-- 1982
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 1 BASTIDORES: KZ750H henceforth00001-KZ750H henceforth13500 1980
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 2 BASTIDORES: KZ750H henceforth13501-KZ750H henceforth31600 1981
KAWASAKI Z 750 H LTD 4 CILINDROS 74 CV, 54 KW 4CIL. KZ750H 3 BASTIDORES: KZ750H henceforth31601-- 1982
KAWASAKI Z 750 L 78 CV, 57 KW 4CIL. KZ750E 1 BASTIDORES: KZ750E henceforth12001-KZ750E henceforth32400 1981
KAWASAKI Z 750 L 78 CV, 57 KW 4CIL. KZ750E 2 BASTIDORES: KZ750E henceforth32401-- 1982
KAWASAKI Z 750 L 80 CV, 59 KW 4CIL. KZ750R 3 BASTIDORES: KZ750R henceforth14501-KZ750R henceforth17200 1983
KAWASAKI Z 750 L 80 CV, 59 KW 4CIL. KZ750R 4 BASTIDORES: KZ750R henceforth17201-- 1984
KAWASAKI Z 750 N SPECTRE 78 CV, 57 KW 4CIL. KZDN1CA 1 BASTIDORES: KZDN1CA henceforth00001-- 1982
KAWASAKI Z 750 N SPECTRE 78 CV, 57 KW 4CIL. KZDN1DA 2 BASTIDORES: KZDN1DA henceforth07401-- 1983
KAWASAKI ZR 550 A 50 CV, 37 KW 4CIL. KZ550A 1 BASTIDORES: KZ550A henceforth00001-- 1983
760.22.20
10 Items
Data sheet
- EXTERNAL DIAMETER
- 260 MM
- CIRCLE MEASUREMENT
- 150 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 150 MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 7
- THICKNESS
- 5 MM
