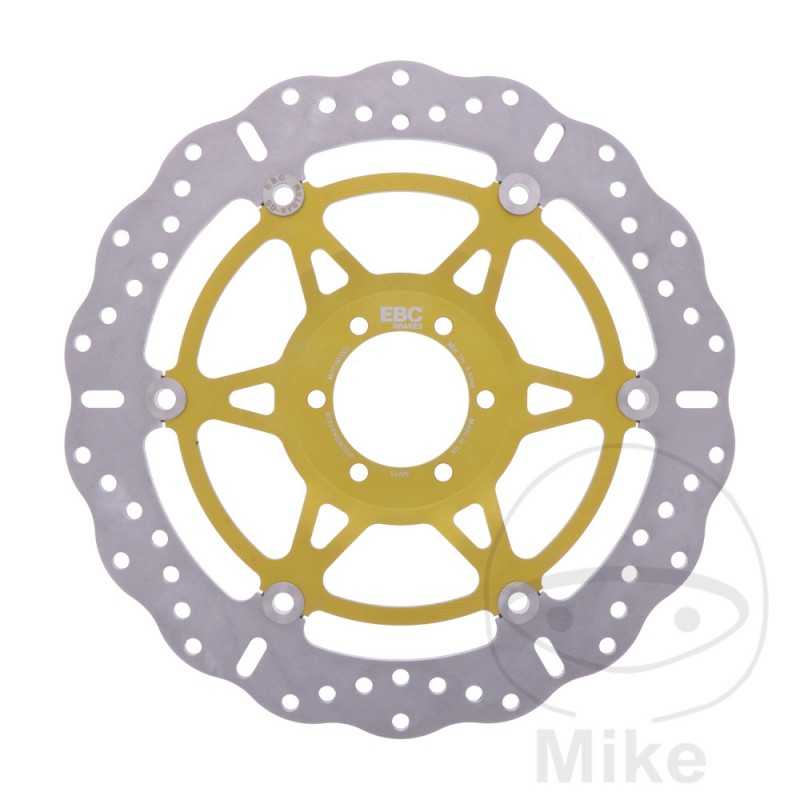

EBC X / XC series: fully floating brake discs for the front wheel These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides. The steel used for the new EBC brake discs is a special stainless steel connection with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased. The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs. The new rotors are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint. . Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc defects caused by disc distortion and vibration. What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect. OUTSIDE DIAMETER: 320MM INSIDE DIAMETER: 64.2MM CIRCLE SIZE: 80 MM HOLES QUANTITY: 6 HOLE DIAMETER: 8.5 MM thickness: 5mm PADDING: 9.6MM VERSION: FLOATING APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: Aprilia MX 125 Supermoto 15 CV, 11 kw 1cil. TZ000 Bastidores: --- 2004-2007 Aprilia MX 125 Supermoto 24,5 CV, 18 kw 1cil. TZ000 Bastidores: --- 2004-2007 Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPA00 Bastidores: --- 1996-1998 Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPB10 Bastidores: --- 1999-2001 Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFA00 Bastidores: --- 2002-2003 Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFG00 Bastidores: --- 2004-2005 Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. SFG00 Bastidores: --- 2004-2005 Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. MPB10 Bastidores: --- 1999-2001 Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. SFA00 Bastidores: --- 2002-2003 Aprilia RS 125 Extrema/Replica 31 CV, 23 kw 1cil. MPA00 Bastidores: --- 1997-1998 Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. GS Bastidores: --- 1992-1994 Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. MP000 Bastidores: --- 1995 Aprilia RS 125 Sport Pro 34/27 CV, 25/20 kw 1cil. LA Bastidores: --- 1993-1994 Aprilia RS 660 ABS 100 CV, 74 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021 Aprilia RS 660 ABS 48CV, 35 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021 Aprilia RS 660 ABS 95CV, 70 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021 Aprilia RSV4 1000 Factory 180 CV, 132 kw 4cil. RK000 Bastidores: --- 2009-2011 Aprilia RSV4 1000 Factory ABS APRC 184 CV, 135 kw 4cil. RKG Bastidores: --- 2013-2015 Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB00 Bastidores: --- 2011 Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB01 Bastidores: --- 2012-2013 Aprilia RSV4 1000 R 180 CV, 132 kw 4cil. RKA00/RKC01 Bastidores: --- 2010-2013 Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKH/RKU04 Bastidores: --- 2013 Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKUA4 Bastidores: --- 2014-2015 Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE00 Bastidores: --- 2011 Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE01 Bastidores: --- 2012-2013 Aprilia RSV4 1100 ABS Euro5 217 CV, 159,5 kw 4cil. - Bastidores: --- 2021-2022 Aprilia RSV4 1100 Factory ABS Euro5 217 CV, 160 kw 4cil. 4KYB Bastidores: ZD4KYB00000000001-ZD4KYB00000999999 2021-2022 Aprilia Tuono 125 15 CV, 11 kw 1cil. SFD00 Bastidores: --- 2003-2004 Aprilia Tuono 125 29,2 CV, 21,5 kw 1cil. SFD00 Bastidores: --- 2003-2004 Benelli BN 600 Avio 82 CV, 60 kw 4cil. - Bastidores: --- 2014-2015 Benelli BN 600 GT 82 CV, 60 kw 4cil. - Bastidores: --- 2014-2016 Benelli BN 600 GT ABS 82 CV, 60 kw 4cil. - Bastidores: --- 2016-2018 Ducati 748 748 S Biposto/Monoposto 98 CV, 72 kw 2cil. 748S Bastidores: --- 1997-1998 Ducati 748 748 Strada Biposto 98 CV, 72 kw 2cil. 748S Bastidores: --- 1995-1998 Ducati Monster 750 62 CV, 46 kw 2cil. M100AA Bastidores: --- 1996-1998 Ducati Monster 750 City 62 CV, 46 kw 2cil. M100AA Bastidores: --- 1999-2000 Ducati Monster 750 City Dark 62 CV, 46 kw 2cil. M100AA Bastidores: --- 1999 Ducati Multistrada 620 ie MD Dark 34 CV, 25 kw 2cil. A103AA/A104AA Bastidores: --- 2005-2006 Ducati Multistrada 620 ie MD Dark 63 CV, 46 kw 2cil. A103AA/A104AA Bastidores: --- 2005-2006 Ducati Supersport 400 SS 42/27 CV, 31/20 kw 2cil. 400J Bastidores: --- 1993-1995 Ducati Supersport 600 SS Carenata 33 CV, 24 kw 2cil. 600S Bastidores: --- 1994-1998 Ducati Supersport 600 SS Carenata 53 CV, 39 kw 2cil. 600S Bastidores: --- 1994-1998 Ducati Supersport 600 SS Nuda 33 CV, 24 kw 2cil. 600S Bastidores: --- 1994-1998 Ducati Supersport 600 SS Nuda 53 CV, 39 kw 2cil. 600S Bastidores: --- 1994-1998 Ducati Supersport 750 SS ie Carenata 34 CV, 25 kw 2cil. V200AA Bastidores: --- 1999 Ducati Supersport 750 SS ie Carenata 64 CV, 47 kw 2cil. V200AA Bastidores: --- 1999 Ducati Supersport 750 SS ie Nuda 34 CV, 25 kw 2cil. V200AA Bastidores: --- 1999 Ducati Supersport 750 SS ie Nuda 64 CV, 47 kw 2cil. V200AA Bastidores: --- 1999 Laverda 668 668 64 CV, 47 kw 2cil. ZLV650SP1 Bastidores: --- 1996-1998 Laverda 668 668 Diamante 70 CV, 51 kw 2cil. ZLV650SP1 Bastidores: --- 1997 Laverda Black Strike 650 70 CV, 51,5 kw 2cil. - Bastidores: --- 1998-1999 Laverda Black Strike 750 92 CV, 68 CV 2cil. - Bastidores: --- 1999-2001 Laverda Diamante 750 82 CV, 60 kw 2cil. - Bastidores: --- 1997-1999 Laverda Formula 650 70 CV, 51 kw 2cil. ZLV650SP1 Bastidores: --- 1995-1997 Laverda Formula 750 II Sport 95 CV, 70 kw 2cil. ZLVSSA1 Bastidores: --- 1999-2000 Laverda Formula 750 Sport 92 CV, 68 kw 2cil. ZLVSSA1 Bastidores: --- 1998-1999 Laverda Ghost 650 64 CV, 47 kw 2cil. ZLV650SP2 Bastidores: --- 1996-1998 Laverda Ghost 650 Legend 64 CV, 47 kw 2cil. ZLV650SP2 Bastidores: --- 1996-1997 Laverda Ghost 650 Strike 64 CV, 47 kw 2cil. ZLV650SP2 Bastidores: --- 1997-1998 Laverda Ghost 750 Strike 85 CV, 62,5 kw 2cil. ZLVSTA1 Bastidores: --- 1998-1999 Laverda Laverda 750 S 82 CV, 60 kw 2cil. ZLVSTA1 Bastidores: --- 1997-1999 Laverda Laverda 750 S Carenata 82 CV, 60 kw 2cil. ZLVSTA1 Bastidores: --- 1997-1999 Laverda Lynx 650 72 CV, 53 kw 2cil. - Bastidores: --- 2000 Laverda Sport 650 70 CV, 51,5 kw 2cil. ZLV650SP1 Bastidores: --- 1994-1995 Laverda Sport 750 82 CV, 60 kw 2cil. ZLVSTA1 Bastidores: --- 1999-2001 Laverda Strike 750 92 CV, 67,6 kw 2cil. - Bastidores: --- 1999-2001 Laverda Strike 750 carenado 82 CV, 60 kw 2cil. ZLVSTA1 Bastidores: --- 1997-2001 Laverda Supersport 750 92 CV, 67,6 kw 2cil. - Bastidores: --- 1999-2000 Yamaha FZR 1000 Genesis 100 CV, 74 kw 4cil. 2LA 2LA Bastidores: 2LA henceforth00101-2LA henceforth06000 1987-1988 Yamaha FZR 1000 Genesis Exup 100 CV, 74 kw 4cil. 3LE 3LE1 Bastidores: 3LE henceforth00101-3LE henceforth09000 1989 Yamaha FZR 1000 Genesis Exup 100 CV, 74 kw 4cil. 3LE 3LE2 Bastidores: 3LE henceforth09101-3LE henceforth16000 1990 Yamaha FZR 1000 Genesis Exup 100 CV, 74 kw 4cil. 3LE 3LE3 Bastidores: 3LE henceforth16101-3LE henceforth22000 1991 Yamaha FZR 1000 Genesis Exup 100 CV, 74 kw 4cil. 3LE 3LE4 Bastidores: 3LE henceforth22101-3LE henceforth30000 1992 Yamaha FZR 1000 Genesis Exup 98 CV, 72 kw 4cil. 3LE 3LE5 Bastidores: 3LE henceforth30101-- 1993 Yamaha FZR 1000 Genesis Exup 98 CV, 72 kw 4cil. 3LE 3LE6 Bastidores: 3LE henceforth38101-3LE henceforth42999 1994 Yamaha FZR 1000 Genesis Exup 98 CV, 72 kw 4cil. 3LE 3LE7 Bastidores: 3LE henceforth43101-- 1995 Yamaha FZR 750 RT Genesis 107 CV, 79 kw 4cil. 2TT 2TT Bastidores: 2TT henceforth00101-2TT henceforth01000 1987-1988 Yamaha SZR 660 34 CV, 25 kw 1cil. 4SU 4SU1 Bastidores: 4SU henceforth00106-- 1995-1996 Yamaha SZR 660 34 CV, 25 kw 1cil. 4SU 4SU3 Bastidores: 4SU henceforth21692-4SU henceforth41560 1997-1998 Yamaha SZR 660 48 CV, 35 kw 1cil. 4SU 4SU1 Bastidores: 4SU henceforth00106-- 1995-1996 Yamaha SZR 660 48 CV, 35 kw 1cil. 4SU 4SU3 Bastidores: 4SU henceforth21692-4SU henceforth41560 1997-1998 Yamaha TDR 250 50 CV, 37 kw 2cil. 3CK 3CK1 Bastidores: 3CK henceforth00101-3CK henceforth06000 1988-1989 Yamaha TZR 250 50 CV, 37 kw 2cil. 2MA 2MA Bastidores: 2MA henceforth00101-2MA henceforth05000 1987 Yamaha TZR 250 50 CV, 37 kw 2cil. 2MA 2XW1 Bastidores: 2MA henceforth05101-2MA henceforth14000 1988 Yamaha TZR 250 50 CV, 37 Kw 2cil. 2MA 2XW2 Bastidores: 2MA henceforth14101-2MA henceforth19000 1989-1990 Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU1 Bastidores: 4PU henceforth00101-4PU henceforth07099 1995 Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU3 Bastidores: 4PU henceforth09101-- 1996 Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU7 Bastidores: 4PU henceforth24919-- 1997 Yamaha XJR 1200 98 CV, 72 kw 4cil. 4PU 4PU9 Bastidores: 4PU henceforth31361-- 1998 Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PU5 Bastidores: 4PU henceforth22962-- 1997 Yamaha XJR 1200 SP 98 CV, 72 kw 4cil. 4PU 4PUB Bastidores: 4PU henceforth33271-- 1998 Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN1 Bastidores: 4HN henceforth00101-- 1993 Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN2 Bastidores: 4HN henceforth11101-4HN henceforth17999 1994 Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN3 Bastidores: 4HN henceforth18101-4HN henceforth22999 1995 Yamaha YZF 750 R 100 CV, 74 kw 4cil. 4HN 4HN4 Bastidores: 4HN henceforth23101-- 1996-1998 Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN1 Bastidores: 4HN henceforth00101-- 1993 Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN2 Bastidores: 4HN henceforth11101-4HN henceforth17999 1994 Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN3 Bastidores: 4HN henceforth18101-4HN henceforth22999 1995 Yamaha YZF 750 R 98 CV, 72 kw 4cil. 4HN 4HN4 Bastidores: 4HN henceforth23101-- 1996-1998 Yamaha YZF 750 SP 100 CV, 74 kw 4cil. 4HT 4HT1 Bastidores: 4HT henceforth00101-- 1993 Yamaha YZF 750 SP 100 CV, 74 kw 4cil. 4HT 4HT2 Bastidores: 4HT henceforth01101-4HT henceforth01999 1994 Yamaha YZF 750 SP 100 CV, 74 kw 4cil. 4HT 4HT3 Bastidores: 4HT henceforth02101-4HT henceforth02999 1995 Yamaha YZF 750 SP 100 CV, 74 kw 4cil. 4HT 4HT4 Bastidores: 4HT henceforth03101-- 1996-1998 Yamaha YZF 750 SP 98 CV, 72 kw 4cil. 4HT 4HT1 Bastidores: 4HT henceforth00101-- 1993 Yamaha YZF 750 SP 98 CV, 72 kw 4cil. 4HT 4HT2 Bastidores: 4HT henceforth01101-4HT henceforth01999 1994 Yamaha YZF 750 SP 98 CV, 72 kw 4cil. 4HT 4HT3 Bastidores: 4HT henceforth02101-4HT henceforth02999 1995 Yamaha YZF 750 SP 98 CV, 72 kw 4cil. 4HT 4HT4 Bastidores: 4HT henceforth03101-- 1996-1998
Reference 760.18.67
In stock 10 Items
Data sheet
EXTERNAL DIAMETER 320MM CIRCLE MEASUREMENT 80 MM HOLE DIAMETER 8.5 MM INSIDE DIAMETER 80 MM VERSION FLOATING QUANTITY OF HOLES 6 STUFFED 9.6MM THICKNESS 5 MM
