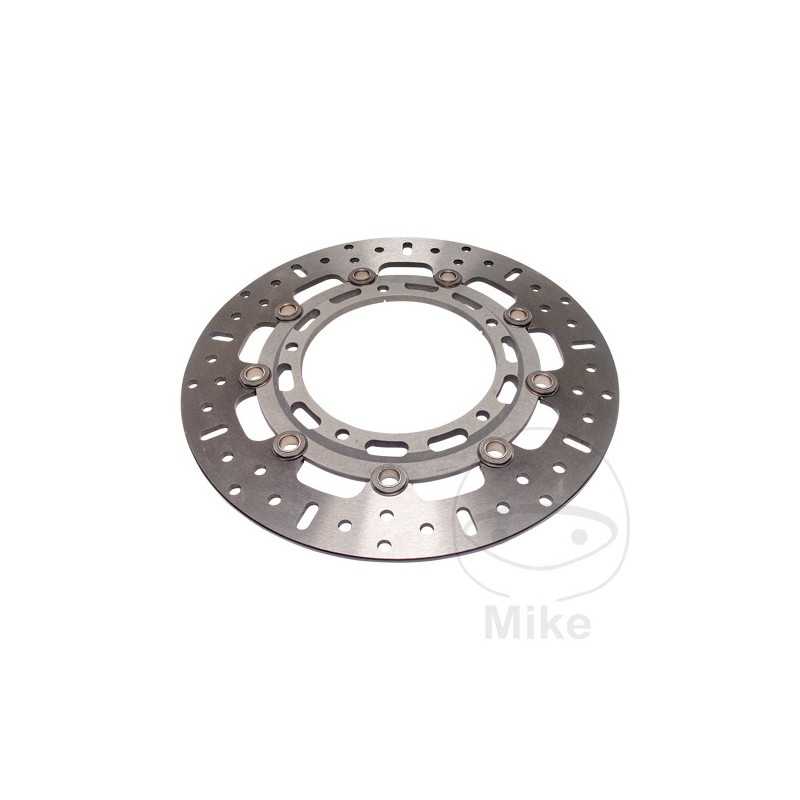

EBC Brake disc stainless steel 760.18.26

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a fully floating brake disc

Complete floats, very complex and expensive to manufacture, offer decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can freely expand without deformation even after repeated emergency braking, for example when going down mountain passes. Here, too, the low carbon content of the HPSR steel used has proven its worth as it ensures very few structural changes to the steel under the constant thermal stress of heating and cooling the brake disc in rough road use. An EBC fully floating brake disc is always a significant safety gain.

- Brake ring milled in forged HPSR steel with low carbon content.

- Therefore, there is no distortion of the brake disc even under the highest load.

- No glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect against corrosion.

- Anodized aluminum hub.

- Lower manufacturing tolerances.

- EBC recommends EBC Double-H sintered brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 298MM
INSIDE DIAMETER: 132.2MM
CIRCLE SIZE: 149.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 10MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA FJ 1200 A ABS 100 CV, 74 KW 4CIL. 3YA 3YA2 BASTIDORES: 3YA henceforth05101-3YA henceforth07000 1991
YAMAHA FJ 1200 A ABS 100 CV, 74 KW 4CIL. 3YA 3YA4 BASTIDORES: 3YA henceforth11101-- 1992
YAMAHA FJ 1200 A ABS 98 CV, 72 KW 4CIL. 3YA 3YA4 BASTIDORES: 3YA henceforth11101-- 1993-1994
