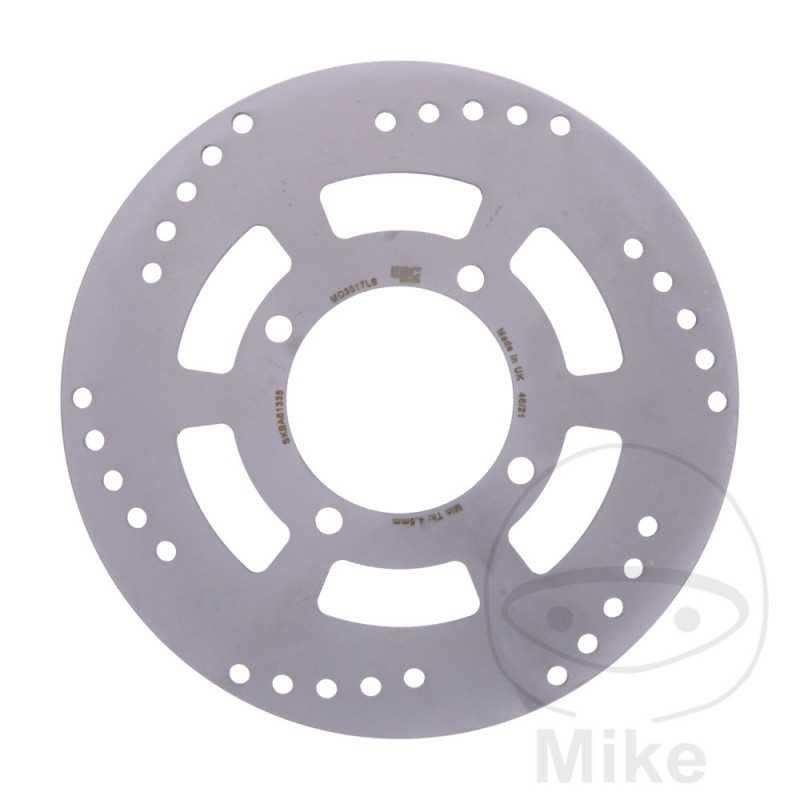

EBC Left brake disc 760.16.51
€148.29
Tax included
EBC HPSR brake disc, rigid version. MADE IN THE UK.
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 87.2MM
CIRCLE SIZE: 108 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B G BASTIDORES: NP41B-100002-NP41B-101742 1986-1987
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B J BASTIDORES: NP41B-101743-NP41B-102334 1988
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B K BASTIDORES: NP41B-102335-NP41B-103137 1989-1990
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B G BASTIDORES: NP41B-100002-NP41B-101742 1986-1987
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B J BASTIDORES: NP41B-101743-NP41B-102334 1988
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B K BASTIDORES: NP41B-102335-NP41B-103137 1989-1990
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B M BASTIDORES: NP41B-103138-NP41B-108964 1991-1993
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B R BASTIDORES: NP41B-108965-NP41B-115483 1994-1995
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B T BASTIDORES: NP41B-115484-NP41B-117718 1996
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B V BASTIDORES: NP41B-117719-NP41B-119611 1997
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B W BASTIDORES: NP41B-119612-NP41B-121070 1998
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B X BASTIDORES: NP41B-121071-- 1999
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B Y BASTIDORES: NP41B-500424-- 2000
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 87.2MM
CIRCLE SIZE: 108 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B G BASTIDORES: NP41B-100002-NP41B-101742 1986-1987
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B J BASTIDORES: NP41B-101743-NP41B-102334 1988
SUZUKI LS 650 F SAVAGE MANILLAR PLANO 27/31 CV, 20/23 KW 1CIL. NP41B K BASTIDORES: NP41B-102335-NP41B-103137 1989-1990
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B G BASTIDORES: NP41B-100002-NP41B-101742 1986-1987
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B J BASTIDORES: NP41B-101743-NP41B-102334 1988
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B K BASTIDORES: NP41B-102335-NP41B-103137 1989-1990
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 27/31 CV, 20/23 KW 1CIL. NP41B M BASTIDORES: NP41B-103138-NP41B-108964 1991-1993
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B R BASTIDORES: NP41B-108965-NP41B-115483 1994-1995
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B T BASTIDORES: NP41B-115484-NP41B-117718 1996
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B V BASTIDORES: NP41B-117719-NP41B-119611 1997
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B W BASTIDORES: NP41B-119612-NP41B-121070 1998
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B X BASTIDORES: NP41B-121071-- 1999
SUZUKI LS 650 P SAVAGE MANILLAR ALTO 31 CV, 23 KW 1CIL. NP41B Y BASTIDORES: NP41B-500424-- 2000
760.16.51
10 Items
Data sheet
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 108 MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 4
- EXTERNAL DIAMETER
- 260 MM
- CIRCLE MEASUREMENT
- 108 MM
- THICKNESS
- 5 MM
