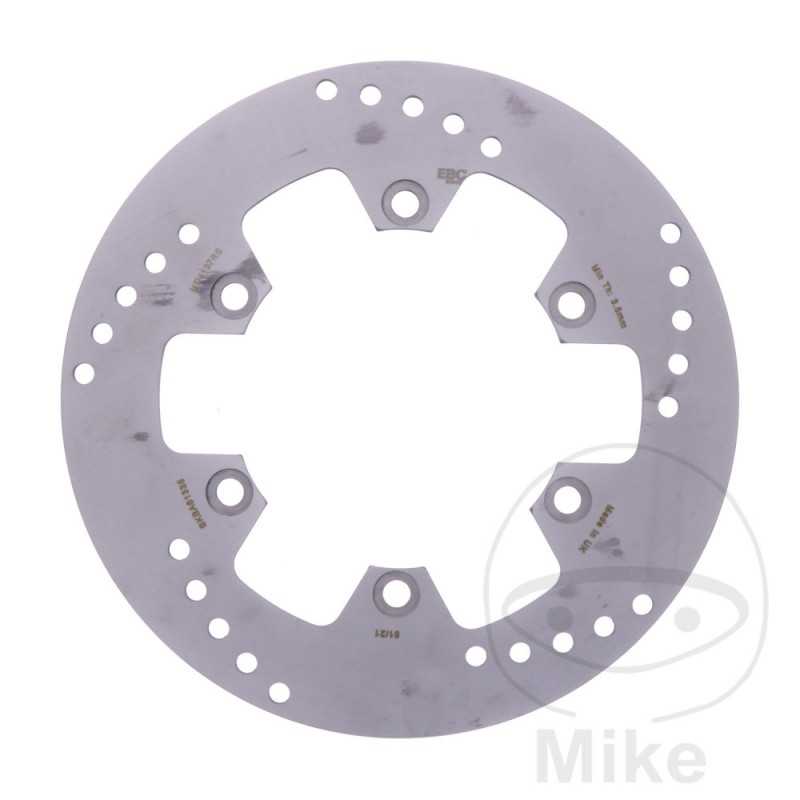

EBC right brake disc 760.12.63

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AAA 1 Bastidores: BN125AAA henceforth00001-BN125AAA henceforth16000 1998
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AAA 2 Bastidores: BN125AAA henceforth16001-BN125AAA-999999 1999
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 3 Bastidores: BN125AADA henceforth0001-BN125AADA henceforth4625 2000-2001
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 5 Bastidores: BN125AADA henceforth4626-BN125AADA henceforth8169 2002
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 6 Bastidores: BN125AADA henceforth8170-BN125AADA henceforth9928 2003
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 6F Bastidores: BN125AADA-13359-BN125AADA-17950 2006
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 7 Bastidores: BN125AADA henceforth9929-BN125AADA-11855 2004
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 7F Bastidores: BN125AADA-17951-- 2007
Kawasaki BN 125 A Eliminator 12 CV, 8,8 kw 1cil. BN125AADA 8 Bastidores: BN125AADA-11856-BN125AADA-13358 2005
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AAA 1 Bastidores: BN125AAA henceforth00001-BN125AAA henceforth16000 1998
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AAA 2 Bastidores: BN125AAA henceforth16001-BN125AAA-999999 1999
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 3 Bastidores: BN125AADA henceforth0001-BN125AADA henceforth4625 2000
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 5 Bastidores: BN125AADA henceforth4626-BN125AADA henceforth8169 2002
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 6 Bastidores: BN125AADA henceforth8170-BN125AADA henceforth9928 2003
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 6F Bastidores: BN125AADA-13359-BN125AADA-17950 2006
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 7 Bastidores: BN125AADA henceforth9929-BN125AADA-11855 2004
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 7F Bastidores: BN125AADA-17951-- 2007
Kawasaki BN 125 A Eliminator 8,5 CV, 6,3 kw 1cil. BN125AADA 8 Bastidores: BN125AADA-11856-BN125AADA-13358 2005
Kawasaki BN 125 A Eliminator 8,5 CV,6,3 kw 1cil. BN125AADA 3 Bastidores: BN125AADA henceforth0001-BN125AADA henceforth4625 2001
