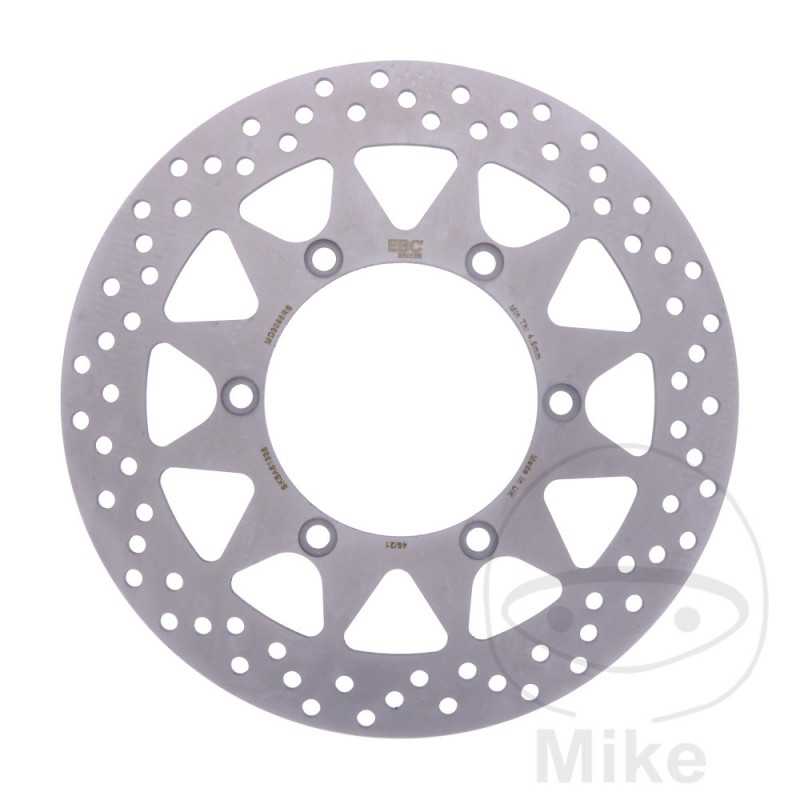

EBC right brake disc 760.12.06

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 K6 BASTIDORES: BM1111 henceforth0114181-BM1111 henceforth0160034 2005-2006
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 K7 BASTIDORES: BM1111 henceforth0160035-BM1111 henceforth0118707 2007
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 K8 BASTIDORES: BM1111 henceforth0118708-BM1111 henceforth0119990 2008
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 K9 BASTIDORES: BM1111 henceforth0119991-BM1111 henceforth0120947 2009
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 L0 BASTIDORES: BM1111 henceforth0120948-BM1111 henceforth0121566 2010
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 L1 BASTIDORES: BM1111 henceforth0121567-BM1111 henceforth0122255 2011
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 L2 BASTIDORES: BM1111 henceforth0122256-BM1111 henceforth0122536 2012
SUZUKI VL 800 C800 INTRUDER LLANTA DE RADIOS 53 CV, 39 KW 2CIL. WVBM1111 L3 BASTIDORES: BM1111 henceforth0122537-- 2013-2017
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 34 CV, 25 KW 2CIL. WVBM2111 K6 BASTIDORES: BM2111 henceforth0100001-BM2111 henceforth0100007 2005-2006
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 34 CV, 25 KW 2CIL. WVBM2111 K7 BASTIDORES: BM2111 henceforth0100008-BM2111 henceforth0100070 2007
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 34 CV, 25 KW 2CIL. WVBM2111 K8 BASTIDORES: BM2111 henceforth0100071-BM2111 henceforth0100088 2008
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 34 CV, 25 KW 2CIL. WVBM2111 K9 BASTIDORES: BM2111 henceforth0100089-BM2111 henceforth0100099 2009
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 34 CV, 25 KW 2CIL. WVBM2111 L0 BASTIDORES: BM2111 henceforth0100100-- 2010
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 48 CV, 35 KW 2CIL. WVBM2111 L2 BASTIDORES: --- 2012
SUZUKI VL 800 C800 UE INTRUDER LLANTA DE RADIOS 48 CV, 35 KW 2CIL. WVBM2111 L3 BASTIDORES: BM2111 henceforth0100100-- 2013-2017
SUZUKI VL 800 C800B INTRUDER BLACK EDITION LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L4 BASTIDORES: BM1114 henceforth0102292-- 2014-2016
SUZUKI VL 800 C800B UE INTRUDER BLACK EDITION LLANTA DE FUNDICIÓN 48 CV, 35 KW 2CIL. WVBM2114 L4 BASTIDORES: BM2114 henceforth0100013-- 2014-2016
SUZUKI VL 800 C800C CUE INTRUDER LLANTA DE FUNDICIÓN 34 CV, 25 KW 2CIL. WVBM2114 K9 BASTIDORES: BM2114 henceforth0100001-BM2114 henceforth0100011 2009
SUZUKI VL 800 C800C CUE INTRUDER LLANTA DE FUNDICIÓN 34 CV, 25 KW 2CIL. WVBM2114 L0 BASTIDORES: BM2114 henceforth0100012-- 2010
SUZUKI VL 800 C800C CUE INTRUDER LLANTA DE FUNDICIÓN 48 CV, 35 KW 2CIL. WVBM2114 L2 BASTIDORES: --- 2012
SUZUKI VL 800 C800C CUE INTRUDER LLANTA DE FUNDICIÓN 48 CV, 35 KW 2CIL. WVBM2114 L3 BASTIDORES: --- 2013
SUZUKI VL 800 C800C CUE INTRUDER LLANTA DE FUNDICIÓN 48 CV, 35 KW 2CIL. WVBM2114 L4 BASTIDORES: BM2114 henceforth0100018-- 2014-2016
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 K7 BASTIDORES: BM1114 henceforth0100001-BM1114 henceforth0100013 2007
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 K8 BASTIDORES: BM1114 henceforth0100014-BM1114 henceforth0100080 2008
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 K9 BASTIDORES: BM1114 henceforth0100081-BM1114 henceforth0100736 2009
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L0 BASTIDORES: BM1114 henceforth0100737-BM1114 henceforth0101346 2010
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L1 BASTIDORES: BM1114 henceforth0101347-BM1114 henceforth0101736 2011
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L2 BASTIDORES: BM1114 henceforth0101737-BM1114 henceforth0102127 2012
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L3 BASTIDORES: BM1114 henceforth0102128-- 2013
SUZUKI VL 800 C800C INTRUDER LLANTA DE FUNDICIÓN 53 CV, 39 KW 2CIL. WVBM1114 L4 BASTIDORES: BM1114 henceforth0102561-- 2014-2016
SUZUKI VL 800 VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K1 BASTIDORES: BM1111 henceforth0100001-BM1111 henceforth0104825 2001
SUZUKI VL 800 VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K2 BASTIDORES: BM1111 henceforth0104826-BM1111 henceforth0107371 2002
SUZUKI VL 800 VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K3 BASTIDORES: BM1111 henceforth0107372-BM1111 henceforth0109388 2003
SUZUKI VL 800 VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K4 BASTIDORES: BM1111 henceforth0109389-BM1111 henceforth0112308 2004
SUZUKI VL 800 VOLUSIA 53 CV, 39 KW 2CIL. WVBM1111 K5 BASTIDORES: BM1111 henceforth0112309-BM1111 henceforth0114180 2005
SUZUKI VL 800 Z VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K3 BASTIDORES: BM1111 henceforth0109288-BM1111 henceforth0111353 2003
SUZUKI VL 800 Z VOLUSIA 52 CV, 38 KW 2CIL. WVBM1111 K4 BASTIDORES: BM1111 henceforth0111354-- 2004
