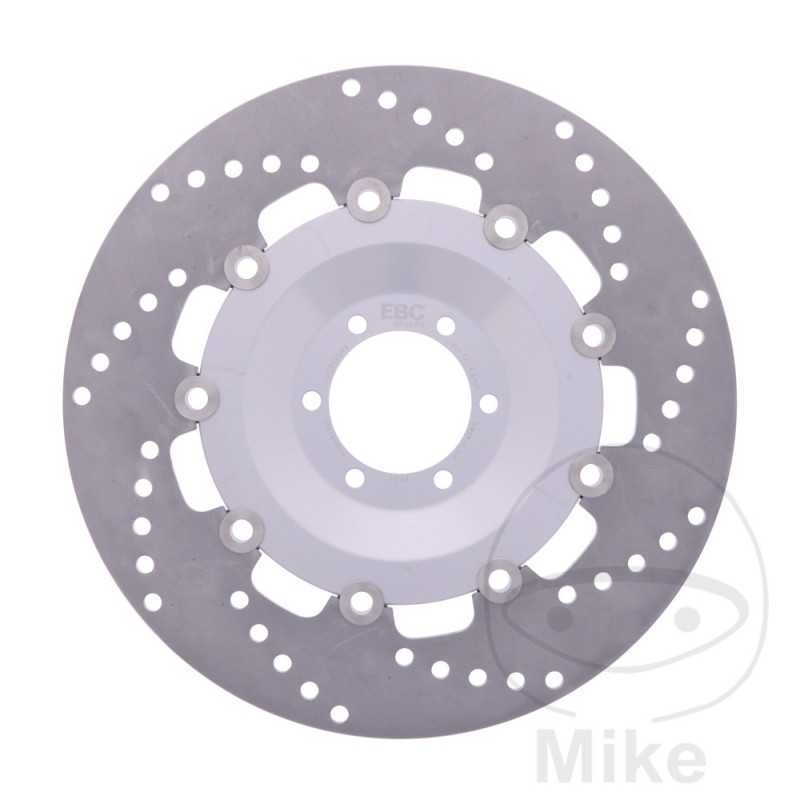

EBC right brake disc 760.11.15

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a Full Floater brake disc.

The complete float, which is very complex and expensive to manufacture, offers decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can expand without hindrance and without deformation even during repeated hard braking, for example, when going down mountain passes. The low carbon content of the HPSR steel used also proves its worth in this case as it ensures very little structural change in the steel under the continuous thermal stress of heating and cooling the brake disc in harsh road use. An EBC Full Floater brake disc is always a significant safety gain.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 17.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XJ 750 SECA 81 CV, 60 KW 4CIL. 11M 11M BASTIDORES: 11M henceforth00101-11M henceforth50000 1982-1984
YAMAHA XV 535 H VIRAGO 46 CV, 34 KW 2CIL. 2YL 3BT1 BASTIDORES: 2YL henceforth03101-2YL henceforth05000 1988
YAMAHA XV 535 H VIRAGO 46 CV, 34 KW 2CIL. 2YL 3BT2 BASTIDORES: 2YL henceforth10101-2YL henceforth13000 1989
YAMAHA XV 535 H VIRAGO 46 CV, 34 KW 2CIL. 2YL 3BT5 BASTIDORES: 2YL henceforth13101-2YL henceforth15000 1989
YAMAHA XV 535 H VIRAGO 46 CV, 34 KW 2CIL. 2YL 3BT8 BASTIDORES: 2YL henceforth17201-2YL henceforth20000 1990
YAMAHA XV 535 H VIRAGO 46 CV, 34 KW 2CIL. 2YL 3BTV BASTIDORES: 2YL-125101-2YL-135999 1994
YAMAHA XV 535 H VIRAGO MANILLAR ALTO 46 CV, 34 KW 2CIL. 2YL 3BTD BASTIDORES: 2YL henceforth29101-- 1991
YAMAHA XV 535 H VIRAGO MANILLAR ALTO 46 CV, 34 KW 2CIL. 2YL 3BTJ BASTIDORES: 2YL henceforth54101-2YL henceforth64000 1992
YAMAHA XV 535 H VIRAGO MANILLAR ALTO 46 CV, 34 KW 2CIL. 2YL 3BTP BASTIDORES: 2YL henceforth93101-- 1993
YAMAHA XV 535 H VIRAGO MANILLAR PLANO 46 CV, 34 KW 2CIL. 2YL 3BTE BASTIDORES: 2YL henceforth31101-2YL henceforth33000 1991
YAMAHA XV 535 H VIRAGO MANILLAR PLANO 46 CV, 34 KW 2CIL. 2YL 3BTK BASTIDORES: 2YL henceforth64101-2YL henceforth68000 1992
YAMAHA XV 535 H VIRAGO MANILLAR PLANO 46 CV, 34 KW 2CIL. 2YL 3BTR BASTIDORES: 2YL henceforth98101-- 1993
YAMAHA XV 535 N VIRAGO 27 CV, 20 KW 2CIL. 3BR 3BR1 BASTIDORES: 3BR henceforth00101-3BR henceforth03000 1988
YAMAHA XV 535 N VIRAGO 27 CV, 20 KW 2CIL. 3BR 3BR2 BASTIDORES: 3BR henceforth03101-3BR henceforth05000 1989-1990
YAMAHA XV 535 N VIRAGO 27 CV, 20 KW 2CIL. 3BR 3BR3 BASTIDORES: 3BR henceforth05101-3BR henceforth07000 1989-1990
YAMAHA XV 535 N VIRAGO MANILLAR ALTO 27 CV, 20 KW 2CIL. 3BR 3BR5 BASTIDORES: 3BR henceforth09101-3BR henceforth14000 1991
YAMAHA XV 535 N VIRAGO MANILLAR ALTO 27 CV, 20 KW 2CIL. 3BR 3BR6 BASTIDORES: 3BR henceforth14101-3BR henceforth19000 1992
YAMAHA XV 535 N VIRAGO MANILLAR ALTO 27 CV, 20 KW 2CIL. 3BR 3BR7 BASTIDORES: 3BR henceforth19101-- 1993
YAMAHA XV 535 SH VIRAGO 46 CV, 34 KW 2CIL. 2YL 4KU3 BASTIDORES: 2YL-163101-2YL-167999 1994
