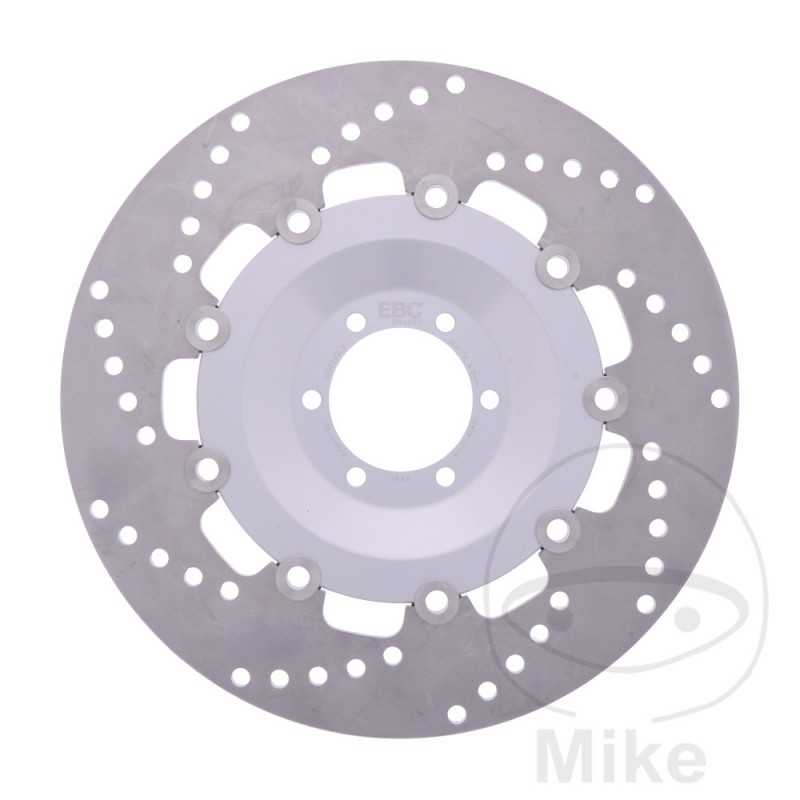

EBC Left brake disc 760.11.07

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 17.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA SR 500 G LLANTA DE FUNDICIÓN 27 CV, 20 KW 1CIL. 2J4 3H0 BASTIDORES: 2J4-100101-2J4-200000 1979
YAMAHA SR 500 G LLANTA DE FUNDICIÓN 27 CV, 20 KW 1CIL. 2J4 4E6 BASTIDORES: 2J4-210101-2J4-220000 1980
YAMAHA SR 500 G LLANTA DE FUNDICIÓN 27 CV, 20 KW 1CIL. 2J4 4E6 BASTIDORES: 2J4-240101-2J4-250000 1981
YAMAHA SR 500 G LLANTA DE FUNDICIÓN 27 CV, 20 KW 1CIL. 2J4 4E6 BASTIDORES: 2J4-250101-2J4-260000 1982-1983
YAMAHA SR 500 SP DISCOS DE FRENO 24 CV,17,3 KW 1CIL. 48T 3EB2 BASTIDORES: 48T henceforth30101-48T henceforth34000 1991
YAMAHA SR 500 SP DISCOS DE FRENO 27 CV, 20 KW 1CIL. 48T 1RU BASTIDORES: 48T henceforth14101-48T henceforth25000 1986-1989
YAMAHA SR 500 SP LLANTA DE RADIOS 27 CV, 20 KW 1CIL. 2J4 2J4 BASTIDORES: 2J4 henceforth00101-2J4-100000 1978
YAMAHA SR 500 SP LLANTA DE RADIOS 27 CV, 20 KW 1CIL. 2J4 2J4 BASTIDORES: 2J4-200101-2J4-210000 1979
YAMAHA SR 500 SP LLANTA DE RADIOS 27 CV, 20 KW 1CIL. 2J4 4F9 BASTIDORES: 2J4-230101-2J4-240000 1981
YAMAHA SR 500 SP LLANTA DE RADIOS 27 CV, 20 KW 1CIL. 2J4 4F9 BASTIDORES: 2J4-260101-2J4-270000 1982-1983
YAMAHA SR 500 SP LLANTA DE RADIOS 27 CV, 20 KW 1CIL. 48T 48U BASTIDORES: 48T henceforth00101-48T henceforth13000 1984-1986
YAMAHA XJ 750 SECA 81 CV, 60 KW 4CIL. 11M 11M BASTIDORES: 11M henceforth00101-11M henceforth50000 1982-1984
