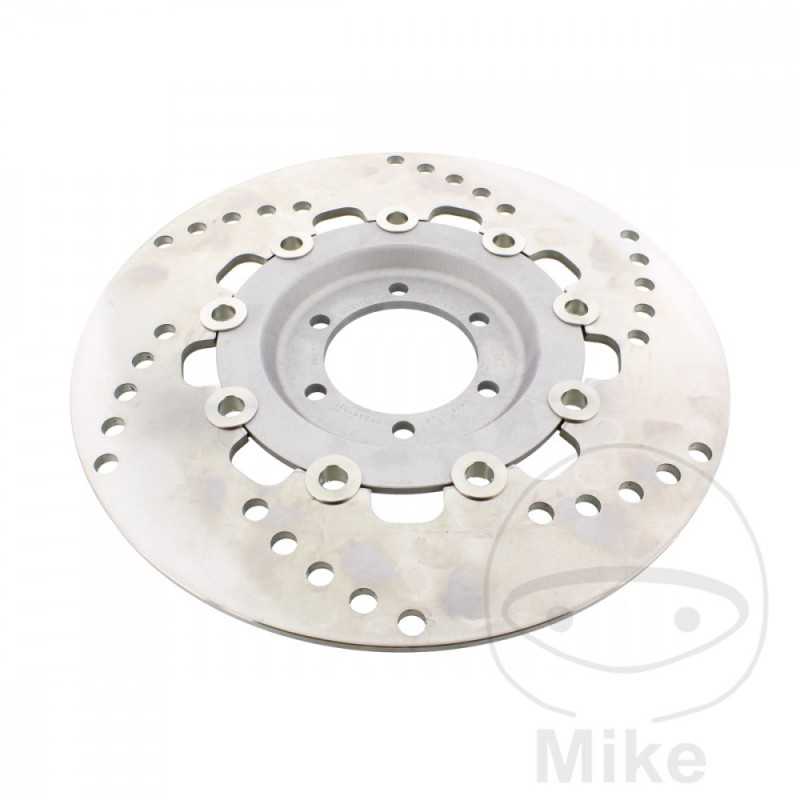

EBC right brake disc 760.10.73

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a Full Floater brake disc.

The complete float, which is very complex and expensive to manufacture, offers decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can expand without hindrance and without deformation even during repeated hard braking, for example, when going down mountain passes. The low carbon content of the HPSR steel used also proves its worth in this case as it ensures very little structural change in the steel under the continuous thermal stress of heating and cooling the brake disc in harsh road use. An EBC Full Floater brake disc is always a significant safety gain.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 266MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 18MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 350 LC 46 CV, 34 kw 2cil. 4L0 4L0 Bastidores: 4L0-200101-4L0-250000 1982-1983
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0 henceforth00101-4L0-100000 1980
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0-100101-4L0-200000 1981
Yamaha SR 250 1cil. - 21L3 Bastidores: --- 2000
Yamaha SR 250 1cil. - 21LF Bastidores: --- 1997
Yamaha SR 250 20 CV, 17,7 kw 1cil. 21LS 21L2 Bastidores: 21LS henceforth0TA055901-- 1996-1998
Yamaha XJ 550 50 CV, 37 kw 4cil. 4V8 27A Bastidores: 4V8-300101-4V8-400000 1983-1984
Yamaha XJ 550 50 CV, 37 kw 4cil. 4V8 4V9 Bastidores: 4V8-100101-4V8-200000 1981-1982
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 11N Bastidores: 4K0 henceforth55101-4K0 henceforth70000 1982
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 27F Bastidores: 4K0 henceforth70101-4K0-200000 1983-1985
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 4K0 Bastidores: 4K0 henceforth00101-- 1980-1981
Yamaha XJ 650 N 50 CV, 37 kw 4cil. 4K0 11R Bastidores: 4K0 henceforth50101-4K0 henceforth55000 1982
Yamaha XJ 650 N 50 CV, 37 kw 4cil. 4K0 27G Bastidores: 4K0-200101-4K0-300000 1983-1985
Yamaha XS 250 17 CV, 13 kw 2cil. 1U5 1U5 Bastidores: 1U5 henceforth00101-- 1977-1980
Yamaha XS 360 27 CV, 20 kw 2cil. 1U4 1U4 Bastidores: 1U4 henceforth00101-- 1977-1978
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2 henceforth60101-2A2 henceforth70000 1980
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2 henceforth70101-2A2 henceforth80000 1981
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2-400101-2A2-500000 1982
Yamaha XS 400 SE Special 27 CV, 20 kw 2cil. 4G5 4G5 Bastidores: 4G5 henceforth10101-4G5 henceforth30000 1981
Yamaha XS 400 SE Special 27 CV, 20 kw 2cil. 4G5 4G5 Bastidores: 4G5 henceforth30101-4G5 henceforth50000 1982-1983
Yamaha XV 1000 TR1 71 CV, 52 kw 2cil. 5A8 19T Bastidores: 5A8-120101-5A8-150000 1982-1984
Yamaha XV 1000 TR1 71 CV, 52 kw 2cil. 5A8 5A8 Bastidores: 5A8 henceforth00101-5A8-100000 1981
Yamaha XV 250 H Virago 22 CV, 15,5 kw 2cil. 3LS 3LS1 Bastidores: 3LS henceforth00101-3LS henceforth08000 1989-1991
Yamaha XV 250 H Virago 22 CV, 15,5 kw 2cil. 3LS 3LS2 Bastidores: 3LS henceforth08101-- 1992-1993
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW1 Bastidores: 3LW henceforth00101-3LW henceforth04000 1989-1991
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW2 Bastidores: 3LW henceforth04101-- 1992-1993
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW3 Bastidores: 3LW henceforth08101-3LW henceforth11999 1994
