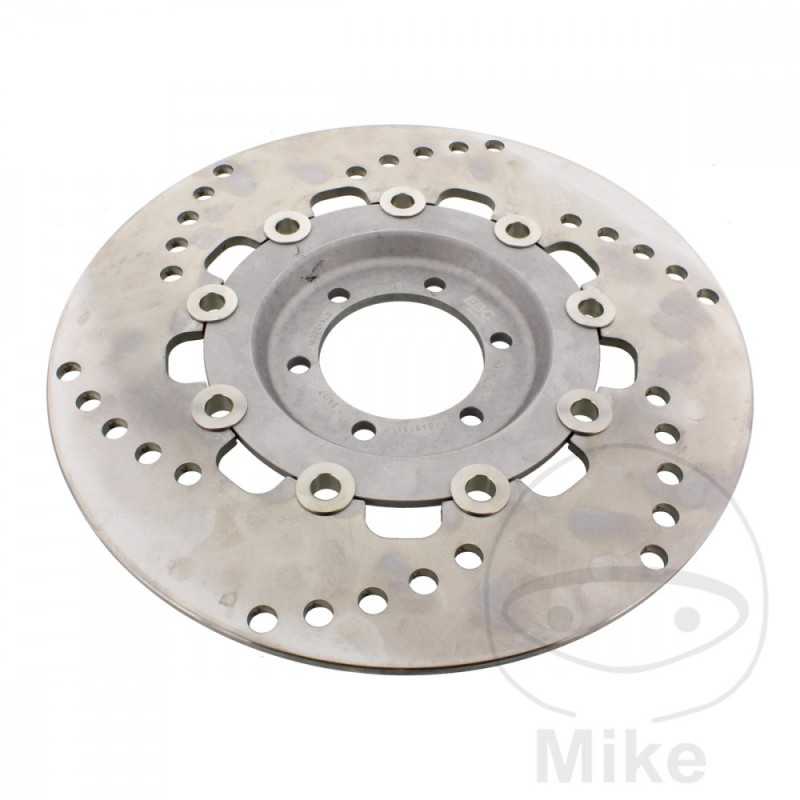

EBC Left brake disc 760.10.65

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTER DIAMETER: 266MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 18MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA RD 350 LC 46 CV, 34 KW 2CIL. 4L0 4L0 BASTIDORES: 4L0-200101-4L0-250000 1982-1983
YAMAHA RD 350 LC 49 CV, 36 KW 2CIL. 4L0 4L0 BASTIDORES: 4L0 henceforth00101-4L0-100000 1980
YAMAHA RD 350 LC 49 CV, 36 KW 2CIL. 4L0 4L0 BASTIDORES: 4L0-100101-4L0-200000 1981
YAMAHA XJ 550 50 CV, 37 KW 4CIL. 4V8 27A BASTIDORES: 4V8-300101-4V8-400000 1983-1984
YAMAHA XJ 550 50 CV, 37 KW 4CIL. 4V8 4V9 BASTIDORES: 4V8-100101-4V8-200000 1981-1982
YAMAHA XJ 650 H 71 CV, 52 KW 4CIL. 4K0 11N BASTIDORES: 4K0 henceforth55101-4K0 henceforth70000 1982
YAMAHA XJ 650 H 71 CV, 52 KW 4CIL. 4K0 27F BASTIDORES: 4K0 henceforth70101-4K0-200000 1983-1985
YAMAHA XJ 650 H 71 CV, 52 KW 4CIL. 4K0 4K0 BASTIDORES: 4K0 henceforth00101-- 1980-1981
YAMAHA XJ 650 N 50 CV, 37 KW 4CIL. 4K0 11R BASTIDORES: 4K0 henceforth50101-4K0 henceforth55000 1982
YAMAHA XJ 650 N 50 CV, 37 KW 4CIL. 4K0 27G BASTIDORES: 4K0-200101-4K0-300000 1983-1985
YAMAHA XV 1000 TR1 71 CV, 52 KW 2CIL. 5A8 19T BASTIDORES: 5A8-120101-5A8-150000 1982-1984
YAMAHA XV 1000 TR1 71 CV, 52 KW 2CIL. 5A8 5A8 BASTIDORES: 5A8 henceforth00101-5A8-100000 1981
