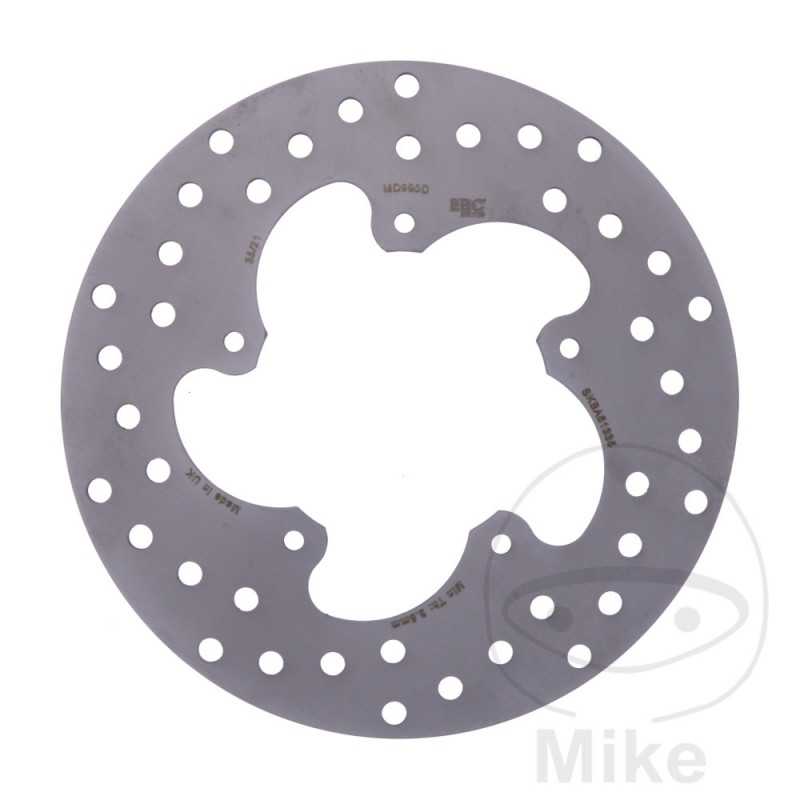

EBC brake disc for motorcycle SCOOTER 760.05.21

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking behavior compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which is rubbed into the area of the contact patch of the brake pads when braking. Only in this area can a light oxide film form after a long period of time.

The brake discs are drilled in the shape of a bird's wing to work with as few holes as possible and at the same time optimized cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better wet braking behavior and less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect against corrosion.

- EBC recommends EBC organic brake pads or, for sporty drivers, EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 96.4MM
CIRCLE SIZE: 115 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA ARRECIFE 500 SPRINT 38 CV, 28 KW 1CIL. - BASTIDORES: --- 2004-2006
APRILIA ATLANTIC 500 34 CV, 25 KW 1CIL. PT001 BASTIDORES: --- 2002
APRILIA ATLANTIC 500 34 CV, 25 KW 1CIL. PT003 BASTIDORES: --- 2003
APRILIA ATLANTIC 500 34 CV, 25 KW 1CIL. VH000 BASTIDORES: --- 2004-2005
APRILIA ATLANTIC 500 38 CV, 28 KW 1CIL. PT001 BASTIDORES: --- 2002
APRILIA ATLANTIC 500 38 CV, 28 KW 1CIL. PT003 BASTIDORES: --- 2003
APRILIA ATLANTIC 500 38 CV, 28 KW 1CIL. VH000 BASTIDORES: --- 2004-2005
APRILIA ATLANTIC 500 SPRINT 34 CV, 25 KW 1CIL. VL000 BASTIDORES: --- 2005
APRILIA ATLANTIC 500 SPRINT 34 CV, 25 KW 1CIL. VLA00 BASTIDORES: --- 2006-2010
APRILIA ATLANTIC 500 SPRINT 38 CV, 28 KW 1CIL. VL000 BASTIDORES: --- 2005
APRILIA ATLANTIC 500 SPRINT 38 CV, 28 KW 1CIL. VLA00 BASTIDORES: --- 2006-2010
APRILIA GRANDE 250 34 CV, 25 KW 1CIL. VBD00 BASTIDORES: --- 2011-2013
APRILIA LEONARDO 250 19 CV, 14 KW 1CIL. PD000 BASTIDORES: --- 1999-2001
APRILIA LEONARDO 300 20,4 CV, 15 KW 1CIL. SVA00 BASTIDORES: --- 2005-2006
APRILIA SCARABEO 500 IE 34 CV, 25 KW 1CIL. RT00 BASTIDORES: --- 2002-2005
APRILIA SCARABEO 500 IE 38 CV, 28 KW 1CIL. RT00 BASTIDORES: --- 2002-2005
APRILIA SCARABEO 500 IE ABS 34 CV, 25 KW 1CIL. RT00 BASTIDORES: --- 2002-2005
APRILIA SCARABEO 500 IE ABS 38 CV, 28 KW 1CIL. RT00 BASTIDORES: --- 2002-2005
