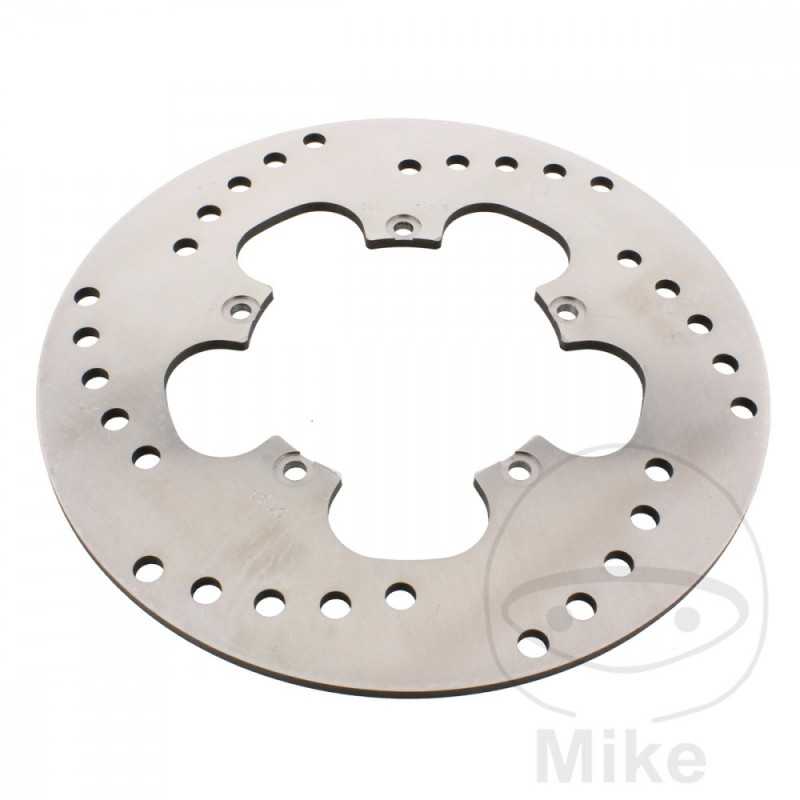

EBC Stainless steel brake disc for motorcycle SCOOTER 760.04.87
€58.36
€69.48
Save 16%Tax included
EBC brake discs. MADE IN THE UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.
The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon laminated HPSR steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 96.2MM
CIRCLE SIZE: 107 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PIAGGIO FLY 125 3V IE DD 12,1 CV, 8,9 KW 1CIL. M79100 BASTIDORES: RP8M79100 henceforth0001001-- 2013-2016
PIAGGIO FLY 125 3V IE DT 11,6 CV, 8,5 KW 1CIL. M79100 BASTIDORES: RP8M79100 henceforth0001001-- 2014-2016
PIAGGIO TPH 125 4T TYPHOON 9,2 CV, 6,8 KW 1CIL. C50100 BASTIDORES: LBMM70100 henceforth0001001-- 2011-2016
PIAGGIO TPH 125 4T TYPHOON 9,2 CV, 6,8 KW 1CIL. M70100 BASTIDORES: LBMM70100 henceforth0001001-- 2011-2016
PIAGGIO TPH 50 TYPHOON 12 PULGADAS 4,1 CV, 3 KW 1CIL. C501 BASTIDORES: --- 2011-2017
PIAGGIO TPH 50 TYPHOON 12 PULGADAS EURO2 4,1 CV, 3 KW 1CIL. C501 BASTIDORES: --- 2018
PIAGGIO TPH 50 TYPHOON 12 PULGADAS EURO4 3 CV, 2,2 KW 1CIL. CA4101 BASTIDORES: METCA4101 henceforth0000001-METCA4101-99999999 2018
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.
The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon laminated HPSR steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 96.2MM
CIRCLE SIZE: 107 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PIAGGIO FLY 125 3V IE DD 12,1 CV, 8,9 KW 1CIL. M79100 BASTIDORES: RP8M79100 henceforth0001001-- 2013-2016
PIAGGIO FLY 125 3V IE DT 11,6 CV, 8,5 KW 1CIL. M79100 BASTIDORES: RP8M79100 henceforth0001001-- 2014-2016
PIAGGIO TPH 125 4T TYPHOON 9,2 CV, 6,8 KW 1CIL. C50100 BASTIDORES: LBMM70100 henceforth0001001-- 2011-2016
PIAGGIO TPH 125 4T TYPHOON 9,2 CV, 6,8 KW 1CIL. M70100 BASTIDORES: LBMM70100 henceforth0001001-- 2011-2016
PIAGGIO TPH 50 TYPHOON 12 PULGADAS 4,1 CV, 3 KW 1CIL. C501 BASTIDORES: --- 2011-2017
PIAGGIO TPH 50 TYPHOON 12 PULGADAS EURO2 4,1 CV, 3 KW 1CIL. C501 BASTIDORES: --- 2018
PIAGGIO TPH 50 TYPHOON 12 PULGADAS EURO4 3 CV, 2,2 KW 1CIL. CA4101 BASTIDORES: METCA4101 henceforth0000001-METCA4101-99999999 2018
760.04.87
10 Items
Data sheet
- CIRCLE MEASUREMENT
- 107MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 107MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 220 MM
- THICKNESS
- 4 MM
No customer reviews for the moment.
