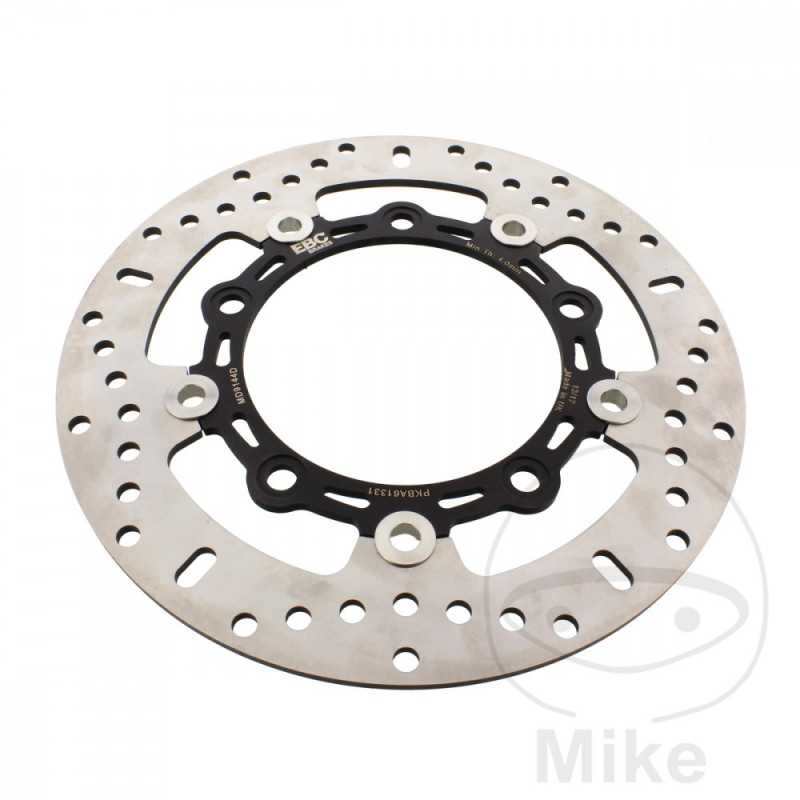

EBC Stainless steel brake disc for motorcycle SCOOTER 760.04.84

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L3 BASTIDORES: BU1111 henceforth0115829-BU1111 henceforth0116931 2013
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L4 BASTIDORES: --- 2014
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L5 BASTIDORES: BU1111 henceforth0116932-- 2015
SUZUKI AN 650 BURGMAN ABS 56/48 CV, 41/35 KW 2CIL. WVBU1111 L6 BASTIDORES: BU1111-G0100001-- 2016
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 54 CV, 40 KW 2CIL. WVBU1427 L8 BASTIDORES: BU1427-J0100001-BU1427-J0199999 2018-2021
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L3 BASTIDORES: BU1121 henceforth0100031-BU1121 henceforth0106168 2013
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L4 BASTIDORES: --- 2014
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L5 BASTIDORES: BU1121 henceforth0106169-- 2015
SUZUKI AN 650 Z BURGMAN EXECUTIVE ABS 56/48 CV, 41/35 KW 2CIL. WVBU1121 L6 BASTIDORES: BU1121-G0100001-- 2016-2017
