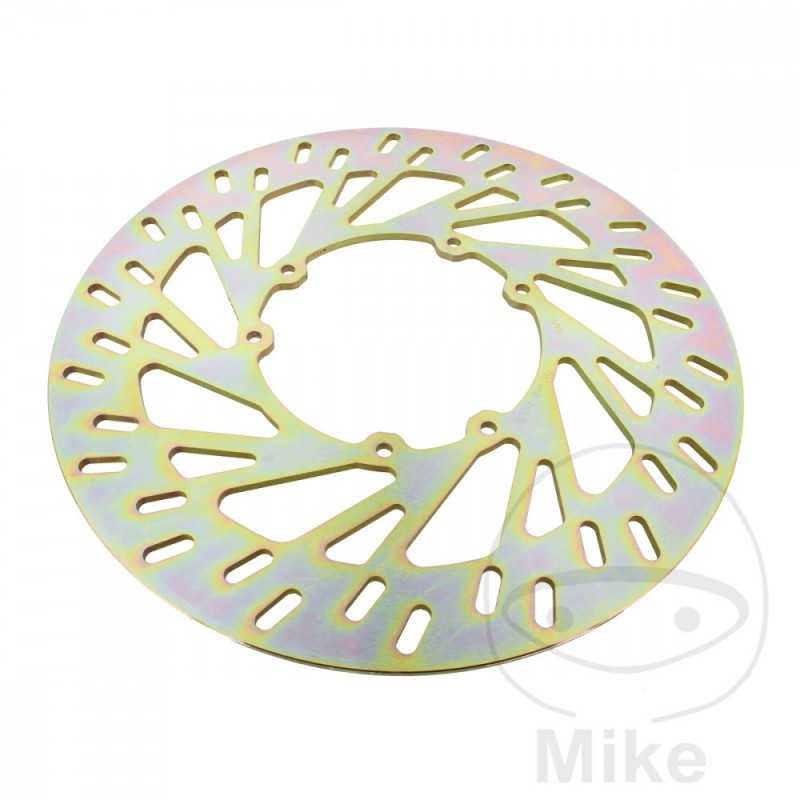

EBC Left brake disc 760.04.64
€114.07
Tax included
EBC HPSR brake disc, rigid version. MADE IN THE UK.
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 108.3MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DERBI SENDA 125 R 12 CV, 9 KW 1CIL. SC1B1A BASTIDORES: --- 2004
DERBI SENDA 125 R 12 CV, 9 KW 1CIL. SC1B1A BASTIDORES: VTHSC1B1A5H270708-- 2005-2006
DERBI SENDA 125 SM 11,4 CV, 8,4 KW 1CIL. SC2B1A BASTIDORES: VTHSC2B1A5H269375-- 2007
DERBI SENDA 125 SM 12 CV, 9 KW 1CIL. SC2B1A BASTIDORES: --- 2004
DERBI SENDA 125 SM 12 CV, 9 KW 1CIL. SC2B1A BASTIDORES: VTHSC2B1A5H269375-- 2005-2006
DERBI SENDA 125 SM BAJA 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2007-2009
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- The smallest manufacturing tolerances.
- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.
- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 108.3MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
DERBI SENDA 125 R 12 CV, 9 KW 1CIL. SC1B1A BASTIDORES: --- 2004
DERBI SENDA 125 R 12 CV, 9 KW 1CIL. SC1B1A BASTIDORES: VTHSC1B1A5H270708-- 2005-2006
DERBI SENDA 125 SM 11,4 CV, 8,4 KW 1CIL. SC2B1A BASTIDORES: VTHSC2B1A5H269375-- 2007
DERBI SENDA 125 SM 12 CV, 9 KW 1CIL. SC2B1A BASTIDORES: --- 2004
DERBI SENDA 125 SM 12 CV, 9 KW 1CIL. SC2B1A BASTIDORES: VTHSC2B1A5H269375-- 2005-2006
DERBI SENDA 125 SM BAJA 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2007-2009
760.04.64
10 Items
Data sheet
- VERSION
- RIGID
- QUANTITY OF HOLES
- 6
- EXTERNAL DIAMETER
- 300 MM
- CIRCLE MEASUREMENT
- 125MM
- HOLE DIAMETER
- 6.5 MM
- INSIDE DIAMETER
- 125MM
- THICKNESS
- 4 MM
