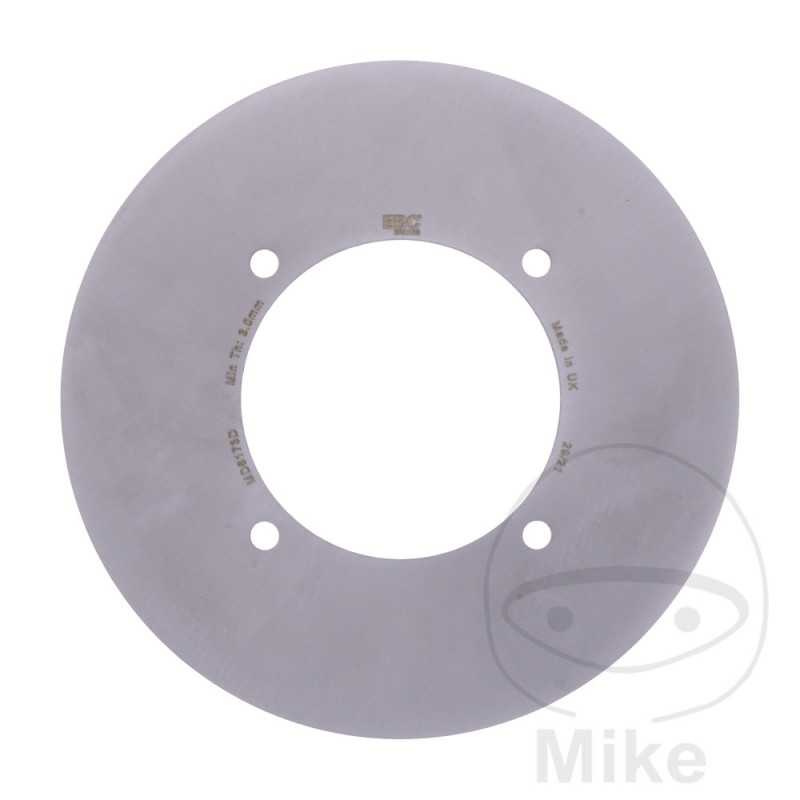

EBC HPSR brake disc, rigid version. MADE IN UK. The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel with an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pads during braking. Only in this area can rust form more easily during extended life. The brake discs are drilled in Vogelschwingendesign to get along with as few holes as possible while optimizing the cleaning of the brake disc with rainwater and brake dust. The fewer holes installed, the better wet braking and less wear. - Brake ring machined in low carbon HPSR forged steel. - Therefore, there is no distortion of the brake disc even at maximum load. - Without vitrification of the braking surface, the coefficient of friction remains constant. - perforated brake surface with optimized hole pattern. - Galvanized for protection against corrosion. - Lower manufacturing tolerances. - EBC recommends EBC Double-H Sinter brake pads for best braking performance. - Independent design. OUTER DIAMETER: 202MM INSIDE DIAMETER: 95.2MM CIRCLE SIZE: 115 MM QUANTITY OF HOLES: 4 HOLE DIAMETER: 8.5 MM THICKNESS: 3.5MM VERSION: RIGID APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: Arctic Cat/Textron Alterra 1000 TRV XT 4WD EFT EPS 2cil. - Bastidores: --- 2019 Arctic Cat/Textron Alterra 1000 TRV XT EPS EFT 2cil. - Bastidores: --- 2017-2018 Arctic Cat/Textron Alterra 450 4WD 1cil. - Bastidores: --- 2021-2022 Arctic Cat/Textron Alterra 450 4WD EFT 1cil. - Bastidores: --- 2019 Arctic Cat/Textron Alterra 450 automática EFT 1cil. - Bastidores: --- 2016-2018 Arctic Cat/Textron Cat 1000 EFT 2cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 1000 GT EFT 2cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 1000 H2 EPS EFT 2cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 1000 TRV 4WD 2cil. - Bastidores: --- 2009-2010 Arctic Cat/Textron Cat 1000 TRV Cruiser 4WD 2cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 1000 TRV Cruiser EFT 2cil. - Bastidores: --- 2010 Arctic Cat/Textron Cat 1000 TRV Cruiser EPS EFT 2cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Cat 1000 TRV GT EPS EFT 2cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 1000 TRV H2 EFT 2cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 1000 TRV H2 EPS EFT 2cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 1000 TRV Limited Edition EPS EFT 2cil. - Bastidores: --- 2015 Arctic Cat/Textron Cat 1000 TRV XT EPS EFT 66,8/20,4 CV, 49,1/15 kw 2cil. - Bastidores: --- 2013-2014 Arctic Cat/Textron Cat 1000 TRV XT ESP EFT 66,8/20,4 CV 49,1/15 kw 2cil. - Bastidores: --- 2016 Arctic Cat/Textron Cat 1000 TRV XT ESP EFT 66,8/20,4 CV, 49,1/15 kw 2cil. - Bastidores: --- 2015 Arctic Cat/Textron Cat 250 2WD 1cil. - Bastidores: --- 1999-2005 Arctic Cat/Textron Cat 250 4WD 1cil. - Bastidores: --- 2001-2005 Arctic Cat/Textron Cat 250 Automatik 2WD automática 1cil. - Bastidores: --- 2006-2009 Arctic Cat/Textron Cat 300 2WD 1cil. - Bastidores: --- 1998-2003 Arctic Cat/Textron Cat 300 4WD 1cil. - Bastidores: --- 1998-2005 Arctic Cat/Textron Cat 350 CR /EFT 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Cat 366 FIS 4WD 1cil. - Bastidores: --- 2008-2010 Arctic Cat/Textron Cat 366 FIS SE 4WD 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 400 2WD 1cil. - Bastidores: --- 1998-2001 Arctic Cat/Textron Cat 400 4WD 1cil. - Bastidores: --- 1998-2006 Arctic Cat/Textron Cat 400 Automatik 2WD automática EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 400 Automatik 4WD 1cil. - Bastidores: --- 2003-2007 Arctic Cat/Textron Cat 400 Automatik 4WD automática EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 400 Euro 4WD 1cil. - Bastidores: --- 2008-2009 Arctic Cat/Textron Cat 400 Euro automática 2WD 1cil. - Bastidores: --- 2008-2010 Arctic Cat/Textron Cat 400 FIS 2WD 1cil. - Bastidores: --- 2002-2004 Arctic Cat/Textron Cat 400 FIS 4WD 1cil. - Bastidores: --- 2002-2008 Arctic Cat/Textron Cat 400 FIS Automatik 2WD automática 1cil. - Bastidores: --- 2003-2004 Arctic Cat/Textron Cat 400 FIS Automatik 3 in 1 4WD 1cil. - Bastidores: --- 2006-2008 Arctic Cat/Textron Cat 400 FIS Automatik 4WD 1cil. - Bastidores: --- 2003-2008 Arctic Cat/Textron Cat 400 TBX Automatik 4WD 1cil. - Bastidores: --- 2004-2006 Arctic Cat/Textron Cat 400 TRV Automatik 4WD 1cil. - Bastidores: --- 2006-2012 Arctic Cat/Textron Cat 425 CR /EFT 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Cat 425 CR SE 4WD 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 450 4WD 1cil. - Bastidores: --- 2010-2012 Arctic Cat/Textron Cat 450 4WD 20,4/20,1 CV, 15/14,8 kw 1cil. - Bastidores: --- 2013 Arctic Cat/Textron Cat 450 automática EFT 20,4/20,1 CV, 15/14,8 kw 1cil. - Bastidores: --- 2014-2015 Arctic Cat/Textron Cat 450 TRV 4WD 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Cat 450 TRV GT 4WD automática EFT 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 454 2WD 1cil. - Bastidores: --- 1998 Arctic Cat/Textron Cat 454 4WD 1cil. - Bastidores: --- 1998 Arctic Cat/Textron Cat 500 4WD 1cil. - Bastidores: --- 1998-2002 Arctic Cat/Textron Cat 500 Automatik 4WD 1cil. - Bastidores: --- 2000-2002 Arctic Cat/Textron Cat 500 FIS 4WD 1cil. - Bastidores: --- 2002-2009 Arctic Cat/Textron Cat 500 FIS Automatik 3 in 1 4WD 1cil. - Bastidores: --- 2008-2009 Arctic Cat/Textron Cat 500 FIS Automatik 4WD 1cil. - Bastidores: --- 2002-2008 Arctic Cat/Textron Cat 500 FIS Automatik automática EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 500 TBX Automatik 4WD 1cil. - Bastidores: --- 2002-2006 Arctic Cat/Textron Cat 500 TRV Automatik 4WD 1cil. - Bastidores: --- 2003-2008 Arctic Cat/Textron Cat 500 TRV Automatik automática EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 550 EFT 1cil. - Bastidores: --- 2010-2012 Arctic Cat/Textron Cat 550 EFT 39,4/20,4 CV, 29/15 kw 1cil. - Bastidores: --- 2013-2014 Arctic Cat/Textron Cat 550 GT EFT 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 550 H1 4WD 1cil. - Bastidores: --- 2009-2010 Arctic Cat/Textron Cat 550 H1 EFT 1cil. - Bastidores: --- 2010-2011 Arctic Cat/Textron Cat 550 H1 Limited Edition EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 550 Limited Edition EFT 1cil. - Bastidores: --- 2012-2014 Arctic Cat/Textron Cat 550 TRV 4WD 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 550 TRV Cruiser EPS EFT 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 550 TRV EFT 1cil. - Bastidores: --- 2010-2012 Arctic Cat/Textron Cat 550 TRV EFT 39,4/20,4 CV, 29/15 kw 1cil. - Bastidores: --- 2013 Arctic Cat/Textron Cat 550 TRV GT EPS 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 550 TRV H1 4WD 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 550 TRV H1 Cruiser EPS EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 550 TRV H1 EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 550 TRV H1 EPS 1cil. - Bastidores: --- 2010 Arctic Cat/Textron Cat 550 TRV H1 GT EPS 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 550 TRV Limited Edition EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 550 TRV Limited Edition EPS EFT 39,4/20,4 CV, 29/15 kw 1cil. - Bastidores: --- 2013-2015 Arctic Cat/Textron Cat 550 TRV XT EPS EFT 39,4/20,4 CV, 29/15 kw 1cil. - Bastidores: --- 2013-2016 Arctic Cat/Textron Cat 650 H1 3 in 1 4WD 1cil. - Bastidores: --- 2006-2009 Arctic Cat/Textron Cat 650 H1 4WD 1cil. - Bastidores: --- 2005-2012 Arctic Cat/Textron Cat 650 H1 TBX 4WD 1cil. - Bastidores: --- 2007-2009 Arctic Cat/Textron Cat 650 H1 TRV 4WD 1cil. - Bastidores: --- 2007 Arctic Cat/Textron Cat 650 H1 TRV EFT 1cil. - Bastidores: --- 2008-2009 Arctic Cat/Textron Cat 650 V2 4WD 2cil. - Bastidores: --- 2004-2007 Arctic Cat/Textron Cat 700 3 in 1 4WD 2cil. - Bastidores: --- 2007 Arctic Cat/Textron Cat 700 4WD 2cil. - Bastidores: --- 2007 Arctic Cat/Textron Cat 700 diesel EFT 2cil. - Bastidores: --- 2008-2011 Arctic Cat/Textron Cat 700 EFT 1cil. - Bastidores: --- 2011-2013 Arctic Cat/Textron Cat 700 EFT 42/20,4 CV, 30,9/15 kw 1cil. - Bastidores: --- 2014-2015 Arctic Cat/Textron Cat 700 FIS 4WD 1cil. - Bastidores: --- 2006-2008 Arctic Cat/Textron Cat 700 FIS H1 4WD 1cil. - Bastidores: --- 2008 Arctic Cat/Textron Cat 700 GT EFT 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 700 H1 EFT 1cil. - Bastidores: --- 2009-2011 Arctic Cat/Textron Cat 700 H1 EPS EFT 1cil. - Bastidores: --- 2010 Arctic Cat/Textron Cat 700 H1 ESP EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 700 H1 Limited Edition EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 700 TRV 4WD 1cil. - Bastidores: --- 2010-2011 Arctic Cat/Textron Cat 700 TRV Cruiser EFT 1cil. - Bastidores: --- 2008-2010 Arctic Cat/Textron Cat 700 TRV Cruiser EPS EFT 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Cat 700 TRV EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 700 TRV EFT 44,6/20,4 CV, 32,8/15 kw 1cil. - Bastidores: --- 2016 Arctic Cat/Textron Cat 700 TRV GT EPS EFT 1cil. - Bastidores: --- 2012 Arctic Cat/Textron Cat 700 TRV H1 EFT 1cil. - Bastidores: --- 2009 Arctic Cat/Textron Cat 700 TRV H1 EPS 1cil. - Bastidores: --- 2010 Arctic Cat/Textron Cat 700 TRV H1 EPS EFT 1cil. - Bastidores: --- 2011 Arctic Cat/Textron Cat 700 TRV Limited Edition EFT 1cil. - Bastidores: --- 2008 Arctic Cat/Textron Cat 700 TRV Limited Edition EPS EFT 1cil. - Bastidores: --- 2015 Arctic Cat/Textron Cat 700 TRV Limited Edition EPS EFT 44,6/20,4 CV, 32,8/15 kw 1cil. - Bastidores: --- 2016 Arctic Cat/Textron Prowler 1000 XTZ 4WD 2cil. - Bastidores: --- 2009-2010 Arctic Cat/Textron Prowler 1000 XTZ EPS 2cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Prowler 1000 XTZ EPS 67,3/20,4 CV, 49,5/15 kw 2cil. - Bastidores: --- 2013-2014 Arctic Cat/Textron Prowler 700 HDX EPS 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron Prowler 700 HDX EPS 46,2/20,4 CV, 34/15 kw 1cil. - Bastidores: --- 2013-2015 Arctic Cat/Textron Thundercat 1000 4WD 2cil. - Bastidores: --- 2008-2009 Arctic Cat/Textron Thundercat 1000 EFT 2cil. - Bastidores: --- 2010 Arctic Cat/Textron Wildcat 1000 4 Limited Edition 4WD EPS 4 plazas 78,6/19,7 CV, 57,8/14,5 kw 2cil. - Bastidores: --- 2014 Arctic Cat/Textron Wildcat 1000 GT 4WD EPS 4 plazas 2cil. - Bastidores: --- 2012-2014 Arctic Cat/Textron Wildcat 1000 X 4WD EPS 2 plazas 90/19,7 CV, 66/14,5 kw 2cil. - Bastidores: --- 2014-2016 Arctic Cat/Textron Wildcat 1000 X4 4WD EPS 4 plazas 90/19,7 CV, 66/14,5 kw 2cil. - Bastidores: --- 2014-2016 Arctic Cat/Textron XC 450 EFT 1cil. - Bastidores: --- 2011-2012 Arctic Cat/Textron XC 450 EFT 1cil. - Bastidores: --- 2017-2017 Arctic Cat/Textron XC 450 EFT 20,4/20,1 CV, 15/14,8 kw 1cil. - Bastidores: --- 2013-2015 Arctic Cat/Textron XC 450 EFT 34/20,1 CV, 25/14,8 kw 1cil. - Bastidores: --- 2016 Kymco Grumbler 450 i 4X4 Offroad 20,3 CV, 14,9 kw 1cil. - Bastidores: --- 2013-2016 Kymco Grumbler 450 i 4X4 Offroad LOF 30 CV, 22 kw 1cil. - Bastidores: --- 2013-2016 Kymco Maxxer 450 i 4X2 Offroad Sport 20,3 CV, 14,9 kw 1cil. A40410 A4 Bastidores: RFBA40410-- 2015-2016 Kymco Maxxer 450 i 4X2 Offroad Sport euro4 LOF 30 CV, 22 kw 1cil. A41411 Bastidores: RFBA41411-- 2018-2019 Kymco Maxxer 450 i 4X2 Offroad Sport LOF 30 CV, 22 kw 1cil. A40410 A4 Bastidores: RFBA40410-- 2015-2017 Kymco Maxxer 450 i 4X2 Offroad Sport LOF 30 CV, 22 kw 1cil. A41411 Bastidores: RFBA41411-- 2020-2021 Kymco Maxxer 450 i 4X4 Offroad 20,3 CV, 14,9 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2010-2016 Kymco Maxxer 450 i 4X4 Offroad LOF 30 CV, 22 kw 1cil. - Bastidores: --- 2018-2020 Kymco Maxxer 450 i 4X4 Offroad LOF 30 CV, 22 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2014-2017 Kymco Maxxer 450 i 4X4 Onroad 20,3 CV, 14,9 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2012-2016 Kymco Maxxer 450 i 4X4 Onroad LOF 30 CV, 22 kw 1cil. A40200 A4 Bastidores: RFBA40200-- 2014-2016 Kymco MXU 400 4X4 Offroad 20 CV, 14,8 kw 1cil. A40000 Bastidores: RFBA40000-- 2008-2017 Kymco MXU 500 4X4 DX IRS 20,3 CV, 14,9 kw 1cil. A51001 A5 Bastidores: RFBA51001-- Kymco MXU 500 4X4 DX IRS LOF 34 CV, 25 kw 1cil. Z20001 Z2 Bastidores: RFBZ20001-- 2012-2014 Kymco MXU 500 4X4 IRS 20,3 CV, 14,9 kw 1cil. A50000 A5 Bastidores: RBFA50000-- 2011-2013 Kymco MXU 500 4X4 IRS LOF 34 CV, 25 kw 1cil. Z20000 Z2 Bastidores: RFBZ20000-- 2012-2017 Kymco MXU 550 EXi LOF 35 CV, 26 kw 1cil. Z21001 Z2 Bastidores: RFBZ21001-- 2013-2014 Kymco MXU 550 i LOF 37 CV, 27 kw 1cil. Z21002 Z2 Bastidores: RFBZ21002-- 2015-2019 Kymco MXU 550 i Offroad T3B ABS 35,4 CV, 26 kw 1cil. - Bastidores: --- 2021-2022 Kymco MXU 550 i T Offroad LOF 35,4 CV, 26 kw 1cil. Z23000 Z2 Bastidores: RFBZ23000-- 2020 Kymco MXU 550 i T3B EPS 45 CV, 34 kw 1cil. - Bastidores: --- 2021-2022 Kymco MXU 550 i T3B Euro4 34 CV, 25 kw 1cil. - Bastidores: --- 2020-2021 Kymco UXV 700 i Turf EPS 45 CV, 33 kw 1cil. U12211 Bastidores: RFBU12211-- 2020 Kymco UXV 700 i Turf LOF 45 CV, 33 kw 1cil. - Bastidores: --- 2022 Kymco UXV 700 i Turf LOF 45 CV, 33 kw 1cil. U11110 U1 Bastidores: RFBU11110-- 2014-2018 Kymco UXV 700 i Turf LOF 45 CV, 33 kw 1cil. U11110 U1 Bastidores: RFBU11110-- 2020-2020 Kymco UXV 700 i Turf LOF EPS euro4 45 CV, 33 kw 1cil. U12211 Bastidores: RFBU12211-- 2019 Kymco UXV 700 i Turf LOF euro4 45 CV, 33 kw 1cil. U11110 U1 Bastidores: RFBU11110-- 2019
Reference 760.04.55
In stock 10 Items
Data sheet
CIRCLE MEASUREMENT 115 MM HOLE DIAMETER 8.5 MM INSIDE DIAMETER 115 MM VERSION RIGID QUANTITY OF HOLES 4 EXTERNAL DIAMETER 202MM THICKNESS 3.5 MM
