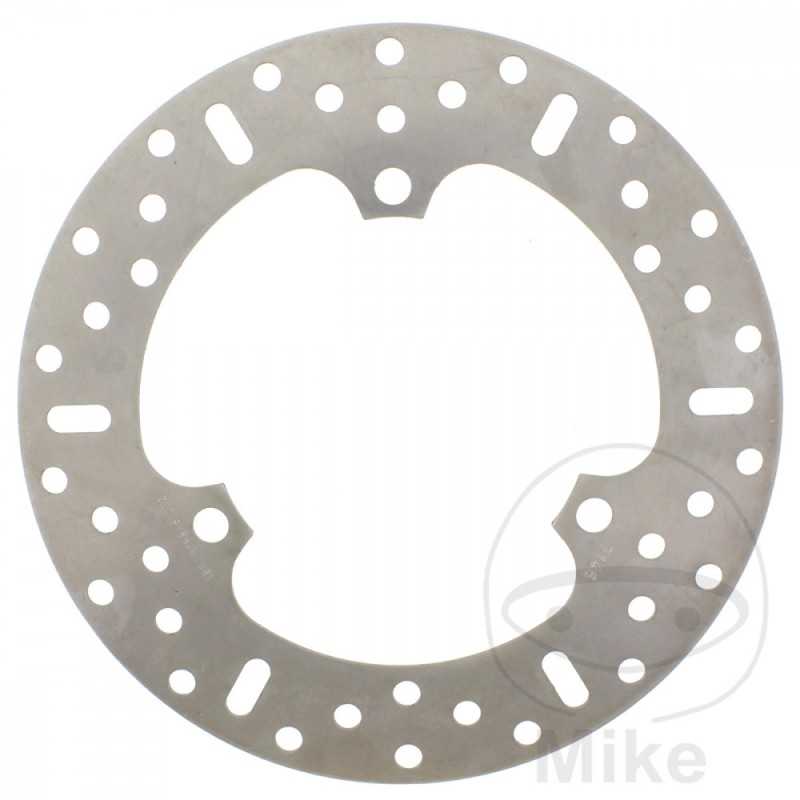

EBC Stainless steel brake disc for motorcycle SCOOTER 760.04.02
€45.21
€53.25
Save 15.11%Tax included
EBC brake discs. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 128 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Medley 125 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
Piaggio Medley 125 3V ie Special Edition ABS 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2018-2019
Piaggio Medley 125 S 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE787 2CM2 Bastidores: SE787 henceforth68001-- 2015
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE78K 2CMP Bastidores: SE78K-151501-- 2016
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE782 2CM1 Bastidores: SE782 henceforth19204-- 2014-2015
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE78F 2CMJ Bastidores: SE78F-131901-- 2016
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 128 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Medley 125 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
Piaggio Medley 125 3V ie Special Edition ABS 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2018-2019
Piaggio Medley 125 S 3V ie ABS IGET 12,2 CV, 9 kw 1cil. MA0120 Bastidores: RP8MA0120 henceforth0001001-- 2016-2019
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE787 2CM2 Bastidores: SE787 henceforth68001-- 2015
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE78K 2CMP Bastidores: SE78K-151501-- 2016
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE782 2CM1 Bastidores: SE782 henceforth19204-- 2014-2015
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE78F 2CMJ Bastidores: SE78F-131901-- 2016
760.04.02
10 Items
Data sheet
- EXTERNAL DIAMETER
- 220 MM
- CIRCLE MEASUREMENT
- 128MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 128MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 3
- THICKNESS
- 3.5 MM
