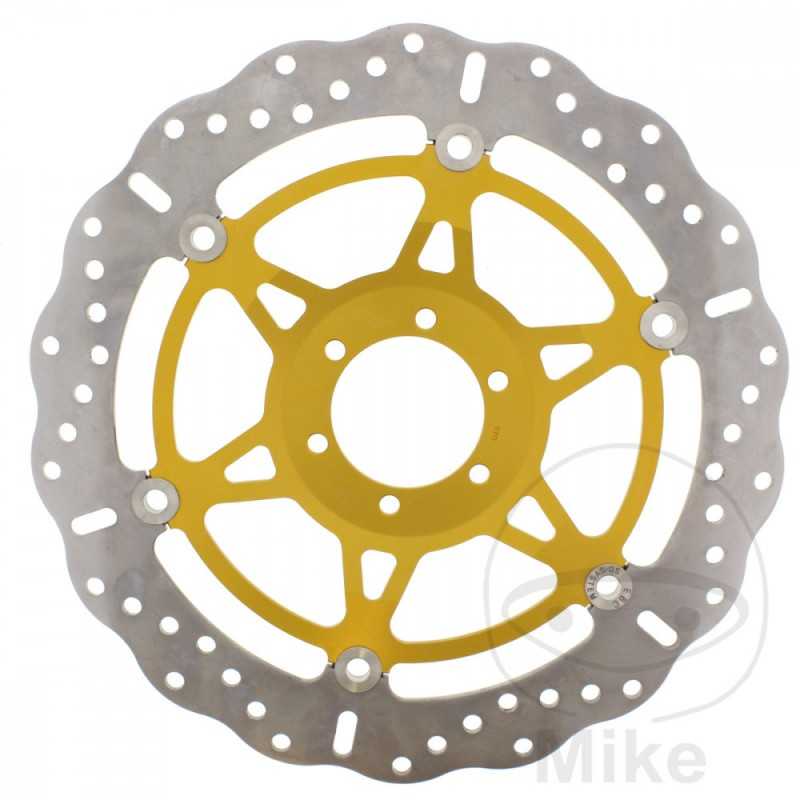

EBC Stainless steel brake disc for motorcycle CONTOUR X 760.04.00

EBC X / XC series - Fully floating brake discs for the front wheel

These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than conventional heat-treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is further increased.

The weight of the new X and XC series is reduced by an additional 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs.

The new rotors feature EBC's unique and patented SD system, whose square rivets in the brake disc recesses, under the heat generated during braking, allow unrestricted expansion of the outer and inner rings without affecting the riveted joint.

Such deterioration occurs when the brake disc is heated by heavy braking and the outer ring touches the (usually round) rivets that separate the outer ring from the inner ring. The new EBC system avoids this problem, which causes 100% of brake disc defects caused by disc distortion and vibration.

What is the SD system? It is the new square riveting system from EBC. This system completely prevents the distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 64.2MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
PADDING: 9.8MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA DORSODURO 750 SMV ABS 34 CV, 25 KW 2CIL. SM000/SMA00/SMC00 BASTIDORES: --- 2011-2013
APRILIA DORSODURO 750 SMV ABS 48 CV, 35 KW 2CIL. SMC01 BASTIDORES: --- 2015-2017
APRILIA DORSODURO 750 SMV ABS 91 CV, 67 KW 2CIL. SM000/SMA00/SMC00 BASTIDORES: --- 2009-2013
APRILIA DORSODURO 750 SMV ABS 91 CV, 67 KW 2CIL. SMC01 BASTIDORES: --- 2014-2017
APRILIA DORSODURO 750 SMV FACTORY 34 CV, 25 KW 2CIL. SMB00/SMB01 BASTIDORES: --- 2011-2013
APRILIA DORSODURO 750 SMV FACTORY 91 CV, 67 KW 2CIL. SMB00/SMB01 BASTIDORES: --- 2010-2013
APRILIA DORSODURO 750 SMV FACTORY ABS 34 CV, 25 KW 2CIL. SMB00/SMB01 BASTIDORES: --- 2011-2013
APRILIA DORSODURO 750 SMV FACTORY ABS 91 CV, 67 KW 2CIL. SMB00/SMB01 BASTIDORES: --- 2010-2013
APRILIA SHIVER 750 SL 34 CV, 25 KW 2CIL. RAE00 BASTIDORES: --- 2010-2013
APRILIA SHIVER 750 SL 48 CV, 35 KW 2CIL. RAE00 BASTIDORES: --- 2014-2016
APRILIA SHIVER 750 SL 95 CV, 70 KW 2CIL. RAE00 BASTIDORES: --- 2010-2016
APRILIA SHIVER 750 SL ABS 34 CV, 25 KW 2CIL. RAG00 BASTIDORES: --- 2010-2013
APRILIA SHIVER 750 SL ABS 48 CV, 35 KW 2CIL. RAG00 BASTIDORES: --- 2014-2017
APRILIA SHIVER 750 SL ABS 95 CV, 70 KW 2CIL. RAG00 BASTIDORES: --- 2010-2017
