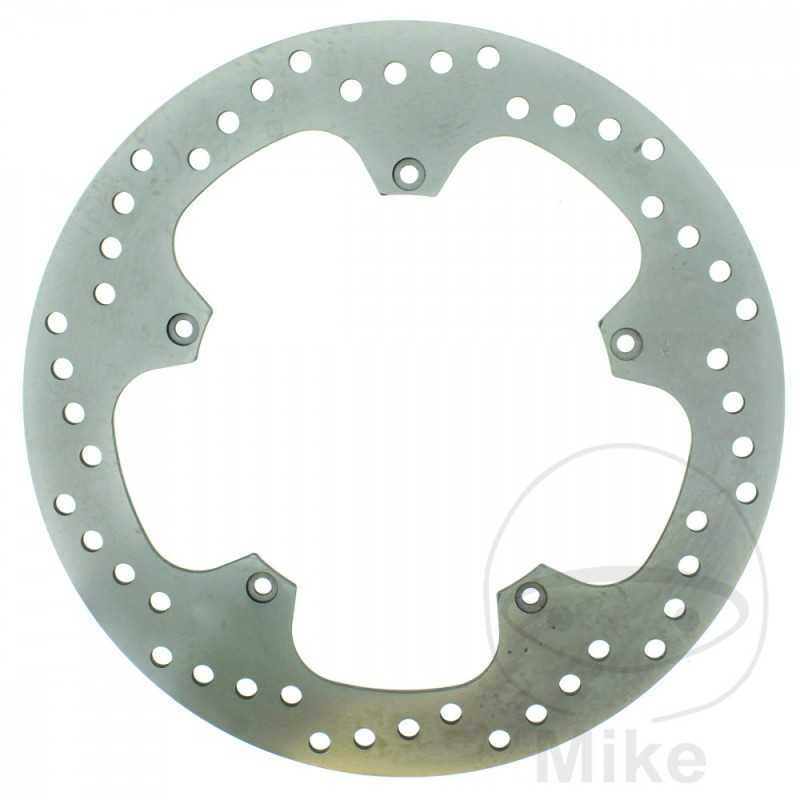

EBC Left brake disc 760.03.84

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 155.2MM
CIRCLE SIZE: 170 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA RS 50 EXTREMA/REPLICA 2,7 CV, 2 KW 1CIL. PG000 BASTIDORES: --- 2001
APRILIA RS 50 EXTREMA/REPLICA 2,7 CV, 2 KW 1CIL. PG000 X BASTIDORES: --- 1999
APRILIA RS 50 EXTREMA/REPLICA 2,7 CV, 2 KW 1CIL. PG000 Y BASTIDORES: --- 2000
APRILIA RS 50 EXTREMA/REPLICA 2,7 CV, 2 KW 1CIL. SE000 BASTIDORES: --- 2002-2003
APRILIA RS 50 REPLICA 2 CV, 1,4 KW 1CIL. SE001 BASTIDORES: --- 2004-2005
YAMAHA TZR 50 1,8/8,1 CV, 1,3/5,94 KW 1CIL. RA031 5WX1 BASTIDORES: RA031 henceforth04972-- 2003
YAMAHA TZR 50 1,8/8,1 CV, 1,3/5,94 KW 1CIL. RA031 5WX5 BASTIDORES: RA031 henceforth08699-- 2004
YAMAHA TZR 50 1,8/8,1 CV, 1,3/5,94 KW 1CIL. RA031 5WXA BASTIDORES: RA031 henceforth17569-- 2005
YAMAHA TZR 50 1,8/8,1 CV, 1,3/5,94 KW 1CIL. RA031 5WXG BASTIDORES: RA031 henceforth26490-- 2006
YAMAHA TZR 50 1,8/8,1 CV, 1,3/5,94 KW 1CIL. RA033 5WXL BASTIDORES: RA033 henceforth00019-- 2007
YAMAHA TZR 50 2,7 CV, 2 KW 1CIL. RA033 1HD1 BASTIDORES: RA033 henceforth16877-- 2011
YAMAHA TZR 50 2,7 CV, 2 KW 1CIL. RA033 5WXR BASTIDORES: RA033 henceforth08383-- 2008
YAMAHA TZR 50 2,7 CV, 2 KW 1CIL. RA033 5WXV BASTIDORES: RA033 henceforth13427-- 2009
YAMAHA TZR 50 2,7 CV, 2 KW 1CIL. RA033 5WXX BASTIDORES: RA033 henceforth14302-- 2010
YAMAHA TZR 50 2,7 CV, 2 KW 1CIL. RA041 2AS1 BASTIDORES: RA041 henceforth00129-- 2012-2016
YAMAHA TZR 50 WGP ANNIVERSARY 2,7 CV, 2 KW 1CIL. RA041 2AS3 BASTIDORES: RA041 henceforth00365-- 2012-2013
