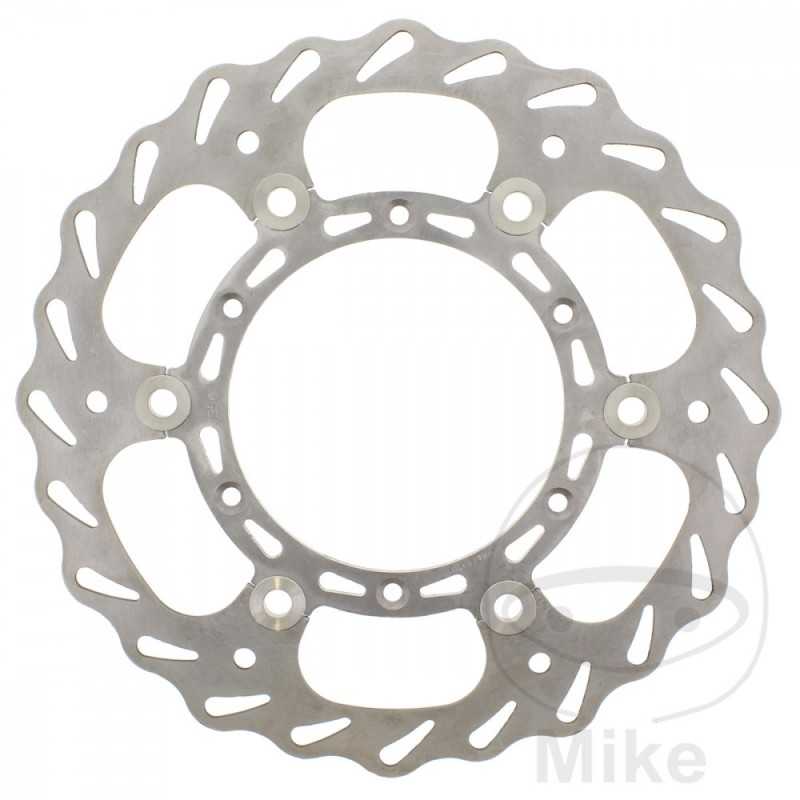

EBC Stainless steel brake disc for motorcycle CONTOUR 760.03.82

EBC Contour Brake Disc

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.

In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears off in the contact area of the brake pads already during braking.

Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

The floating brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses under the heat generated during braking allow unlimited expansion of the outer and inner ring without affecting the riveted joint.

- Cutting-edge Contour design

- Stiff, super-light brake disc, completely new profile

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- Independent design.

- The thickness of the brake disc may vary from the original part.

MADE IN THE UK
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 3mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Fantic XE 125 2T 12,2 CV, 9 kw 1cil. - Bastidores: --- 2020-2022
Fantic XEF 250 4T Racing Enduro 1cil. - Bastidores: --- 2021-2022
Fantic XEF 250 4T Trail Enduro 21,5 CV, 15,8 kw 1cil. - Bastidores: --- 2021-2022
Fantic XEF 450 1cil. - Bastidores: --- 2022
Fantic XX 125 2T Cross 1cil. - Bastidores: --- 2020-2022
Fantic XX 250 2T Cross 1cil. - Bastidores: --- 2021-2022
Fantic XXF 450 Cross 1cil. - Bastidores: --- 2022
Yamaha WR 250 F 1cil. CG36W 2GBD Bastidores: CG36W henceforth04305-- 2017
Yamaha WR 250 F 1cil. CG36W 2GBM Bastidores: CG36W henceforth06676-- 2019
Yamaha WR 250 F 1cil. CG42W BAK4 Bastidores: CG42W henceforth00351-- 2020
Yamaha WR 250 F 1cil. RE251EL 2GBD Bastidores: RE251EL-700007-- 2017
Yamaha WR 250 F 1cil. RE251EL 2GBH Bastidores: RE251EL-800039-- 2018
Yamaha WR 250 F GP 1cil. - Bastidores: --- 2018-2019
Yamaha WR 450 F 1cil. CJ19W 2GC3 Bastidores: CJ19W henceforth00073-- 2016
Yamaha WR 450 F 1cil. CJ19W 2GC8 Bastidores: CJ19W henceforth02513-- 2017
Yamaha WR 450 F 1cil. CJ25W B7R4 Bastidores: CJ25W henceforth00371-- 2019
Yamaha WR 450 F 1cil. CJ25W B7R9 Bastidores: CJ25W henceforth01746-- 2020
Yamaha WR 450 F 1cil. CJ28W BDB4 Bastidores: CJ28W henceforth00477-- 2021
Yamaha WR 450 F 1cil. CJ28W BDB8 Bastidores: CJ28W henceforth02507-- 2022
Yamaha WR 450 F 1cil. RE451EL 2GC8 Bastidores: RE451EL-700006-- 2017
Yamaha WR 450 F 1cil. RE451EL/ CJ19W 2GCC Bastidores: RE451EL-800010-- 2018
Yamaha WR 450 F 1cil. RE451W 2GC8 Bastidores: RE451WL-700532-- 2017
Yamaha WR 450 F GP 1cil. - Bastidores: --- 2018-2019
Yamaha YZ 125 1cil. CE16C 1SRN Bastidores: CE16C henceforth29632-- 2017
Yamaha YZ 125 1cil. CE16C 1SRT Bastidores: CE16C henceforth33073-- 2018
Yamaha YZ 125 1cil. CE16C B0V2 Bastidores: CE16C henceforth36983-- 2019
Yamaha YZ 125 1cil. CE16C B0V6 Bastidores: CE16C henceforth40775-- 2020
Yamaha YZ 250 2T 1cil. CG23C 1SSN Bastidores: CG23C henceforth31425-- 2017
Yamaha YZ 250 2T 1cil. CG23C 1SST Bastidores: CG23C henceforth33922-- 2018
Yamaha YZ 250 2T 1cil. CG23C B9U2 Bastidores: CG23C henceforth36517-- 2019
Yamaha YZ 250 2T 1cil. CG23C B9U6 Bastidores: CG23C henceforth38910-- 2020
Yamaha YZ 250 2T 1cil. CG23C B9UA Bastidores: CG23C henceforth41214-- 2021
Yamaha YZ 250 2T 1cil. CG44C BCR2 Bastidores: --- 2022
Yamaha YZ 250 2T Monster Energy Edition 1cil. GC44C BCR6 Bastidores: CG44C henceforth00917-- 2022
Yamaha YZ 250 F 4T 1cil. CG34C 1SMA Bastidores: CG34C henceforth15310-- 2016
Yamaha YZ 250 F 4T 1cil. CG39C 1SMJ Bastidores: CG39C henceforth00024-- 2017
Yamaha YZ 250 F 4T 1cil. CG39C 1SMN Bastidores: CG39C henceforth08344-- 2018
Yamaha YZ 250 F 4T 1cil. CG40C B7B2 Bastidores: CG40C henceforth00381-- 2019
Yamaha YZ 250 F 4T 1cil. CG40C B7B6 Bastidores: CG40C henceforth09230-- 2020
Yamaha YZ 250 F 4T 1cil. CG40C B7BB Bastidores: CG40C henceforth16773-- 2021
Yamaha YZ 250 F 4T 1cil. CG40C B7BL Bastidores: CG40C henceforth25813-- 2022
Yamaha YZ 250 F 4T Anniversary 1cil. CG34C 1SMF Bastidores: CG34C henceforth15640-- 2016
Yamaha YZ 250 F 4T Monster Energy Edition 1cil. CG40C B7BG Bastidores: CG40C henceforth16873-- 2021
Yamaha YZ 250 F 4T Monster Energy Edition 1cil. CG40C B7BS Bastidores: CG40C henceforth26135-- 2022
Yamaha YZ 450 F 1cil. CJ21C B112 Bastidores: CJ21C henceforth00027-- 2016
Yamaha YZ 450 F 1cil. CJ21C B119 Bastidores: CJ21C henceforth06144-- 2017
Yamaha YZ 450 F 1cil. CJ22C BR92 Bastidores: CJ22C henceforth00322-- 2018
Yamaha YZ 450 F 1cil. CJ23C BR96 Bastidores: CJ23C henceforth00341-- 2019
Yamaha YZ 450 F 1cil. CJ26C B2W2 Bastidores: CJ26C henceforth00561-- 2020
Yamaha YZ 450 F 1cil. CJ26C B2W6 Bastidores: CJ26C henceforth05748-- 2021
Yamaha YZ 450 F 1cil. CJ26C B2WD Bastidores: CJ26C henceforth12068-- 2022
Yamaha YZ 450 F Anniversary 1cil. CJ21C B116 Bastidores: CJ21C henceforth00317-- 2016
Yamaha YZ 450 F Monster Energy Edition 1cil. CJ26C B2WA Bastidores: CJ26C henceforth06871-- 2021
Yamaha YZ 450 F Monster Energy Edition 1cil. CJ26C B2WH Bastidores: --- 2022
