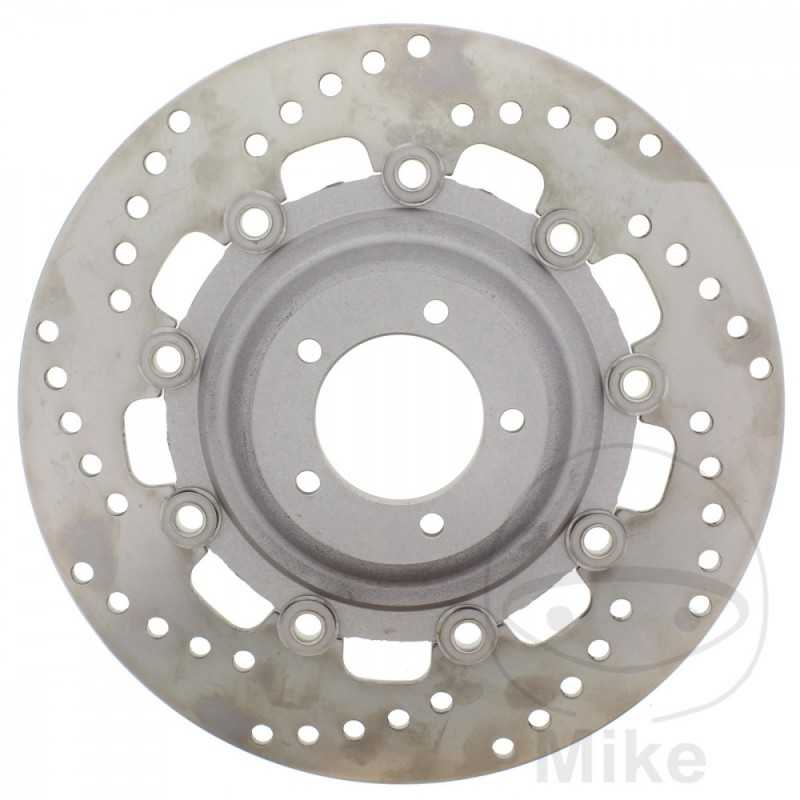

EBC right brake disc 760.03.64

EBC Prolite brake disc, full float

EBC replaces the original rigid disc with a Full Floater brake disc.

The complete float, which is very complex and expensive to manufacture, offers decisive advantages when it comes to braking. The brake ring, which is sawn, drilled and ground from forged HPSR steel bars, can expand without hindrance and without deformation even during repeated hard braking, for example, when going down mountain passes. The low carbon content of the HPSR steel used also proves its worth in this case as it ensures very little structural change in the steel under the continuous thermal stress of heating and cooling the brake disc in harsh road use. An EBC Full Floater brake disc is always a significant safety gain.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 26MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 650 SC CUSTOM 50 CV, 37 KW 4CIL. RC08 C BASTIDORES: RC08-3000002-RC08-3099999 1982-1983
HONDA CB 650 SC CUSTOM 63 CV, 46 KW 4CIL. RC08 C BASTIDORES: RC08-2000023-RC08-2099999 1982-1983
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 A BASTIDORES: RC01-2115751-RC01-2118618 1980
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 B BASTIDORES: RC01-2300006-RC01-2399999 1981-1982
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 Z BASTIDORES: RC01-2000121-RC01-2032973 1978-1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 A BASTIDORES: SC01-2100002-SC01-2112185 1980
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-2200038-SC01-2209987 1981
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 Z BASTIDORES: SC01-2000050-SC01-2015357 1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-2000019-SC09-2099999 1982
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-2100001-SC09-2199999 1983
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-4000012-SC01-4010949 1981
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-4000025-SC09-4099999 1982
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-4100001-SC09-4199999 1983
HONDA CBX 1000 105 CV, 77 KW 6CIL. CB1 Z BASTIDORES: CB1-2000871-CB1-2024578 1979
HONDA CX 500 E EURO SPORTS 27 CV, 20 KW 2CIL. PC06 C BASTIDORES: PC06-3000004-PC06-3099999 1982-1986
HONDA CX 500 E EURO SPORTS 50 CV, 37 KW 2CIL. PC06 C BASTIDORES: PC06-2000610-PC06-2099999 1982-1986
HONDA CX 650 E EURO 50 CV, 37 KW 2CIL. RC12 D BASTIDORES: RC12-3000002-RC12-3099999 1983
HONDA CX 650 E EURO 64 CV, 47 KW 2CIL. RC12 D BASTIDORES: RC12-2000009-RC12-2099999 1983
HONDA GL 1000 Z GOLDWING 78 CV, 57 KW 4CIL. GL2 BASTIDORES: GL2-4113174-GL2-4117645 1979
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-4021107-SC02-4021630 1980
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-4100001-SC02-4199999 1981
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-4200001-SC02-4299999 1982-1983
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-2000050-SC02-2021831 1980
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-2100001-SC02-2199999 1981
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-2200001-SC02-2299999 1982-1983
