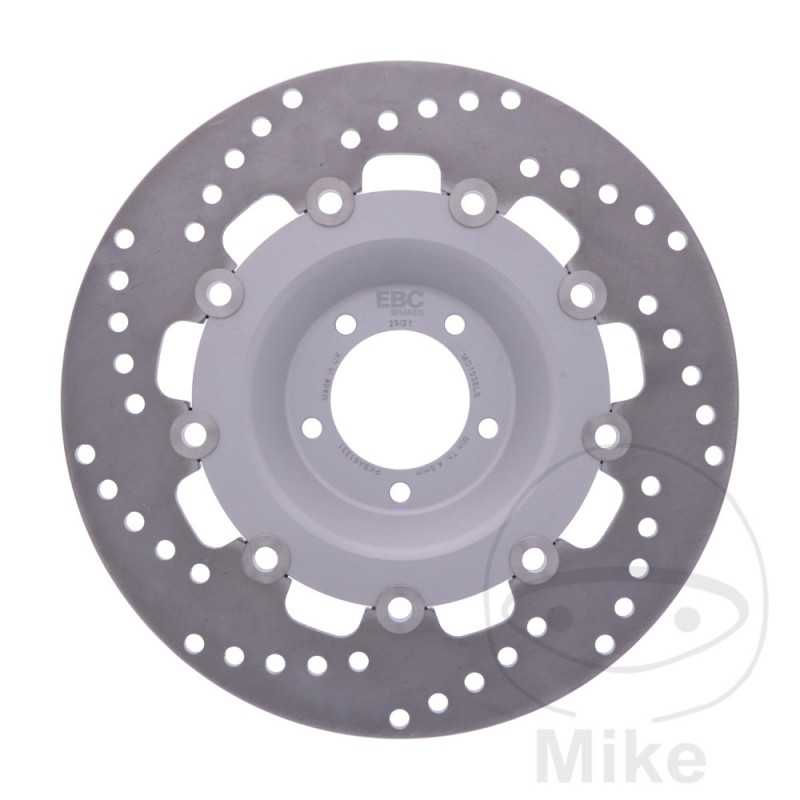

EBC Left brake disc 760.03.56
€245.50
Tax included
EBC Prolite floating brake disc, full float. MADE IN THE UK.
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- Anodized aluminum cube.
- The smallest manufacturing tolerances.
- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 26MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N A BASTIDORES: CB250N-3100001-CB250N-3199999 1980
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N B BASTIDORES: CB250N-3200002-CB250N-3299999 1981
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N BASTIDORES: CB250N-3000008-CB250N-3004407 1978-1979
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N A BASTIDORES: CB250N-2108874-CB250N-2106923 1980
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N B BASTIDORES: CB250N-2200001-CB250N-2299999 1981
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N BASTIDORES: CB250N-2005191-CB250N-2005240 1978-1979
HONDA CB 650 SC CUSTOM 50 CV, 37 KW 4CIL. RC08 C BASTIDORES: RC08-3000002-RC08-3099999 1982-1983
HONDA CB 650 SC CUSTOM 63 CV, 46 KW 4CIL. RC08 C BASTIDORES: RC08-2000023-RC08-2099999 1982-1983
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 A BASTIDORES: RC01-2115751-RC01-2118618 1980
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 B BASTIDORES: RC01-2300006-RC01-2399999 1981-1982
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 Z BASTIDORES: RC01-2000121-RC01-2032973 1978-1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 A BASTIDORES: SC01-2100002-SC01-2112185 1980
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-2200038-SC01-2209987 1981
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 Z BASTIDORES: SC01-2000050-SC01-2015357 1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-2000019-SC09-2099999 1982
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-2100001-SC09-2199999 1983
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-4000012-SC01-4010949 1981
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-4000025-SC09-4099999 1982
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-4100001-SC09-4199999 1983
HONDA CBX 1000 105 CV, 77 KW 6CIL. CB1 Z BASTIDORES: CB1-2000871-CB1-2024578 1979
HONDA CX 500 E EURO SPORTS 27 CV, 20 KW 2CIL. PC06 C BASTIDORES: PC06-3000004-PC06-3099999 1982-1986
HONDA CX 500 E EURO SPORTS 50 CV, 37 KW 2CIL. PC06 C BASTIDORES: PC06-2000610-PC06-2099999 1982-1986
HONDA CX 650 E EURO 50 CV, 37 KW 2CIL. RC12 D BASTIDORES: RC12-3000002-RC12-3099999 1983
HONDA CX 650 E EURO 64 CV, 47 KW 2CIL. RC12 D BASTIDORES: RC12-2000009-RC12-2099999 1983
HONDA GL 1000 Z GOLDWING 78 CV, 57 KW 4CIL. GL2 BASTIDORES: GL2-4113174-GL2-4117645 1979
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-4021107-SC02-4021630 1980
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-4100001-SC02-4199999 1981
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-4200001-SC02-4299999 1982-1983
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-2000050-SC02-2021831 1980
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-2100001-SC02-2199999 1981
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-2200001-SC02-2299999 1982-1983
The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
- Brake ring milled from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even with the highest load.
- There is no glazing of the braking surface, so the coefficient of friction remains constant.
- Braking surface drilled with an optimized hole pattern.
- Galvanized to protect it from corrosion.
- Anodized aluminum cube.
- The smallest manufacturing tolerances.
- Independent design.
OUTER DIAMETER: 276MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 78 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
PADDING: 26MM
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N A BASTIDORES: CB250N-3100001-CB250N-3199999 1980
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N B BASTIDORES: CB250N-3200002-CB250N-3299999 1981
HONDA CB 250 N EURO 17 CV, 13 KW 2CIL. CB250N BASTIDORES: CB250N-3000008-CB250N-3004407 1978-1979
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N A BASTIDORES: CB250N-2108874-CB250N-2106923 1980
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N B BASTIDORES: CB250N-2200001-CB250N-2299999 1981
HONDA CB 250 N EURO 27 CV, 20 KW 2CIL. CB250N BASTIDORES: CB250N-2005191-CB250N-2005240 1978-1979
HONDA CB 650 SC CUSTOM 50 CV, 37 KW 4CIL. RC08 C BASTIDORES: RC08-3000002-RC08-3099999 1982-1983
HONDA CB 650 SC CUSTOM 63 CV, 46 KW 4CIL. RC08 C BASTIDORES: RC08-2000023-RC08-2099999 1982-1983
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 A BASTIDORES: RC01-2115751-RC01-2118618 1980
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 B BASTIDORES: RC01-2300006-RC01-2399999 1981-1982
HONDA CB 750 K 77 CV, 57 KW 4CIL. RC01 Z BASTIDORES: RC01-2000121-RC01-2032973 1978-1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 A BASTIDORES: SC01-2100002-SC01-2112185 1980
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-2200038-SC01-2209987 1981
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC01 Z BASTIDORES: SC01-2000050-SC01-2015357 1979
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-2000019-SC09-2099999 1982
HONDA CB 900 F BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-2100001-SC09-2199999 1983
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC01 B BASTIDORES: SC01-4000012-SC01-4010949 1981
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 C BASTIDORES: SC09-4000025-SC09-4099999 1982
HONDA CB 900 F2 BOL D´OR 95 CV, 70 KW 4CIL. SC09 D BASTIDORES: SC09-4100001-SC09-4199999 1983
HONDA CBX 1000 105 CV, 77 KW 6CIL. CB1 Z BASTIDORES: CB1-2000871-CB1-2024578 1979
HONDA CX 500 E EURO SPORTS 27 CV, 20 KW 2CIL. PC06 C BASTIDORES: PC06-3000004-PC06-3099999 1982-1986
HONDA CX 500 E EURO SPORTS 50 CV, 37 KW 2CIL. PC06 C BASTIDORES: PC06-2000610-PC06-2099999 1982-1986
HONDA CX 650 E EURO 50 CV, 37 KW 2CIL. RC12 D BASTIDORES: RC12-3000002-RC12-3099999 1983
HONDA CX 650 E EURO 64 CV, 47 KW 2CIL. RC12 D BASTIDORES: RC12-2000009-RC12-2099999 1983
HONDA GL 1000 Z GOLDWING 78 CV, 57 KW 4CIL. GL2 BASTIDORES: GL2-4113174-GL2-4117645 1979
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-4021107-SC02-4021630 1980
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-4100001-SC02-4199999 1981
HONDA GL 1100 D GOLDWING CARENADO 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-4200001-SC02-4299999 1982-1983
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 A BASTIDORES: SC02-2000050-SC02-2021831 1980
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 B BASTIDORES: SC02-2100001-SC02-2199999 1981
HONDA GL 1100 GOLDWING 83 CV, 61 KW 4CIL. SC02 C BASTIDORES: SC02-2200001-SC02-2299999 1982-1983
760.03.56
10 Items
Data sheet
- INSIDE DIAMETER
- 78MM
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 5
- STUFFED
- 26 MM
- EXTERNAL DIAMETER
- 276 MM
- CIRCLE MEASUREMENT
- 78MM
- HOLE DIAMETER
- 8.5 MM
- THICKNESS
- 5 MM
