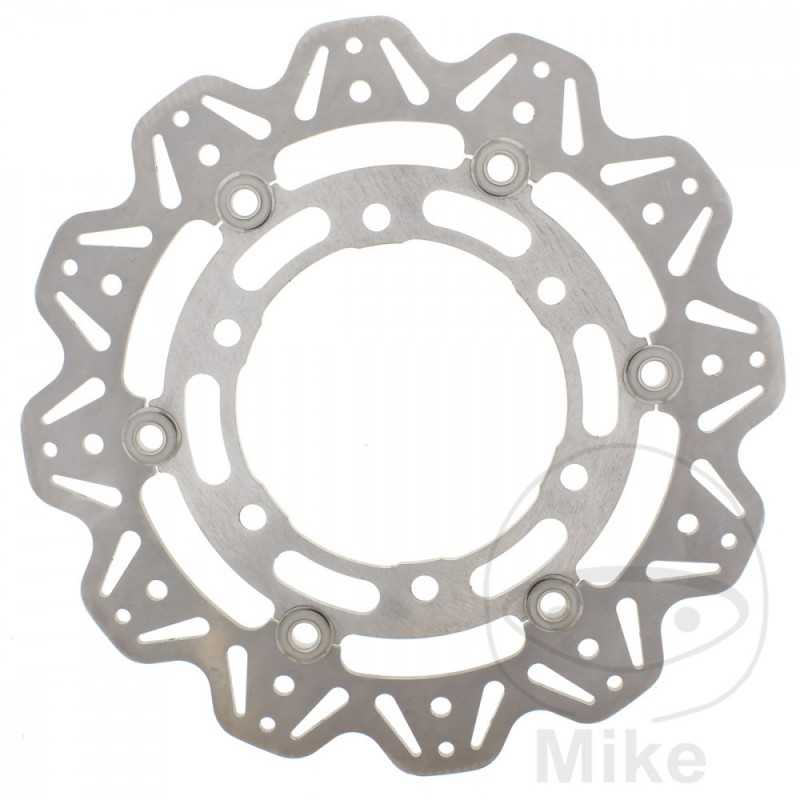

EBC Stainless steel brake disc for motorcycle EXTREME CX 760.03.46

EBC CX Series - floating brake disc for motocross.

The material used for the new CX brake discs is completely stainless steel, heat treated with a higher friction effect.

With the improvement of the friction effect, the braking power is further increased.

The design provides a great look for various motocross models. The so-called "V-notches" in the brake disc profile are for the purpose of self-cleaning the brake disc.

The goal is also to save weight. The fewer holes there are, the better the performance of the brakes in the wet and the less wear on the brake disc.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SE 44 CV, 32 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B T BASTIDORES: SP46B henceforth00500001-SP46B henceforth00501710 1996
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B V BASTIDORES: SP46B henceforth00501711-SP46B henceforth00502735 1997
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B W BASTIDORES: SP46B henceforth00502736-SP46B henceforth00503488 1998
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B X BASTIDORES: SP46B henceforth00503489-SP46B henceforth00503800 1999
SUZUKI DR 650 SEU 34 CV, 25 KW 1CIL. SP46B Y BASTIDORES: SP46B henceforth00503801-- 2000
